Summary of Contents for Unigreen Campo 11

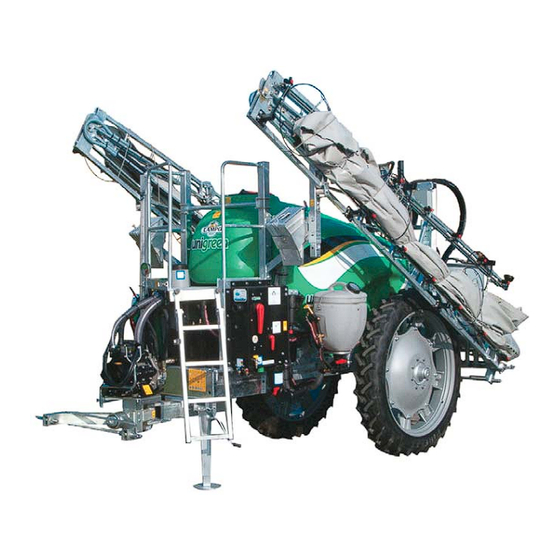

- Page 1 USE AND MAINTENANCE MANUAL HERBICIDE SPRAYERS TRACTOR-MOUNTED SPRAYERS CAMPO 11 - 16 - 22 - 32 CALIPSO 11 - 16 - 22 - 32 DSP 11 - 16 - 22 - 32 Read this manual carefully before use Color code...
-
Page 2: Table Of Contents
PREMIXER ON COVER (OPTIONAL): ... 16 4.12.3 PREMIXER ON HOPPER WITH TIN WASHER (OPTIONAL) ... 17 4.12.4 TOP-MIX PREMIXER FOR CAMPO 11-16-22E (OPTIONAL) ... 18 4.12.5 TOP-MIX CALIBRATED NOZZLE FOR CAMPO 11-16-22E ... 18 4.12.6 HOW TO USE THE LP83 INCORPORATOR ... 18 4.13... - Page 3 CHARACTERISTICS NOZZLES CONICAL ISO ... 29 TAB.3-4 CAPACITY HAND LANCES ... 30 TAB.5-6 SPRAYING TABLES ... 31 TABLE 8 PROBLEMS, CAUSES AND SOLUTIONS ... 32 TABLE 7 TABLE OF PROGRAMMED MAINTENANCE ... 32 TAB.12A ALLOWED FITTINGS ... 33 TAB.12B ALLOWED FITTINGS ... 34 unigreen...
-
Page 4: Using And Keeping The Use And Maintenance Manual
UNIGREEN guarantee covers the repair or replacement of parts considered manufacturing flaws, according to the unquestionable judgement of UNIGREEN, only after the authorised agent for that zone has verified the fault. Ambit of the guarantee The guarantee doesn’t cover cases of normal wear, negligent use, poor maintenance and/or improper use. -
Page 5: Safety Regulations And Residual Risks
It is obligatory to keep all the plates with danger and safety signs in perfect conditions. If they get damaged or deteriorate, replace them in good time. Replace parts believed to be faulty with others indicated by UNIGREEN. NEVER try makeshift or hazardous solutions. -
Page 6: Intended Use
Unigreen and in any case changing some of the parts described in the handbooks of the regulator, such as the manometer (stainless steel), the nozzles (large diameter ceramic) and eliminating the fine mesh filters to prevent blockages. -
Page 7: Taking Precautions Against Fire Hazards
Please contact the agent in your zone, the nearest authorised workshop or UNIGREEN S.p.A. directly for any repairs the user feels they aren’t capable of performing alone. (see point 8.5) c) Due to the complexity of the equipment and the variety of technologies used (mechanical, hydraulic, oil-pressure and electrotechnical) operators must not dismantle or modify the equipment. -
Page 8: Noise Level Of The Machine
The accessories that can be used to complete the sprayer include: lifting devices, self-levelling devices, mechanical or hydraulic herbicide booms, jets and nozzles and this makes the UNIGREEN sprayer a highly qualified and efficient piece of equipment. 4.1.1 WORK STATIONS... -
Page 9: Hand Washing Tanks
When you receive the machine, check that it is complete and no parts are missing. If there are any damaged parts, inform your local reseller or UNIGREEN directly in good time. When the machine is delivered, make sure you ask: a) that the machine is delivered with all of its parts fitted and that the fitting meets the requisites in table N°... -
Page 10: Towed Sprayers
Tractor coupling for homologated Towed machines in work position (not suitable for road use). 10 unigreen 4.3.1 TOWED SPRAYERS PARKING Don’t stand the sprayers on unstable ground or steep slopes, the machine is designed to be parked safely on compact ground with a slope of up to 8.5°... -
Page 11: Hook Version (Homologated)
To adjust the spacing, just loosen the screws holding the axle and pull the hub out to the desired position, then secure it again with the screws. WARNING: axle track should be adjusted by authorized Unigreen personnel. The length (L) of the axle section inserted in the chassis must never be less than the one indicated in the chart, and the overhang (S) must not be greater;... -
Page 12: Hydraulic Connection To The Distributors
Avoid letting the end of the cardan shaft come into contact with the ground with the machine stopped; use the relevant support on some versions for this, if your machine has no support, hook the external safety chain to a part of the frame of the machine (ex. control unit support). 12 unigreen... -
Page 13: Pump
(FIG. N° 11 - pos A). After washing the cartridge, reassemble the cover making sure you connect the same to the circuit again, using the valves described above in the opposite order. WARNING!: Don’t disperse the washing residues in the environment!! unigreen... -
Page 14: Pressure Regulator
If the tractor has a waterproof cabin the use of electrical controls is obligatory. 4.8.1 COMPONENTS OF THE PRESSURE REGULATOR Below you will find the indications for the main models fitted on Unigreen products. A main ON-OFF command: “open” lets the fluid flow into the circuit in use;... -
Page 15: Delivery Filters (Only Equipped Models)
Follow the instructions in the enclosed FIG. 6 manual. 4.10 SPRAYING COMPUTER (OPTIONAL) Scrupulously follow the instructions in the relevant manual when using. We don’t recommend using the sprayer with the computer until you have had at least one lesson from the UNIGREEN technicians. unigreen... -
Page 16: Filling The Tank
This reading is precise if the tank is on flat ground; the actual total capacity coincides with the highest number. All the filling systems fitted by Unigreen on their production machines or on request are antipollution and stop the liquid overflowing out of the tank. -
Page 17: Premixer On Hopper With Tin Washer (Optional)
6) to drain into the tank. = after washing, release lever 4 and close taps 6 and 10. NB: At the end of all of the operations put the lever of the deviator back into the work position. unigreen... -
Page 18: Top-Mix Premixer For Campo 11-16-22E (Optional)
18 unigreen 4.12.4 TOP-MIX PREMIXER FOR CAMPO 11-16-22E (OPTIONAL) The Top-Mix S41 premixer is also available for Campo 11-16-22E machines as an optional feature. Its operation is slightly different from the standard version on Campo 22-32 machines; this version of the premixer maintains an independent pressure setting, eliminating the need to change the machine’s operating calibration... -
Page 19: Washing The Sprayer
This symbol identifies the clean water tank on the machine used to wash the circuit FIG. N°11 Suction deviator Campo 22-32 Tank washing tap (BLUE) Suction deviator Campo 11-16-22E Suction and descarge deviators Campo 22-32 unigreen... -
Page 20: Horizontal Booms For Herbacious Cultivations
Tank Hydraulic pump Oil level Elettroil connection to quick-fit couplings of the tractor 20 unigreen HORIZONTAL BOOMS FOR HERBACIOUS CULTIVATIONS HYDRAULIC HERBICIDE BOOMS These are made in of steel painted with epoxy paint or hot galvanised. The jet booms are made of stainless steel with the jets mounted normally ever 50 cm. -
Page 21: Air-Assisted Booms
The angle of the arms is controlled by the operator with electrohydraulic controls. Air-assisted booms Self-levelling Self-levelling blocking system Variable geometry unigreen... -
Page 22: Lifting
AI-AIC 2 bar TXA cone 5 bar 22 unigreen LIFTING The lifting devices are very useful to adjust the height of the boom on the basis of the height of the vegetation to be treated. The height of the boom is adjusted as follows: = the hydraulic version has a double-effect cylinder controlled by a special parachute stop valve. - Page 23 To meet particular requirements UNIGREEN can supply booms with different spaces between the nozzles and setups suitable for running at pressures over 20 bar. See the table below for the data conversion. OTHER SPACING (Cm) 0,666 0,833 1,000 1,111 1,176 1,250 1,428 1,515 1,666...
-
Page 24: Marker
Marker 24 unigreen MARKER The marker indicates the zone where the treatment has been applied. It produces a chemical foam that doesn’t damage the crops, which is deposited on the ground and disappears after roughly an hour. The marker is an accessory available on request. -
Page 25: Maintenance
Dismantling the Suction Filter 8.5 REPAIRS We recommend having the normal UNIGREEN assistance service available from our reseller perform any repairs or contact a specialised workshop. During all of the repairs, in particular when welding, the machine and the circuit must be clean of any residues of chemical product. -
Page 26: Putting Back Into Service After Winter Layup
The user of the present machine can contact the collection centres instituted by the Local Authorities or the UNIGREEN Company directly, or request withdrawal by the dealer, in order to carry out correct disposal of the waste. - Page 27 unigreen...
-
Page 28: Tab.1 Characteristics Nozzles Iso
Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata Pressure Pressione 28 unigreen Pressure Pressione litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1'... -
Page 29: Tab.2 Characteristics Nozzles Conical Iso
Pressione litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata Pressure Pressione Pressure Pressione litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata litres/1' Delivery litri/1' Portata Pressure Pressione unigreen... -
Page 30: Tab.3-4 Capacity Hand Lances
TABLE OF DELIVERY IN LITRES / MIN. OF THE CONICAL NOZZLES FOR MITRA SPRAY GUN DIAMETER NOZZLE PRESSURE (BAR) direct jet direct jet direct jet direct jet TABLE. 4 direct jet 30 unigreen note: standard Ø1,5 nozzle Ø 1,0 Ø 1,2 Ø 1,5 CAPACITY ( Lt / min ) cone 1,16 1,40... -
Page 31: Tab.5-6 Spraying Tables
150 120 100 10,0 TABLE 5 WORK TIME (Min) LITRES/HECTARE 1000 100 1200 120 1400 140 1600 160 106 1800 180 120 2000 200 134 100 2200 220 150 110 2500 250 170 125 100 TABLE 6 MINUTES/HECTARE LITRES/MINUTE unigreen... -
Page 32: Table 8 Problems, Causes And Solutions
Noisiness and the level of the oil has dropped Water in the oil No liquid comes out of the nozzles NOTE: ( * ) Only specialised technician 32 unigreen CAUSES Air suction Adjustment valve closed (Command group isn’t at zero pressure) -
Page 33: Tab.12A Allowed Fittings
TAB.12A ALLOWED FITTINGS 2009 TYPE OF TAB. 12 a MACHINE CAMPO 11 FITTING " " BP 171 PUMPS COMET " " BP 235 " " BP 280 " " BP 265 " " BP 305 " " IDS 1400 " "... -
Page 34: Tab.12B Allowed Fittings
TOTAL MASS EMPTY MAX FITINGS in Kg FULL MAX FITTINGS Max on the tow-eye FULL MAX FITTINGS P HP POWER NECESSARY 34 unigreen Fiberglass half trailed Polyethylene half trailed sprayers CAMPO-DSP 16 CAMPO-DSP 22 C CALIPSO 11 CALIPSO 16 CALIPSO 22 C-E... - Page 35 GENERATORE D'ARIA CALDA UGELLO OTTIMALE Ø 5÷6 mm Leister Kombi "TRIAC" Unigreen SpA produces a high percentege of sprayers with tanks of medium-density lInear polyethylene made by rotational moulding. Here is a list of some of the characteristics of the material:...
- Page 36 Rinaldi, 105 - 42124 Reggio Emilia - ITALY Tel. +39 0522 369811 Fax. +39 0522 369898 e-mail: info@unigreen-spa.com internet: www.unigreen-spa.com member of the group Descriptions, indicative illustrations, UNIGREEN S.P.A. reserves the right to make variations or modifications without prior warning.
