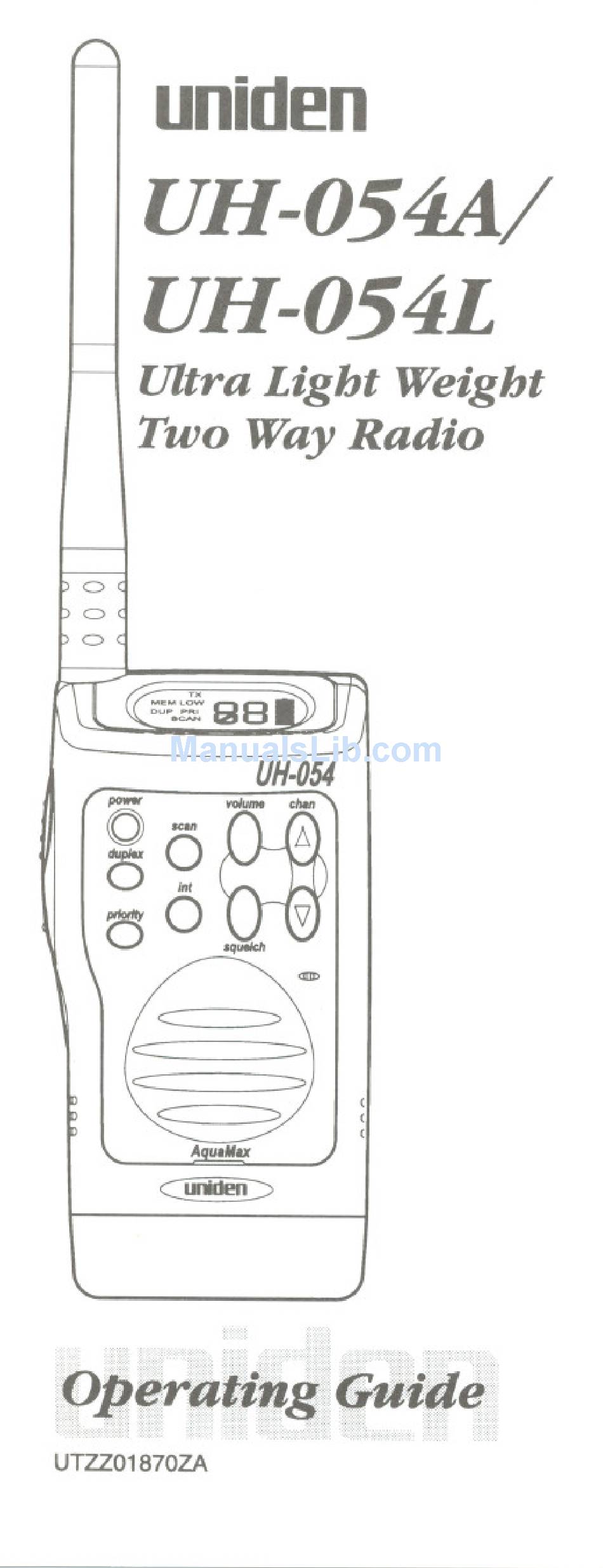

  • Page 1 unid~n UH-O54A/ UH-O54L Ultra Light Weight Two Way Radio MEM L6~ DU" ..'" .CAN power Curmlen ......1111'1~11..: UTZZO1870ZA UH.O54 volume chan ... aqU«ch -=::>...
  • Page 2 The UHO54A is waterproof o nlywhen 1& both the antenna and the battery are properly attached. The UHO54Lis a standard NON water 1& proof wearable radio only. Do notoperate thetransmitter of anyradio 1& equipment unless all the Radio Frequency (RF) connectors are secure and any open connectors are properly terminated.
  • Page 3 Controls and Indicators C> C> C> Antenna Belt Clip PTT (Push to Talk) HlilO/LOCK Key LCD Display Scan button Power button Duplex button Priority button 10 Memory button 11 Speaker 12 Volume button 13 Channel Up button ... 14 Channel Down button ...

  • Page 4: Table Of Contents

    Introduction Features Technical Support and Service. Included with Your UH-054 ..4 GettingStarted Mounting the Drop-in Charger..5 Attaching the Antenna..5 Attaching the Battery Pack..6 Charging the Battery Pack.

  • Page 5: Introduction

    Technical Support and Service Should you find it desirable or necessary to service your UH-054, we suggest you contact the Uniden dealer where your purchase was made. Your dealer will be able to assist you with complete service information. Introduction...
  • Page 6 Enclose a note describing the problem and a copy of your receipt, and send the radio transportation prepaid to: Uniden Australia pty Limited Customer Service Division 345 Princes Highway Rockdale NSW2216 Ph. (02) 9599-3355 Fax.

  • Page 7: Included With Your Uh-054

    Included with Your UH-O54 UH-O54 Charger AC Adapter Antenna Battery Wrist Strap Operating Guide Mounting Screws Product Registration Card If any of these items are missing from the box, contact your Uniden Dealer.

  • Page 8: Gettingstarted

    Getting Mounting the Drop-in Charger 1. Mount the drop-in charger to either a counter or wall. 2. Plug one end of the AC adapter into the wall outlet, and the other end into the Drop- in Charger. Attaching the Antenna Attach the antenna to the UH-O54.

  • Page 9: Attaching The Battery Pack

    Attaching the Battery Pack 1. Slide the battery pack onto the bottom of the radio. 2. Use a coin to turn the screw that connects the battery pack to the UH-054. Be sure the battery pack fits tightly against the UH- 054's body.
  • Page 10 1. Place the UH-O54 in the drop-in charger. 2. The red LED lights and stays on. The battery pack will not be overcharged by the charger even if the battery pack is not removed from the charger. Do not transmit when the UH-O54is in the drop-in charger! You can monitor incoming calls while the UH-O54 is in the drop-in charger.

  • Page 11: Operation

    When you press any key (except PTT), a 1& short tone sounds. See the front of the operating guide for 1& button and key positions. Setting the Squelch 1. To turn the unit on, press and hold the powerbutton for 1 second.
  • Page 12 and hold" Press adjust the "squelch gate" so high that no signals get through. 5. Press and hold" adjust the "squelch gate" so everything gets through - noise, weak signals, and strong signals. 6. To set the "squelch gate" to the desired level, press ..

  • Page 13: Selecting A Channel

    Selecting a Channel 1. When you turn on the UH-054, the last channel will appear on the LCD display. (e.g. CH01) 2. To select a higher channel, press"" the channel button. 3. To select a lower channel, press'" the channel button. To quickly change channels, press and hold ...

  • Page 14: Using Repeater Channels

    3. When the channel is clear, press the PTT switch to transmit. TX appears on the LCD when you transmit. Hold the radio with the microphone approximately two inches in front of your mouth with the antenna at approximately a 45-degree angle away from your head.

  • Page 15: To Operate Uh-054 In Duplex Mode

    The signal coming from your radio is received by the Repeater station and then retransmitted at the same time on another channel. This operation is called "duplexing". Your UH-054 is designed with the capability to access and use repeater stations. Channels 01 through 08 have the option to operate in Duplex Mode.

  • Page 16: Duaiwatch

    Dual Watch Dual Watch mode monitors a priority channel and the currently selected channel for a signal. The UH-O54 checks the priority channel for activity every 1.5 seconds. Selecting a Priority Channel The UH-O54 is pre- programmed with CHO1 as the priority channel.

  • Page 17: Scan

    While in Dual Watch Mode, you can use the.. or T to change to a new selected channel while monitoring the priority channel. To cancel dual watch, momentarily press priority button or the PTT. Scan Your UH-O54 has a scanning feature that .allows you to search for active channels automatically.
  • Page 18 Start memory scanning (as de- scribed on the pre- vious section) then momentarily press the priority button. - or - . While dual watch- ing, press the scan button. Deleting and Storing Channels in the Scan Memory You may have certain channels that you do not want to hear every time you scan.

  • Page 19: Dropoutdelay

    2. Then press and hold the mem button. You will hear a single-confirmation tone and MEM icon appears on the display. Drop Out delay While scanning, the UH-O54 stops at a busy channel and receives a transmission. When the received signal is over, the unit will wait for three seconds for the return of the signal, otherwise the radio resumes scanning.

  • Page 20: Battery Level Detection

    Battery Level Detection 1. At Power On, the level indicator is always the current battery level when not in Squelch or Volume Adjust Mode. 2. The battery level indicator indicates the current battery voltage level. (Min) Level - -+B Blinks--<".:> 3.

  • Page 21: Uhfcb Channel Information

    UHFCB Channel Information This radio has been designed to provide a high level of performance in the Citizens Band Radio Service, which is comprised of the following frequency assignments; SIMPLEX Operating Channel Mode Channel Frequency in MHz 476.425 476.450 476.475 476.500 476.525 476.550...

  • Page 22: Duplex Operating Mode

    DUPLEX Operating Mode Channel Assignment Receive Frequency(MHz) 476.425 476.450 476.475 476.500 476.525 476.550 476.575 476.600 Transmit Frequency(MHz) 477.175(CH31) 477.200(CH32) 477.225(CH33) 477.250(CH34) 477.275(CH35) 477.300 (CH36) 477.325(CH37) 477.350(CH38)

  • Page 23: Parts And Accessories

    Parts and Accessories Antenna Standard Battery Pack BP940 Wrist Strap Operating Guide AC Adapter Drop-in Charger HH9485 Cigarette High Capacity Adapter Battery Pack HH9804 BP054...
  • Page 24 S~ecifications General Channels Transmit Receive Freq. Control Freq.Tol. Transmit Receive Oper. Temp. Antenna Microphone Display Speaker Power Source Size (without antenna) Weight (with & antenna) Water Proof (UH-O54 AquaMax Standard Depth & Duration Water Inpact Resistance 72 kph (max) Temperature Shock Transmitter Frequency Range Frequency Stability...

  • Page 25: Specifications

    Hum & Noise Ratio Audio Output Power Current Drain Squelched Max.Audio Charger Input Voltage Std. Power Supply Specifications shown are typical and subject to change without notice. 45 dB 0.6 W @10% THD 45mA 280 mA 12 V DC AAD-050S N/13809 Input=230-240V AC,50Hz Output= 9 V DC,210 mA...

  • Page 26: Warranty

    (B) modified, altered, or used as part of any conversion kits, subassemblies, sold by Uniden, (C) improperly installed, (D) Repaired someone other than an authorized a defect or malfunction conjunction with any equipment or parts or as part of a...
  • Page 27 @1997 Uniden Australia Pty Ud. All Rights Reserved. Printed in the Philippines...
