Uniden GRANT Owner's Manual

40channel am/ssb mobile cb radio
Hide thumbs Also See for GRANT:
Table of Contents

Advertisement

Quick Links

uniden@
GRANT
40 Channel
AM/SSB
Mobile CB Radio
OWNERS MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Uniden GRANT

Summary of Contents for Uniden GRANT

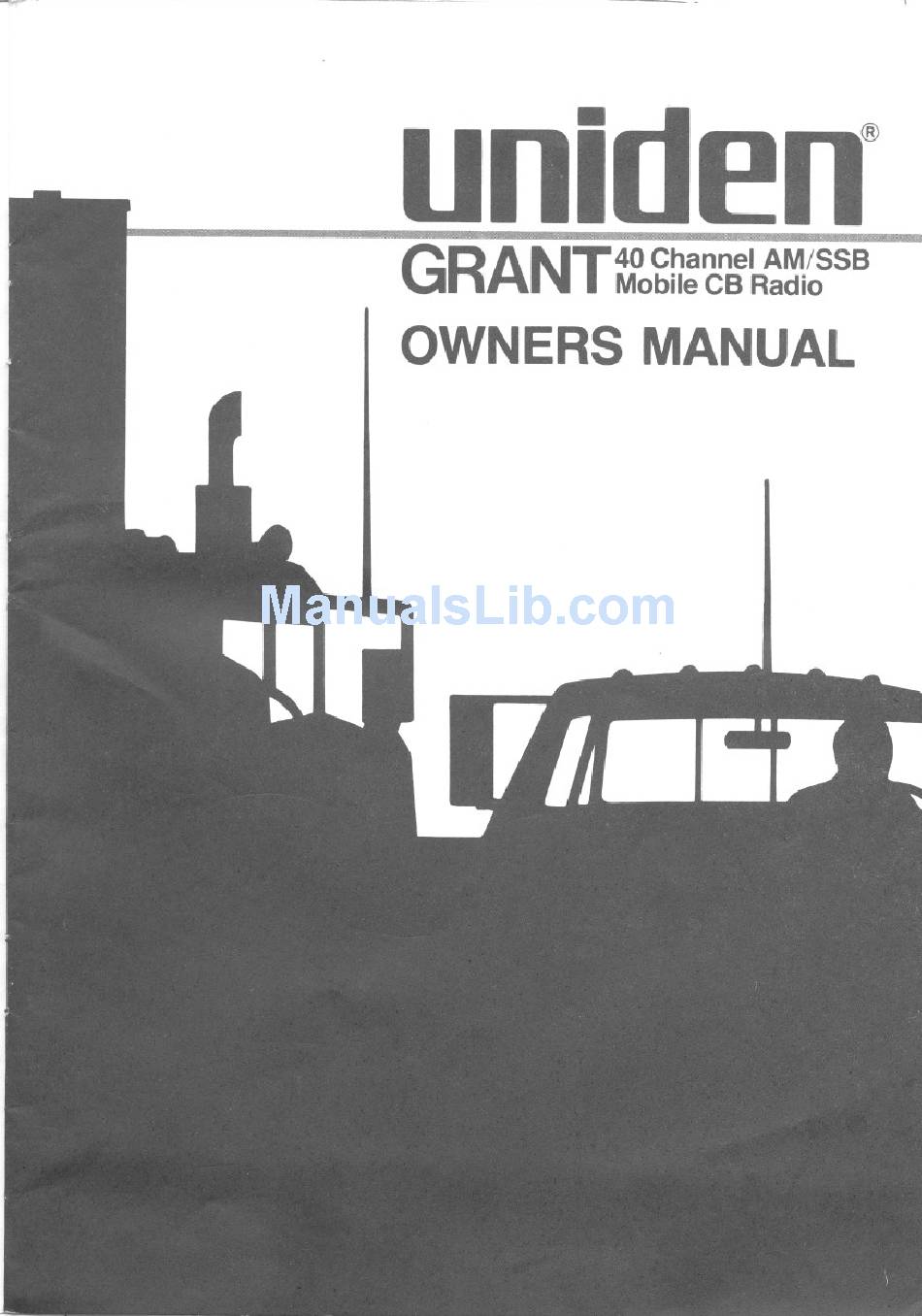

  • Page 1 40 Channel GRANT AM/SSB Mobile CB Radio OWNERS MANUAL...

  • Page 2: Elimination Of Licensing

    UNIDEN CORPORATION OF AMERICA modern styling with the very latest state-of-art circuitry to bring you the GRANT Citizens Band Trasoceiver. performance and reliability. Your GRANT is completely factory aligned and quality assurance tested. To obtain the maximum benefit and pleasure from your GRANT, please read very carefully the contents of this manual before attempting to install or operate the transceiver.

  • Page 3: Installation

    Only a properly matched antenna system will allow maximum power transfer from the 50-ohm transmission line to the radiating element. Your UNIDEN dealer is qualified to assist you in the selection of the proper antenna to meet your applica- tion requirements.

  • Page 4: Power Cord Connection

    POWER CORD CONNECTION: If you are operating on a positive ground system, connect the black DC power cord from the transceiver to the negative, or (-), battery terminal or other convenient point, and connect the red power lead to the chassis or vehicle frame, or (+) battery terminal.

  • Page 5: Operating Procedure

    OPERATING PROCEDURE TO RECEIVE: The G RANT operates on 40 AM channels, 40 Upper Side Band channels and 40 Lower Side Band channels. When you receive the SSB signal in the proper mode (USB or LSB), audio sound may be either too high pitched or Iow pitched, indicating that your receiver may not be tuned to the exact same frequency as the transmitter to which it is listening.
  • Page 6 4. MODE SELECTOR: This switch selects AM, USB, or LSB mode of operation. This selector changes the mode of operation of both transmitter and receiver simultaneously. Set the selector to the mode on which you wish to com- municate. FUNCTIONS NB/ANL BRITE (jJ) Full counterclockwise GRANT allowing some back- rotation of the...
  • Page 7 5. MIC GAIN: This control sensitivity for optimum amount of modulation in transmit. UNIDEN CORPO- RATION OF AMERICA citizen's band transceivers have been designed to permit the user to attain levels of modulation up to 100% depending on the setting of...
  • Page 8 13. CHANNEL INDICATOR: Light Emitting Diode(LED) indicates the channel number in use. 14. CHANNEL SELECTOR transmission and reception. All channels, except channel 9, may be used for communications between stations. Channel 9 has been reserved by the F.C.C. for emergency communications immediate protection assistance to a motorist.
  • Page 9 19. EXTERNAL SPEAKER JACK: The External Speaker Jack is used for remote receiver monitoring. The external speaker should have 8 ohm impedance and be rated to handle at least 4.0 watts. When the external speaker is plugged in, the internal speaker is automatically disconnected. 20.

  • Page 10: Specifications

    GENERAL F.C.C. Type Number Channels Frequency Range Frequency Control Frequency Tolerance Frequency Stability Operating Temperature Range Microphone Input Voltage Current Drain Cabinet Dimensions Weight Antenna Connector Semiconductors Meter Indicators TRANSMITTER Power Output Modulation Intermodulation Distortion SSB Carrier Suppression Unwanted Sideband SPECIFICATIONS 1005002 40AM, 40LSB, 40USB...
  • Page 11 Frequency Response Output Impedance SSB Filter RECEIVER Sensitivity Selectivity Cross Modulation Image Rejection I.F. Frequency AM and SSB RF Gain Control Automatic Gain Control Squelch Noise Blanker Clarifier Range Audio Output Power Frequency Response Distortion Built-in Speaker External Speaker (Not Supplied) PA SYSTEM Power Output External Speaker for PA...

  • Page 12: Servicing Your Transceiver

    SERVICING YOUR TRANSCEIVER The technical information, the user's responsibility to see that this radio is operating at all times in accordance with the F.C.C. Citizens Radio Service regulations. We highly recommend that you consult a qualified radiotelephone technician for the servicing and alignment of this CB radio product.

  • Page 13: Operator Troubleshooting

    OPERATOR TROUBLESHOOTING Should be unit malfunction or not perform properly, the operator should perform the procedures il.dicated below: 1. If the transceiver is completely inoperative. * Check the power cord and fuse. 2. If trouble is experienced with receiving. ON/OFF VOLUMECONTROLsetting. * Check * Be sure SQUELCH is adjusted properly.
  • Page 14 -==::: NOTES...
  • Page 15 NOTES...
  • Page 16 .c.- ""., ~--------------------------------------------------------------------------- TR' ZSCI615L TRZZ$CI615LTR! ZSCI13OL 1ROZSC94- TR5ZSC94- TR6ZSC90SAQ TRT 2SA"3PTReZSC94SAO CIRCUIT DIAGR~M FOR GRANT TR9ZSCl615L F ET 1 !S"SB TRIO ZSC.OSAO ---- -- --- ----- -- __-;;;..; ~~~fi] t:-"lil ,'.' ,. ""'TAo<' "LUES U""" OTH""'" "'",,0 OH.. , RE""OR .ATT..ES...
  • Page 17 DIMMER - -- d'-°~ BLOCK DIAGRAM FOR GRANT ~--- ~'" -+-_.J ---~ DC 13.8V '" ~-t: ..., Printed in Taiwan...
  • Page 18 CORPORATION OF AMERICA Personal Communications 4700 Amon Carter Boulevard Fort Worth, Texas 76155 @1983 Uniden Corporation of America ("UNIDEN") of this warranty, its UNIDEN CB with only the limitation or exclusions and be of no further effect Two (2) years installed,...
