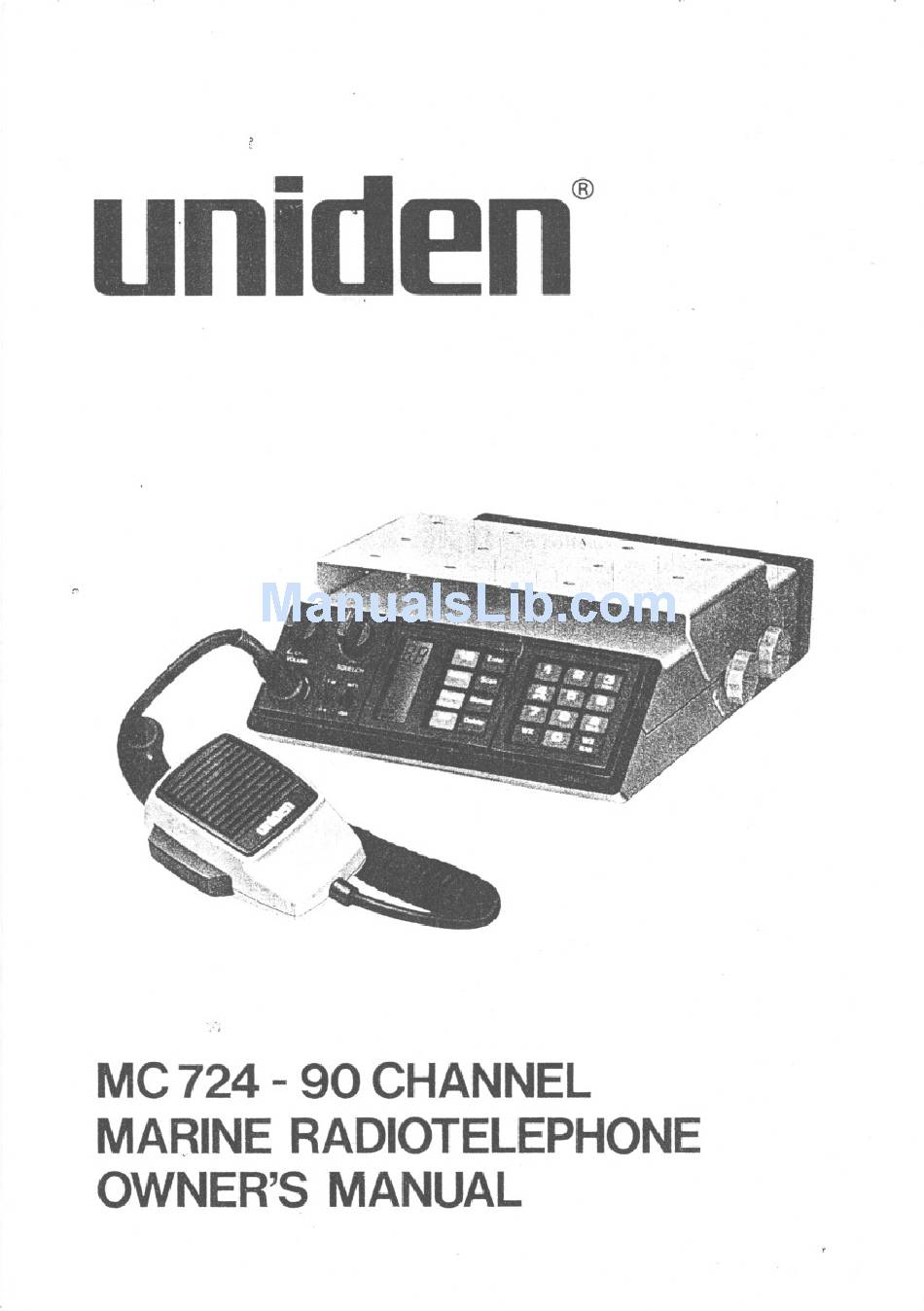

- Page 1 .} , ,.,\ '~/" ",/" ",If :~),'f~" ,~,~_/.. " MC 724 90 CHANNEL MARINE RADIOTELEPHONE OWNER'S MANUAL...
- Page 2 The UNIDEN MC 724 VHF marine radio transceiver has been designed to give you a :-ugged reliable instrument You are encouraged to thoroughly characteristics and operation :ongevity of your investment. \'Vith proper care and maintenance, vessel and serve you well on board .Jesigned into this quality transceiver will...
-
Page 3: Installation
MOUNTING CONSIDERATIONS Keep in mind the flexibility designed into the MC 724 so that you can most con- veniently use your radio. The points which should be considered are: 1. Universal mount,ing bracket may be installed on either top or bottom for shelf bulkhead, or overhead mounting. -
Page 4: Actual Installation
3. The front panel can be fully reversed to provide for optimum viewing area, operat- ing for any mounting position. (See page 7 ). 4. The EXTERNAL speaker jack may be used with an auxiliary speaker in lieu of the built-in speaker. -
Page 5: Front Panel Controls And Lcd Display
3. HAIL CONNECTOR--The speaker used for the hail function is plugged into this jack. The speaker may be either four or eight ohms impedance and should be suitable for the environment in which it is located. The plug must be a miniature phone plug. - Page 6 12. SCAN FEA TURE--Any number of Marine channels can be scanned by the MC 724. First they must be entered into the memory using the "ENTER" key. To do this, first select a channel using the channel selector and then push "ENTER."...
- Page 7 be scanned for activity at the rate of about 9 channels per second. When will conversation is found, the scanner stops ar1d the message is received scanning is resumed. Note that if "SCAN" is pushed and no channels are in memory, "0"...
- Page 8 REVERSING THE FRONT PANEL (7) TI LT FRONT PANEL. (8) REPLACE FOUR SCREWS TO SECURE FRONT PANEL TO CHASSIS. (3) REMOVE SPEAKER CABINET 121REMOVE FOUR SCREWS FROM SPEAKER CABINET CAREFULLY REPLACE COVER CABINET ON BOTTOM OF RADIO. INSERT UNDER FRONT PANEL (10) TURN RADIO OVER AND RECONNECT...
-
Page 9: Specifications
GENERAL Channels : Transmit-55, Frequency Control Method : PlL synehtsizer and microprocessor Antenna Impedance : 50 ohms, nominal : 2.85 inch, 8 ohms Speaker (Internal) Microphone : Rugged 600 ohm dynamic element with coiled cord and plug-in connector Channel Display : LCD alpha numeric readout. - Page 10 VHF FM MARINE RADIOTELEPHONE CHANNELS AND FUNCTIONS (INTERNATIONAL CHANNEL) CHANNEL FREQUENCY(MHz) DESIG SHIP SHORE 162.550 162.400 162.475 162.425 162.450 162.500 162.525 161.650 161.775 156.050 160.650 156.100' 160.700 160.750 156.150 156.200 160.800 156.250 160.850 156.300 156.300 156.350 160.950 156.400 156.400 156.450 156.450 156.500 J..Q.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Your MC 724 is a precision piece of electronic equipment and you should treat it accordingly. Due to the rugged design, very little maintenance is required, however, a few precautions should be observed. If your radio has been accidentally subjected to spray or splash, you should .im- mediately wipe it down with a soft cloth dampened with fresh water. - Page 12 PTY. l TO. 13 GAREMA CIRCUIT, KINGSGROVE PHONE 758 1522, TELEX AA73170 P.0. Box 12, Kingsgrove, NSW 2208 BRISBANE: 3/12 RANDALL ST SLACKS CREEK, QLD 4127 PHONE 07 290 1188 1984 Uniden Corporation Garema Circuit, of this defects in materials effect...
