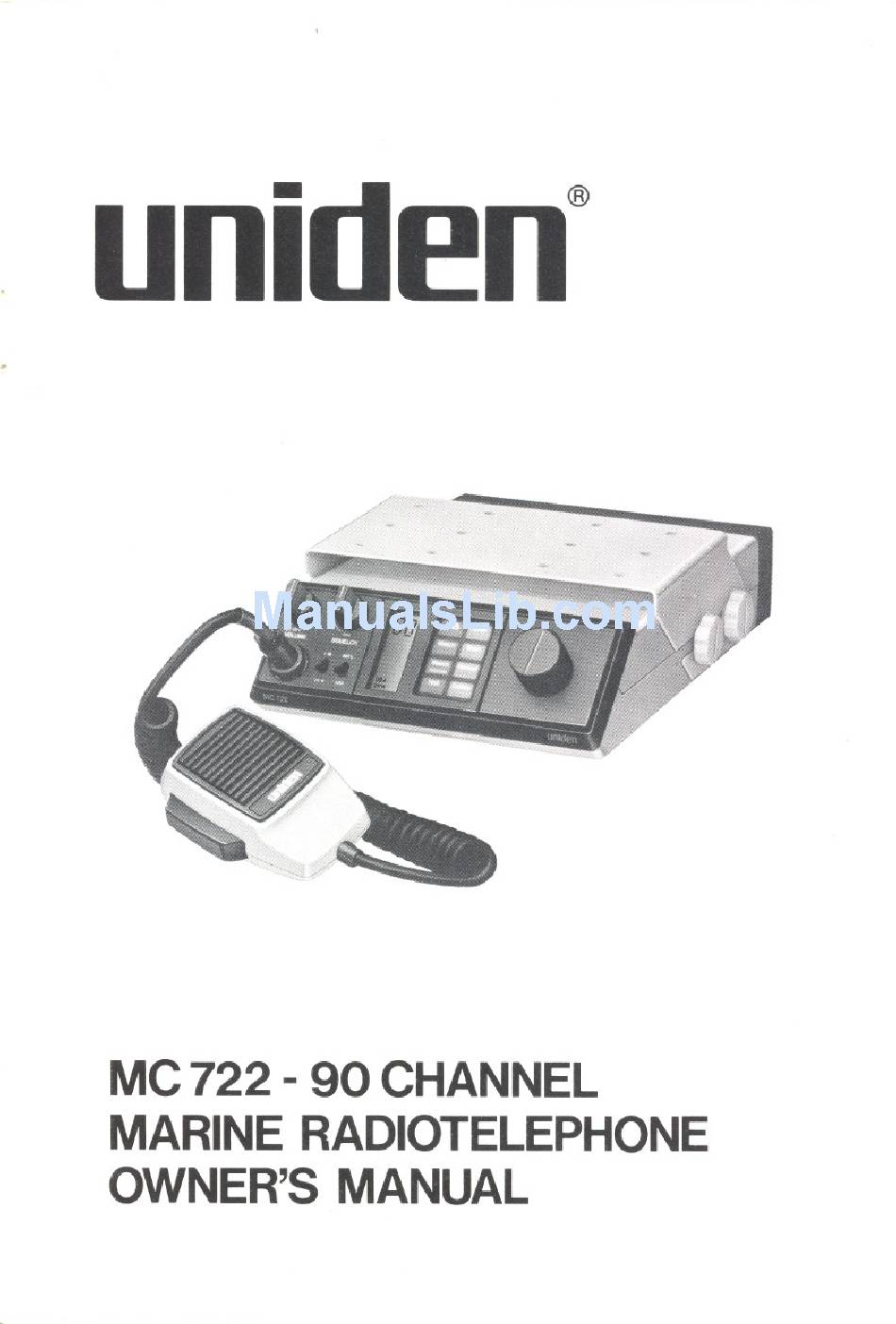

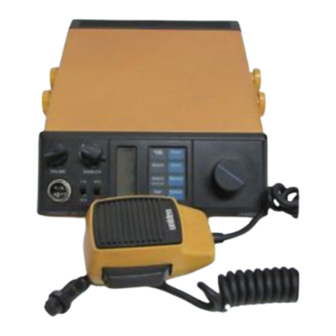

- Page 1 MC 722 90 CHANNEL MARINE RADIOTELEPHONE OWNER'S MANUAL...
- Page 2 The UNIDEN MC 722 VHF marine radio transceiver has been designed to give you a rugged reliable instrument You are encouraged to thoroughly characteristics and operation longevity of your investment. With proper care and maintenance, your UNIDEN vessel and serve you well on board several more. The full features and flexibility...
-
Page 3: Installation
MOUNTING CONSIDERATIONS Keep in mind the flexibility designed into the MC 722 so that you can most con- veniently use your radio. The points which should be considered are: 1. Universal mounting bracket may be installed on either top or bottom for shelf bulkhead, or overhead mounting. -
Page 4: Actual Installation
3. The front panel can be fully reversed to provide for optimum viewing area, operat- ing for any mounting position. 4. The EXTERNAL speaker jack may be used with an auxiliary speaker in lieu of the built-in speaker. 5. All connections are "plug-in" type for easy removal of the radio. ACTUAL INSTAllATION After carefully considering the various factors affecting choice of location, position the radio (with bracket, microphone,... -
Page 5: Front Panel Controls And Lcd Display
3. HAIL CONNECTOR--The speaker used for the hail function is plugged into this jack. The speaker may be either four or eight ohms impedance and should be suitable for the environment in which it is located. The plug must be a miniature phone plug. - Page 6 REVERSING THE FRONT PANEL (7) TI LT FRONT PANEL. (8) REPLACE FOUR SCREWS TO SECURE FRONT PANEL TO CHASSIS. (3) REMOVE SPEAKER CABINET (21 REMOVE FOUR SCREWS FROM SPEAKER CABINET (9) CAREFULLY REPLACE COVER CABINET ON BOTTOM OF RADIO. INSERT UNDER FRONT PANEL FIRST AND THEN LOWER AT REAR OF RADIO. (10) TURN RADIO OVER AND RECONNECT SPEAKER WIRE LEADS.
- Page 7 GENERAL Channels : Transmit-55, : PLL synthesizer and microprocessor Frequency Control Method : 50 ohms, nominal Antenna Impedance : 2.85 inch, 8 ohms Speaker (Internal) : Rugged 600 ohm dynamic element with coiled cord and plug-in Microphone connector Channel Display : LCD alpha numeric readout.
- Page 8 VHF FM MARINE RADIOTELEPHONE CHANNELS AND FUNCTIONS (INTERNATIONAL CHANNEL) FREOUENCY(MHz) CHANNEL DESIG SHIP 156.050 156.100 156.150 156.200 156.250 156.300 156.350 156.400 156.450 156.500 156.550 156.600 156.650 156.700 156.750 156.800 156.850 156.900 156.950 157.000 157.050 157.100 157.150 157.200 157.250 157.300 157.350 157.400 156.025 156.075...
-
Page 9: Care And Maintenance
You are responsible for the continued are urged to arrange for periodic Marine Dealer. Should you find it desirable or necessary to have service performed on your MC 722, you are urged to contact the UNIDEN He, or any other... - Page 10 AGENCIES PTY. LTO. 13 GAREMA CIRCUIT, KINGSGROVE PHONE 758 1522, TELEX AA73170 P.O. Box 12, Kingsgrove, NSW 2208 BRISBANE: 3/12 RANDALL ST SLACKS CREEK, OLD 4127 PHONE 072901188 1984 Uniden Corporation Garema Circuit, defects in materials and be of no further effect...
