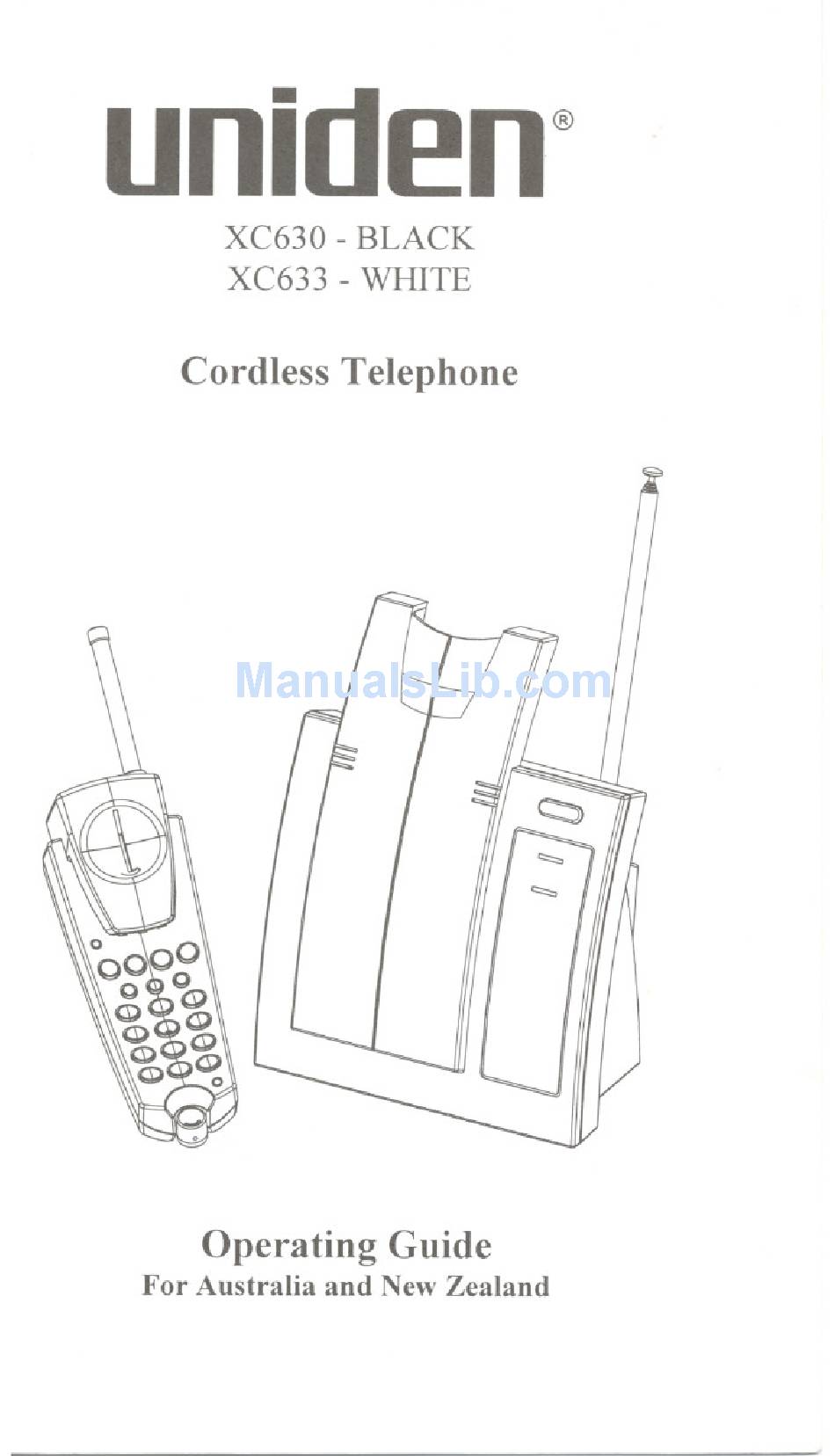

- Page 1 - BLACK XC630 XC633 - WHITE Cordless Telephone Operating Guide For Australia and New Zealand...
- Page 3 PRECAUTIONS Before you read anything else, Please observe the following: rniden Corporation DOES NOT represent this unit to be raterproof. To reduce the risk of fire, electrical shock, or amage to the unit, DO NOT expose this unit to rain or 10isture.
-
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ABOUTYOURCORDLESS TELEPHONE UNPACKING X C630/633 FEA TURES ROLLINGDIGITALCODE SECURITY BASE UNIT CONTROLS HANDSET CONTROL & FUNCTIONS READ THIS BEFORE INSTALLATION OVERVIEW IMPORTANT INFORMATION INSTALLING YOUR CORDLESS TELEPHONE SELECTINGTHE INSTALLATION LOCATION CONNECTINGTHE TELEPHONELiNE INSTALLING THE TELEPHONEON A DESK OR TABLETOP MOUNTINGTHE TELEPHONEON A WALL INSTALLING THE BATTERYPACK CHARGINGTHE BATTERYPACK... -
Page 5: Important Safety Instructions
Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. - Page 6 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power supply cord is damaged or frayed. If liquid has been spilled into the product. If the product has been exposed to rain or water. D.
-
Page 7: Aboutyourcordless Telephone
Cord less Telephone Congratulations on your purchase of this Uniden XC630/633 Cordless Telephone. The XC630/633 is designed and engineered to exact standards for reliability, long life, and outstanding performance. To get the most from your please read this Operating Guide thoroughly. -
Page 8: C630/633 Fea Tures
XC630/633 Features UltraClear Plus noise reduction provides the best quality sound of a cordless telephone 2530/39 MHz Channels (NZ) or 1030/39 MHz Channels (AUS) 10 Number Memory Maximum Operating Range 1 way paging Redial and Flash Auto Standby Tone/Pulse Dialing (Australian models Only) -
Page 9: Base Unit Controls & Functions
Base Unit Controls & Functions BASE ANTENNA 9VDC INPUT JACK TEL LINE TONE/PULSE Use to select either Tone Dialing or Pulse Dialing. Switch (Functional on Australian Models only) TEL LINE Jack Plug a standard telephone line cord into this jack and the other end of the cord into the standard telephone socket. -
Page 10: Handset Control & Functions
Handset Control & Functions 1. TALK INDICATOR 2. FLASH 3.TALK 4. VOLUM 5. 12 DIAL BUTTONS Handset Telescopic Antenna Antenna LOW BA TT The red LED blinks when the Battery Pack is low and Indicator needs to be recharged. TALK Button Press to place or answer a call. - Page 11 FLASH Button When making a call, press to send a timed "hook-t1ash" on the telephone line for accessing services such as call waiting, etc. CHANNEL Use to select 1 of the 25 (NZ) or 10 (AUS) channels for Button the clearest operation. (Note: Operates only when the phone is in use).
-
Page 12: Read This Before Installation
Read This before Installation We have designed your telephone to conform to Australia or New Zealand Radio Frequency regulations, and you can connect it to most telephone lines. However, each device that you connect draws power from the phone line. We refer to the power drawn as the device's Ringer Equivalence Number or RN. -
Page 13: Overview
Forclearestreception: Plug your XC630/633 base unit into AC power outlet that is not on the same circuit as one used by radio, hi-fi, television, or computer equipment. Do not install the base unit close to electronic equipment such as microwaves, TVs, computers, answering machines or baby monitors. -
Page 14: Installing Your Cordless Telephone
Selecting the Installation Select a location for the XC630/633 to avoid excessive heat or humidity (as in a kitchen or bathroom). The Base Unit can be placed on a desk or tabletop near a standard 230/240Y AC outlet and standard telephone line socket, or mounted on a wall. -
Page 15: Installing The Telephoneon A Desk Or Tabletop
Plug the AC Adaptor cord into the 9Y DC input jack on the Base Unit. (Note: Use only the AC Adaptor supplied with the XC630/633.) Plug the AC Adaptor into a standard 230/240Y AC wall outlet. (Note: The AC wall outlet should be switched on at all times.) Route the power cord where it will not create a trip hazard, or where it could become chafed and create a fire or other electrical hazards. -
Page 16: Mountingthe Telephoneon A Wall
Base Unit. Plug the AC Adaptor cord into the 9Y DC input jack on the Base Unit. (Note: Use only the AC Adaptor supplied with the XC630/633) Place the Base Unit onto the mounting screws and slide downward to secure. -
Page 17: Installing The Batterypack
Battery The rechargeable Nickel-Metal Hydride Battery Pack included with your XC630/633 must be charged for approximately phone for the first time. Place the Handset on the Base Unit and make sure the CHARGE LED lights. If the CHARGE LED does not light;... -
Page 18: Low Batteryindicator
Low Battery Indicator When the Battery Pack voltage level in the Handset is very low and needs to be charged, the BAIT LOW LED blinks. If this occurs while you are on the phone, a short alert beep will also be heard. When this happens, complete your call as early as possible, and return the Handset to the Base Unit for charging. -
Page 19: Using Your Xc 630/633
This switch has been disabled for the New Zealand models. Placing a call To place a call with your XC630/633; Remove the Handset from the Base Unit and Press TALK. Dial the number you are calling. When you have finished the call, press TALK or return the Handset onto the Base Unit. -
Page 20: Usingthe Flashbutton
If the noise persists, or a double beep is heard, move closer to the base before pressing CHANNEL. If the noise or interference continues, refer to the section entitled NOTE "Trouble shooting" in this manual. If you have more than one cordless phone in your house, they must be set to different channels. -
Page 21: Answeringa Call
a Call Answering To.answer a call at the Handset, press TALK. When you have finished your conversation, Base Unit. The Auto Standby functions automatically hang up the phone. If you don't place the Handset back on the Base Unit, press TALK to hang up the phone. -
Page 22: Storinga Mixed Tone/Pulse Number Witha Pulse Dialsystem (Availableon Australianmodelsonly)
Storing a Mixed Tone/Pulse Number with a Pulse Dial System (Available on Australian Models Only) If your phone is set up for Pulse Dialing, you can store a mixed mode number (up to 16 digits) to easily access long distance services. Press MEMORY (The TALK LED flashes) Enter the number to be stored in Pulse Mode. -
Page 23: Diaung A Storednumber
Dialing a stored Number To dial a number stored in memory, press TALK, then press MEMORY and then the memory location number (0~9) Using the Page/Find Feature The Page/Find Feature sends a signal from the Base Unit to the Handset causing it to beep. -
Page 24: Pti0 Nal Accessories
UNIDEN Part Number: CTA630 (NZ only) DESKTOP SUPPORT This bracket gives the base unit extra stability for demanding environments. UNIDEN Part Number: CTA631 (NZ only) PENDANT CLIP This Lanyard clip allows you to wear the handset around your neck. UNIDEN Part Number:... -
Page 25: Tr0 Ubleshooting
If your Cordless Telephone is not performing to your expectations, please try these simple steps. If you are still unable to resolve the problems, contact Uniden Customer Service for assistance. Problem Charge light does not come on when Handset is placed on Base Unit. -
Page 26: Important Electrical Considerations
Lightning can pass through your household wiring and damage any device connected to it. The XC630/633 is no exception. Note: Please do not attempt to unplug any appliance during an electrical storm. -
Page 27: More Thanone Cordlesstelephone
KaClO Interference Radio interference may occasionally cause buzzing and humming in your cordless Handset, or clicking noises in the Base Unit. This interference is caused by external sources such as a TV, refrigerator, vacuum cleaner, fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE. If these noises continue and are too distracting, please check around your home to see what appliances may cause the problem. -
Page 28: Specificati0 Ns
General Frequency control Modulation Operating temperature Base Unit Receive Frequency (Australia) Transmit Frequency (Australia) Receive Frequency (New Zealand) Transmit Frequency (New Zealand) Power Requirements Size Weight Handset Receive Frequency (Australia) Transmit Frequency (Australia) Receive Frequency (New Zealand) Transmit Frequency (New Zealand) Size Weight Battery... -
Page 29: Warranty
U niden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as a part of a system not manufactured by Uniden, (F) Serviced by anyone other than an authorized Uniden Repair Agent, (G) Where the Serial Number label of the product has been removed or damaged beyond recognition. - Page 30 Customers in other States should ship or deliver the Product freight pre-paid to their nearest Uniden Authorized Repair Centre. (Contact Uniden for the nearest Warranty Agent to you) Keep your receipt of purchase in a safe place in case you ever need warranty service.
- Page 31 @ 1887Unidun Corporation. AD rightsrusurvud. CIBXC6300-02...
