Uniden XC310 Operating Manual

Uniden XC310 Operating Manual

Uniden operating guide cordless telephone xc310
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
1
,0.00'00'0
I
.......

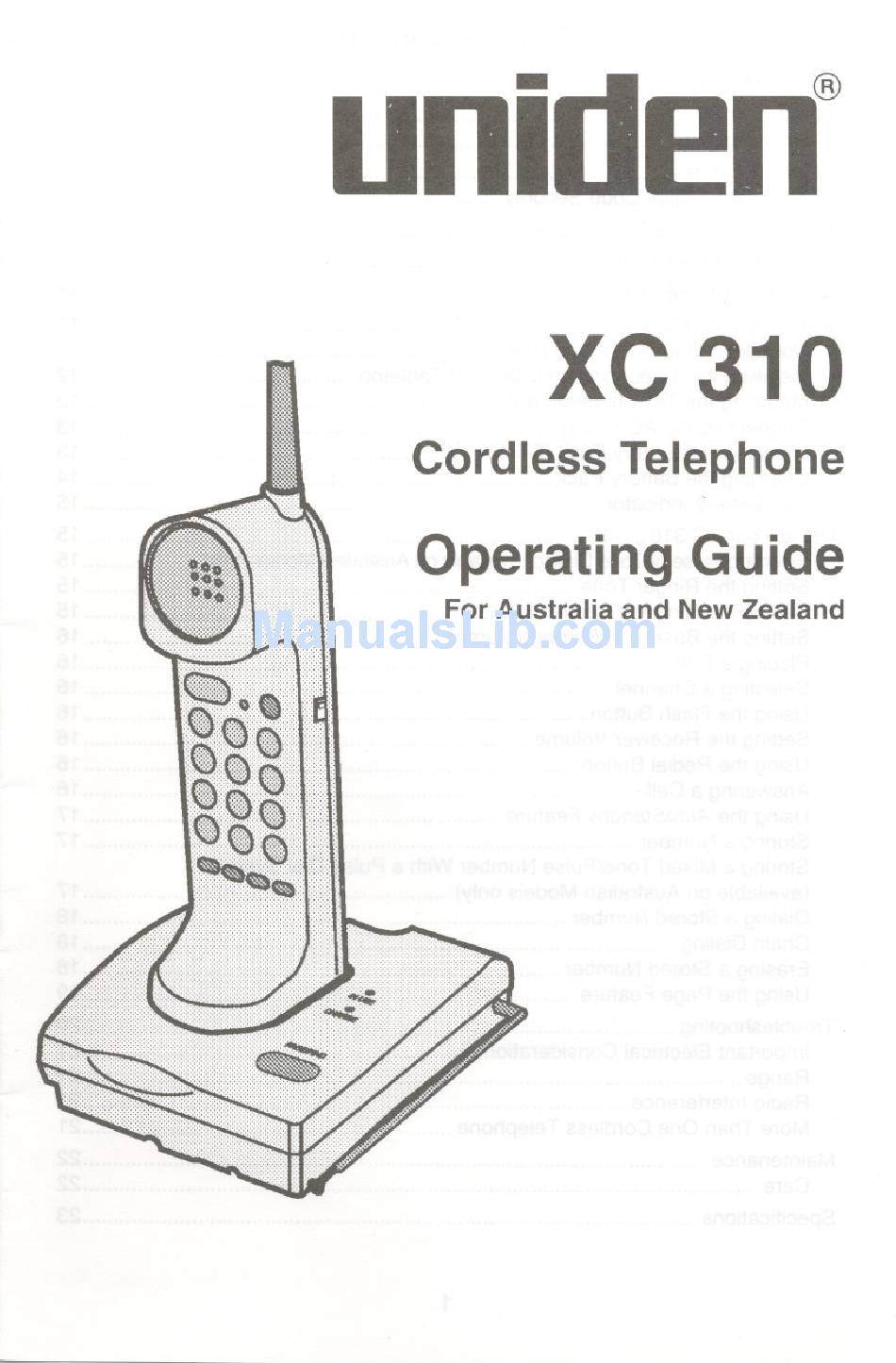

uni ~n@
XC 31 0
Cordless Telephone
Operating Guide
For Australia and New Zealand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XC310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Uniden XC310

Summary of Contents for Uniden XC310

  • Page 1 uni ~n@ XC 31 0 ,0.00'00'0 Cordless Telephone Operating Guide For Australia and New Zealand...

  • Page 2: Table Of Contents

    ImportantSafetyInstructions About your XC 310 """"""""""" Unpacking XC 31 0 Featu res..Automatic Digital Code Security. Base Unit Controls & Functions Handset Controls & Functions Read This Before Installation InstallingYour XC 310 Connecting the Telephone Line Installing the Telephone on a Desk or Tabletop Mounting the Telephone on a Wall Connecting the AC Power Installing the Battery Pack (BT-161)
  • Page 3 Before please observe the following: WARNING! Uniden Corporation DOES NOT represent this unit to be waterproof. To reduce the risk of fire, electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture. NICKEL-CADMIUM BATTERY WARNING This equipment contains a Nickel-Cadmium Battery.

  • Page 4: Importantsafetyinstructions

    Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3.
  • Page 5 12.Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. If the power supply cord is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D.

  • Page 6: About Your Xc 310

    Congratulations on your purchase of the Uniden XC 310 Cordless Telephone. The XC 310 is designed and engineered to exacting standards for reliability, long life, and outstanding performance. To get the most from your XC 310, please read this Operating Guide thoroughly.

  • Page 7: Xc 310 Features

    UltraClear Plus noise reduction provides the quality sound of a corded telephone. Eight 30/39 MHz Channels (Australia): Three 30/39 MHz Channels (New Zealand) 20-Number Memory Maximum Operating Range Redial/Pause and Flash . AutoStandby . AutoTalk Tone/Pulse Dialing (available on Australian Models only) Automatic Digital Code Security Handset Volume Control/Ringer Volume Control One-Way Page, Base Unit to Handset...

  • Page 8: Base Unit Controls & Functions

    Base Unit Controls & Functions TELLINE "Ii...
  • Page 9 TONE/PULSE Use this switch to select either Tone Dialing or Pulse Switch Dialing. (Available on Australian Models only) DC Input Jack Plug the AC Adapter cord into this jack. Then plug the AC Adapter into a standard wall outlet. TEL LINE Jack Plug the supplied telephone line cord into this jack and the other end of the cord into the standard modular telephone socket.

  • Page 10: Handset Controls & Functions

    Handset Handset Antenna TAlKlBATTlOW LED Button TALK Button 1-9,0, TONE*, # Button MEM Button FLASHIR. TONE Button Controls & Functions G)@@ JICI.. t.INO PAIl (?)@@ @)@@) A..A8H VCJU.I\IE II.e.! A. TONE A.VCL FI1.JP CHANNEL Button RINGON BATTSAVE Switch RDUP Button VOlUMEIR.VOl Button...
  • Page 11 Handset Antenna Flexible antenna. TALK/BA TT This LOW LED use, the red LED lights steady. (b) When the battery pack is Iow and need to be recharged, the LED flashes every 3 seconds. CHANNEL Button Press to select one of the available channels for clearest operation.

  • Page 12: Read This Before Installation

    Read We have designed your telephone to conform to Australia or New Zealand Radio Frequency regulations, and you can connect it to most telephone lines. However, each device that you connect draws power from the phone line. We refer to the power drawn as the devices ringer equivalence number or REN.

  • Page 13: Installing The Telephone On A Desk Or Tabletop

    Installing the Telephone on a Desk or Tabletop Place the Base Unit on a desk or tabletop, and plug one end of the Telephone Line Cord (supplied) into the "TEL LINE" j ack on the Base. Plug the other end of the cord into the telephone socket. The unique design of your XC 310 allows you to place the Handset on the Base Unit either facedown or in an upright position.

  • Page 14: Connecting The Ac Power

    If you are mounting the XC 310 on an existing standard wall plate: 1. Plug one end of the Telephone Line Cord (supplied) into the "TEL LINE" jack on the top of the Base Unit. Lay the cord inside the molding on the bottom of the Base Unit.

  • Page 15: Charging The Battery Pack

    1. Remove the battery compartment cover on the Handset by sliding it down. 2. Connect the Nickel-Cadmium Battery Pack by plugging it into the socket at the top of the battery compartment. connector fits only one way and requires only a minimal amount of pressure to insert. Always install the Battery Cable with the BLACK wire to the left.

  • Page 16: Low Battery Indicator

    Low Battery Indicator When the Battery Pack in the Handset is very Iow and needs to be charged, the TALK/BAIT lOW LED flashes every 3 seconds. If this occurs while you are on the phone, a short alert beep will also sound. When this happens, complete your call as quickly as possible, and return the Handset to the Base Unit for charging.

  • Page 17: Setting The Base Unit Ringer Volume

    Placing a Call To place a call with your XC 310: 1. Remove the Handset from the Base Unit and press TALK. 2. Dial the number you are calling. 3. When you have finished the call, press TALKor return the Handset to the Base Unit.

  • Page 18: Using The Autostandby Feature

    the AutoStandby Feature Using When you finish a call and place the Handset back on the Base Unit, AutoStandbyautomatically hangs up the phone. There is no need to press TALK to hang up. NOTE: If you don't place the Handset back on the Base Unit, you need to press TALKto hang up the phone.

  • Page 19: Dialing A Stored Number

    2. Enter the number to be dialed in Pulse Mode. 3. Press the If button on the Handset. digit.) 4. Enter the number to be dialed in Tone Mode. 5. If you wish to enter a delay between numbers (for accessing a switchboard, or long distance service), press RDLJP at the point in the number sequence you wish to pause.

  • Page 20: Using The Page Feature

    Using the Page Feature The Page feature sends a signal from the Base Unit to the Handset causin~ it to beep. This is useful for locating the Handset when it is away from the Base Unit. Press the PAGE button on the Base Unit and listen for the tone from the Handset.

  • Page 21: Troubleshooting

    If your XC 310 Cordless Telephone is not performing to your expectations, please try these simple steps. If you are still unable to resolve the problems, contact Uniden Customer Service for assistance. Note: Do not attempt to service this unit yourself. All service must be done by qualified service personnel.

  • Page 22: Important Electrical Considerations

    Important Electrical Considerations Unplug all electrical appliances when you know an electrical storm is approaching. Lightning can pass through your household wiring and damage any device connected to it. The XC 310 is no exception. NOTE: Please do not attempt to unplug any appliance during an electrical storm.

  • Page 23: Maintenance

    Care Your XC 310 Cordless Telephone is an example of superior design and craftsmanship. The following suggestions will help you care for your phone so that you can enjoy it for years. Keep the phone dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits.

  • Page 24: Specifications

    General Frequency Control Modulation Operating Temperature Base Receive Frequency Transmit Frequency Power Requirements Size Weight Handset Receive Frequency Transmit Frequency Power Requirements Size Weight Battery Specifications shown are typical and subject to change without notice. Specifications Crystal controlled transmission -10° to 50° C 39.775 to 40.000 MHz (3ch NZ) 30.075 to 30.300 MHz (8ch AUST) 39.775 to 40.000 MHz (3ch NZ)
  • Page 25 Product is (A) Damaged or not maintained as reasonable and necessary, altered or used as part of any conversion Uniden, (C) Improperly installed, (D) Repaired by someone other than an authorized Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with...
  • Page 26 Netas...
  • Page 27 345 Princes Hwy, Rockdale, NSW. 2216. Ph (02) 599 3355 Fax (02) 599 4018 Cnr Ti Rakau Drive and Harris Road. East Tamaki, Ph (09) 2744179 Fax (09) 2740009 CELLULAR TELEPHONES, CORD LES S TELEPHONES SCANNERS, CB RADIOS, UHF RADIO, MARINE RADIO, LAND MOBILE RADIO.
