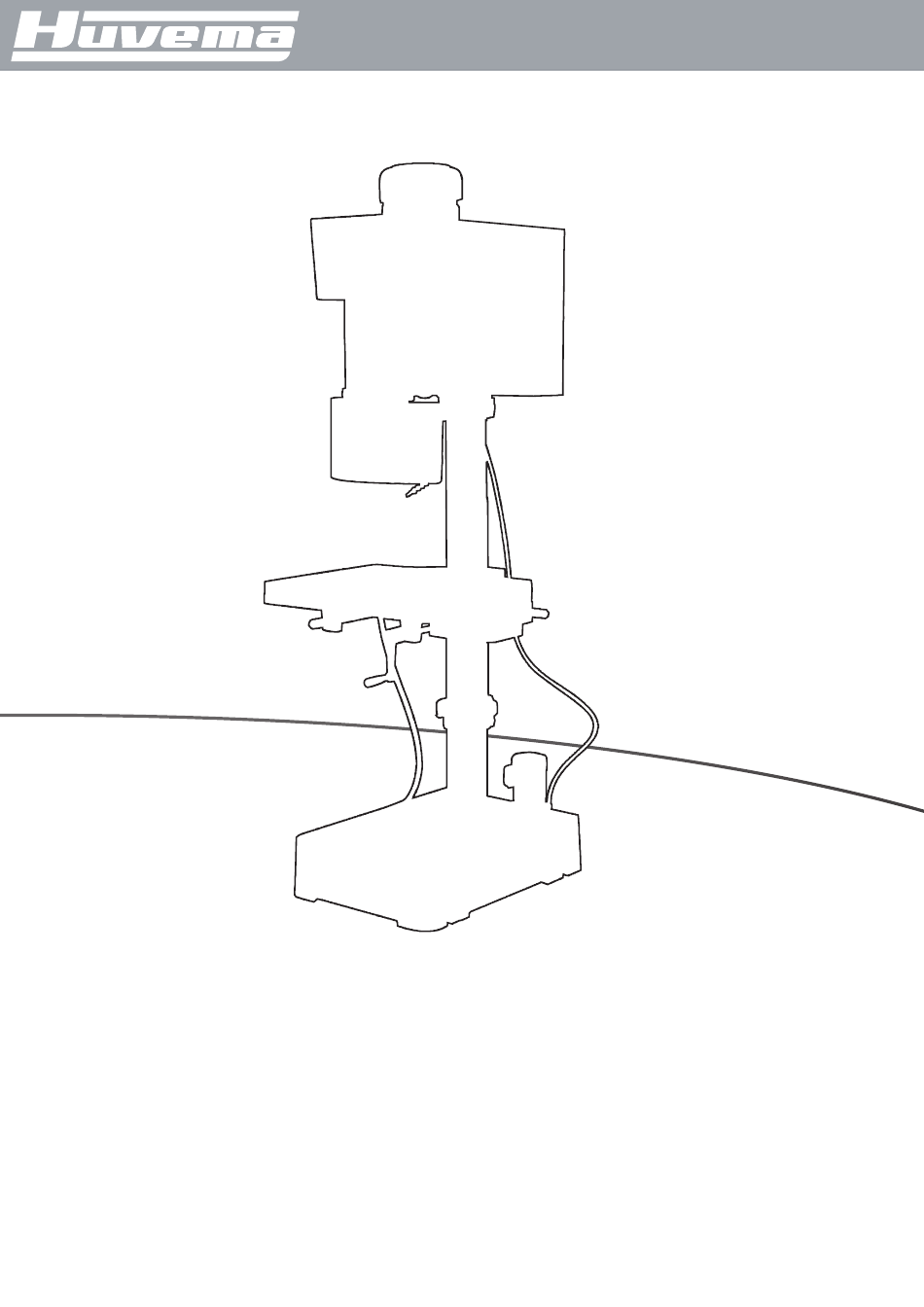

- Page 1 I N D U S T R I A L D R I L L I N G M A C H I N E HU 40 FLOWDRILL TOPLINE...
-
Page 2: Table Of Contents
able of conTenTs General safety rules for all machines Additional safety rules Machine Specifications Specification Machine Dimension Description of Machine Transporting the Machine Getting to Know Your Machine Control Panel The Machine Head Hi/Low Electronic Transmission The Work Table The Coolant Tank and Pump Machine Installation Positioning the Machine Minimum Requirement for Housing the Machine... -
Page 3: General Safety Rules For All Machines
HU 40 f lowdrill opline 1. G eneral safeTy rUles for all macHines N.B.: Read the instructions carefully in order to avoid any problems. As with all machinery there are certain hazards involved with operation and use of this machine. Using the machine with respect and caution will considerably lessen the possibility op personal injury. -
Page 4: Additional Safety Rules
Always wear safety glasses! Thank you for purchasing the industrial milling machine HU 40 Flowdrill Topline. Please read this manual carefully before operating the machine and keep the operating manual for later reference. This machine is of fine quality and stable performance. -
Page 5: Description Of Machine
3.3 d escripTion of acHine WIJZIGINGEN EN TYPEFOUTEN VOORBEHOUDEN... -
Page 6: Transporting The Machine
4. T ransporTinG THe acHine When transporting in its original own packaging, please use a forklift truck or hand trolley. Find the proper position to place machine then anchor it. 5. G eTTinG To acHine 5.1 c onTrol anel ON Switch – Starts the motor. OFF Switch –... -
Page 7: The Coolant Tank And Pump
5.5 T oolanT anK and The coolant tank holds coolant which pumped to the work piece for cooling and lubricating while cutting. Coolant is a solution that lowers tool wear and enhances drilling by cooling and lubricating the drilling tool. Before the operation of a new machine, add coolant to the coolant tank by referring the install section 4.6. -
Page 8: Electrical Connection Of The Machine
6.5 e lecTrical onnecTion of THe acHine Make sure whether the voltage of the acquired machine is 220V/1 phase or (220V, 380V, 400V,440V)/3 phases prior to connection. If the machine cannot be operated after wires have been connected, please check the following items: The Emergency switch is released. -
Page 9: Adjusting The Rack Height
Caution: When the head bore and the column cap are flush, the head cannot be raised further. Use a ladder to observe the column through the top of the belt cover. Lock the machine head. Tighten the two head locking bolts (fig. 7) After the head is set and locked, unlock the collar. -
Page 10: In Drilling Mode
7.5.1 i rillinG Use the depth handle to bring the tip of the drill bit to the surface of the work piece hold. Set the drilling depth stop to required depth. Begin drilling by using the quill feed levers. 7.5.2 i appinG In general, speeds for tapping require low transmission mode with speeds lower than 150RPM. -
Page 11: Lubrication And Routine Maintenance
9. l UbricaTion and oUTine ainTenance Apply oils to the driving parts of the machine prior to operation and supply coolant during operation to ensure stability of cutters and the object being processed. Please refer to the lubrication as below for more details about use oil. -
Page 12: Oil Disposal
9.8 o isposal Oil products must be disposed in a proper manner following local regulations. 9.9 s pecial ainTenance Special maintenance operations must be carried out by skilled personnel. However, we advise contacting dealer and/or importer the term special maintenance also covers the resetting of protection and safety equipment and devices. -
Page 13: Explosion Drawing And Parts List
11. e xplosion rawinG and arTs 11.1 e a – H xplosion rawinG oTor lecTric onTrol WIJZIGINGEN EN TYPEFOUTEN VOORBEHOUDEN... -
Page 14: Parts List A - Head / Motor / Electric Control
11.2 p a – H arTs oTor lecTric onTrol Description Size Q'TY NO. Description Size Q'TY Head body Selection switch D/T Oil window S-30 Pump switch Ball bearing 6202z Speed control knob C-Clip S-31 Reversal switch Gear M=2,T=32 Screw 6x20 Cross head screw 3/16"x3/8"... - Page 15 Steel ball C-Clip R-47 Hex nut 3/16” Hex socket cap screw M8x12 Hex socket cap screw 3/16”x3/4” Washer Digital display Bearing support Holder screw Flat head screw 5x12 Washer Ball bracket Hex socket cap screw M8x20 Speed lever Screw M5x8 Drive spindle pulley M=8, T=64 Screw...
-
Page 16: Explosion Drawing B - Head / Spindle Assembly
11.3 e b – H xplosion rawinG pindle ssembly WIJZIGINGEN EN TYPEFOUTEN VOORBEHOUDEN... -
Page 17: Parts List B - Head / Spindle Assembly
11.4 p b – H arTs pindle ssembly Description Size Q'TY NO. Description Size Q'TY Head body Set knob Head body hex. Bolt 3x15 Spring Face plate Bushing Screw 3/16"x 5/16" 4 Depth scale bracket Handle Set screw 3/16"x1/2" Set screw 5/16"x3/4"... -
Page 18: Explosion Drawing B - Head / Spindle Assembly
11.5 e b – H xplosion rawinG pindle ssembly WIJZIGINGEN EN TYPEFOUTEN VOORBEHOUDEN... -
Page 19: Parts List C - Column / Table / Base
11.6 p c – c arTs olUmn able Description Size Q'TY NO. Description Size Q'TY Coolant base Thrust bearing 51102 Washer 1/2” Worm shaft Hex. Cap screw 1/2” x1-1/2” 4x4x20 Cover Gear Coolant pump 1/8HP,230V Worm gear Coolant pump 1/8HP,460V Lock sleeve Screw (w/washer) 1/4"... -
Page 20: Electrical Components
12. e lecTrical componenTs Item Description Quantity Technical data Supplier Suppliers Remarks designation and function reference Disconnecting Ui690V MOELLER TO 2/1V IP65 Device CE UL IP54 IEC947-3 FU 1, 2 FU 3 Fuse Base Fuses 250V 10A POSSING FB-3 250V 0.5A POSSING 250V 3A KM 1... - Page 21 Industrie & Handelsonderneming Huberts bv, Kennedylaan 14, 5466 AA Veghel, the Netherlands, in the capacity of importer, is to be held responsible for declaring that the Huvema machine: Industrial drilling machine HU 40 Flowdrill topline which this declaration relates to, is conform the following norms: NEN-EN-ISO 12100:2010, NEN-EN-IEC 60204-1:2006/C11:2010, NEN-EN-IEC 61000-6-4:2007,...
