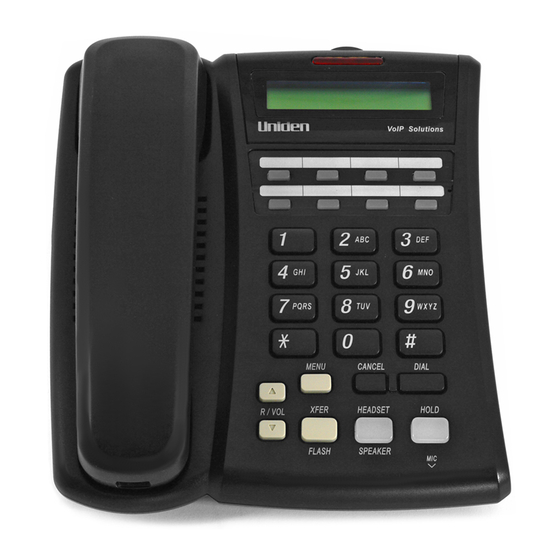

UIP200 User's Manual
Revision 1.0
© Uniden America Corp., May, 2004
This manual contains instructions for installing and operating your UIP200 SIP IP phone. It
provides a description of the telephone's hardware, features, LCD displays, and explains setup,
configuration, and basic operation. If you have any questions about the information in this
document, please call our Customer Service Department at 1-800-648-4921 or visit us on the
web at http://bcs.uniden.com.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UIP200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Uniden UIP200

  • Page 1 Revision 1.0 © Uniden America Corp., May, 2004 This manual contains instructions for installing and operating your UIP200 SIP IP phone. It provides a description of the telephone’s hardware, features, LCD displays, and explains setup, configuration, and basic operation. If you have any questions about the information in this document, please call our Customer Service Department at 1-800-648-4921 or visit us on the web at http://bcs.uniden.com.
  • Page 2: Table Of Contents

    Speaker ...13 Installation and Basic Setup Instructions... 14 Wall-Mounting the Telephone... 14 Connecting the Telephone ... 15 Basic Telephone Operations... 16 Standby ... 16 Table of Contents UIP200 User's Manual Page 2 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 3 Phone Settings Sub-Menu... 25 Changing the LCD Contrast ...25 Changing the Display Language ...25 Adjusting the Date and Time...26 Network Setting ... 27 View Info ... 27 UIP200 User's Manual Page 3 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 4 Table 2 Control Keys and Their Functions...11 Table 3 LEDs and Their Meanings ...12 Table 4 Fixed-Function Key and Programmable Key Defaults...20 Table 5 Configuration Menus and Their Functions ...23 UIP200 User's Manual Page 4 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 5: Introduction

    TIMESAVER Timesavers are hints that will make things go a little faster. Most timesavers are suggestions from users that have worked well in the field. UIP200 User's Manual Page 5 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 6: Regulatory Information

    What’s New? This is the first release of documentation for this product. Table 1 Revision History Revision Publication Date May 31, 2004 Changes First release of this document. UIP200 User's Manual Page 6 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 7: Important Safety Considerations

    3. If the product has been exposed to water or rain. 4. If the product does not operate normally when following the operating instructions. (Adjust only those controls that are covered by the operating UIP200 User's Manual Page 7 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 8: Important Electrical Considerations

    5. If the product has been dropped, or the cabinet has been damaged. 6. If the product exhibits a distinct change in performance. Uniden works to reduce lead content in our PVC coated cords in our products and accessories. WARNING...
  • Page 9: Ac Adapter

    Power over Ethernet (PoE) The UIP200 may obtain power via the LAN when a Power over Ethernet switch is used. Connect the category 5 RJ 45 cable to the LAN port only; the input is –48 VDC, 6.4 W.
  • Page 10: Product Description

    The following features are specific to the VoIP function. SIP standard compliant (RFC 3261) Voice Codec: G.711 (µ-Law and A-Law), G729A Acoustic Echo Cancellation (AEC) (G.165) DHCP or Static IP address Configuration UIP200 User's Manual Page 10 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 11: Operational Features

    Control and Functions To make phone operations easier and to avoid user confusion, many required functions are already programmed into the fixed-function keys. There are 8 fixed function keys in the UIP200. Table 2 Control Keys and Their Functions On a call...
  • Page 12: Function Keys

    1-Touch Speed Dialing, Voice Message Access, Do Not Disturb, Mute, or 2-Touch Speed Dialing. LED Status There are eleven LEDs on the UIP200 IP phone. Two LEDs are also the fixed- function keys HOLD to show the status of the function while it is used.
  • Page 13: Physical Interface

    Input to the phone from the power supply: 5 Vdc, 1.7 A (IPAD-532) Input to the phone from Power Over Ethernet: nominal -48 Vdc (-36 to -57) Speaker 8 Ω 8W φ57mm UIP200 User's Manual Page 13 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 14: Installation And Basic Setup Instructions

    The wall mount bracket is included with the UIP200. The wall mount bracket can be attached to the bottom of the UIP200, allowing the user to wall mount the telephone. The bracket can only be attached one way. Once the bracket is attached, the phone may be mounted over an existing wall plate.
  • Page 15: Connecting The Telephone

    Connecting the Telephone Before using the UIP200, you must connect the handset to the phone, connect the phone to the LAN network, and connect the phone to power. CAUTION If using Power over Ethernet, do not connect the AC power supply.
  • Page 16: Rev. 1.0, © Uac, May

    Basic Telephone Operations Standby Standby mode is the state in which the UIP200 is on-hook, ready to make or receive calls. While the UIP200 is in standby mode, all LEDs are turned off and the current date, time and phone number are shown on the LCD (see Figure 3).
  • Page 17: Using On-Hook Dialing

    ) or ▼ ( to make the phone go off-hook. HEADSET SPEAKER LED will flash and the LCD VISUAL RINGER JOHN DOE 8175553198 ) to adjust the volume. DOWN UIP200 User's Manual Page 17 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 18: Changing The Headset Volume

    Step 4: The new volume setting is saved. key. ) to adjust the volume. DOWN key. ) to adjust the volume. DOWN ) to adjust the volume. DOWN UIP200 User's Manual Page 18 of 27 Rev. 1.0, © UAC, May, 2004...
  • Page 19: Transferring A Call

    This puts the current call on hold, and FLASH key. This puts the current call on hold and allows you to key again. HOLD UIP200 User's Manual Page 19 of 27 key. FLASH HOLD Rev. 1.0, © UAC, May, 2004...
  • Page 20: Feature Operations

    Programmable and Fixed Function Keys There are eight programmable function keys and eight fixed functions keys in the UIP200. Programmable function keys can be assigned to any one of the available functions: One-touch speed dial, Two-touch speed dial, DND, Voice Message Access (VMA) or Mute.
  • Page 21: -Touch Dialing

    The VMA feature provides one-touch access to your voice mailbox. When key. HEADSET SPEAKER key. If you programmed the HEADSET SPEAKER VISUAL RINGER LED remains on. key. To deactivate the DND UIP200 User's Manual Page 21 of 27 DIAL LED. When the DND Rev. 1.0, © UAC, May, 2004...
  • Page 22: Mute

    Emergency Proxy The UIP200 provides an Emergency Proxy feature that allows the user to access a SIP Emergency Proxy Server with pre-defined 2-digit dial plan. To execute a call via the emergency proxy dial the two digit prefix followed by the number.
  • Page 23: Configuring The Telephone

    Configuring the Telephone The main configuration menu is the Setup menu. This menu consists of five submenus that allow you to configure and display information about the UIP200. Table 5 shows the available menus and their uses. Table 5 Configuration Menus and Their Functions...
  • Page 24: Clearing Or Editing The 1-Touch Number

    Press the DIAL clear the entered digits and return to the 2-Touch Dial sub-menu. Step 6: After entering the phone number, press phone number is stored. UIP200 User's Manual again. MENU MENU key at anytime to CANCEL .
  • Page 25: Clearing Or Editing The 2-Touch Number

    You can set the language of the display to English, French, or Spanish. Step 1: Press the key to enter the Setup menu MENU key to exit the sub-menu without saving. CANCEL UIP200 User's Manual Page 25 of 27 MENU key without MENU again. MENU...
  • Page 26: Adjusting The Date And Time

    . The phone will prompt you MENU DISABLED . The phone will prompt you to set the GMT Offset. key to exit the sub-menu without saving. UIP200 User's Manual Page 26 of 27 again. MENU to save the MENU again.
  • Page 27: Network Setting

    Step 3: The phone will display the current firmware version and IP address of the terminal. Step 4: Press the CANCEL key to exit the sub-menu. UIP200 User's Manual Page 27 of 27 again. MENU Rev. 1.0, © UAC, May, 2004...
