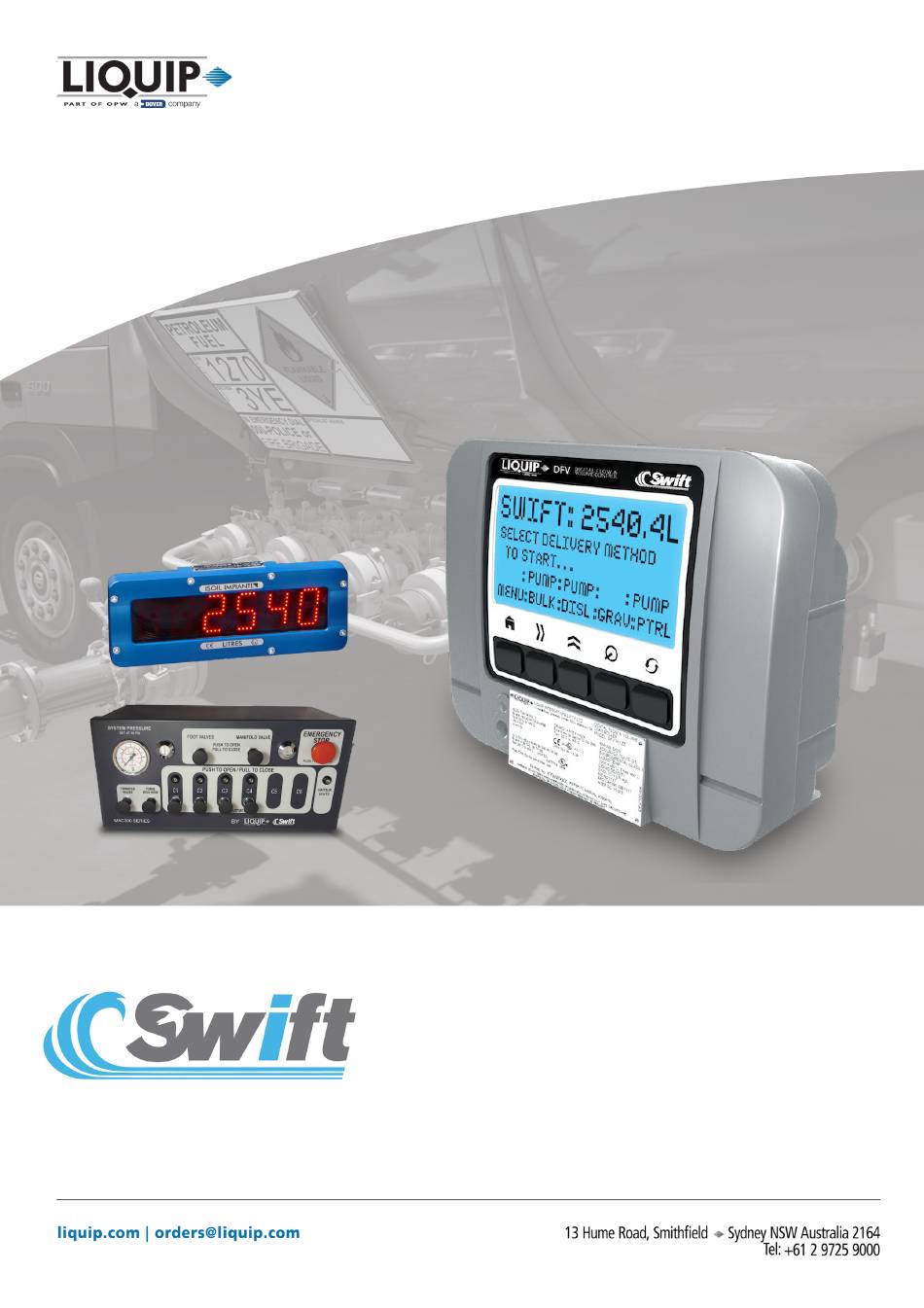

- Page 1 Document P/N: DFV-SWIFT-DM Version: C Issue Date: September 23, 2019 Swift Delivery System Driver’s Manual...
- Page 2 1 Introduction The SWIFT Delivery System utilizes proven components that are readily available and that users are familiar with. The SWIFT system makes complex fueling deliveries simpler, faster and highly accurate. The SWIFT system allows users to perform NMI-approved: • Gravity Deliveries: Section 2 Pumped Deliveries –...
- Page 3 2 Gravity TIP: Please note that the following options are available for Gravity deliveries: • Full-Compartment Delivery (via Batch): Section 2.1 • Single-Compartment Drop (Manual Partial or Full Delivery): Section 2.2 Batch (Preset Partial Delivery): Section 2.3 • Multi-Compartment Drop (Partial or Full): Section 2.4 •...
- Page 4 Batch Gravity (Preset Partial Delivery) TIP: Ensure there is appropriate space for delivered product in tank prior to and during delivery. Press “MENU” button twice to get to the Batch Selection screen (refer to Figure 1.4, page 2). Input quantity to be delivered using the “ARROW” buttons. Confirm amount by selecting the “OK”...
- Page 5 3 Pumped Deliveries: Bulk (Diesel) Deliveries & Hose Reel Deliveries (Diesel/Petrol) TIP: Please note following options are available for Bulk and Hose Reel deliveries: Manual Single-Compartment Drop (Partial): Section 3.1 • Batch (Preset Partial Delivery): Section 3.2 • • Batch (Full-Compartment Delivery): Section 3.3 Manual Single-Compartment Pump Delivery (Partial) Select “BULK”, “DISL”...
- Page 6 Batch Pump Delivery (Preset Partial Delivery) TIP: Ensure that there is appropriate space for delivered product in tank prior to and during delivery. Press “MENU” button twice to get to the Batch Selection screen (refer to Figure 1.4, page 2). Input quantity to be delivered using the “ARROW”...
- Page 7 Batch Pump Delivery (Full-Compartment Delivery) TIP: Ensure there is appropriate space for delivered product in tank prior to and during delivery. Press “MENU” button twice to get to the Batch screen (refer to Figure 1.4, page 2). Press “ALL” button to program complete compartment delivery. NOTICE: The DFV-Swift will display 99999L to be delivered when “ALL”...
- Page 8 Multi-Compartment Delivery (COMP) Select “BULK”, “DISL” or “PTRL” on the DFV-Swift (refer to Figure 1.1, page 2). Look at sightglass to see if the manifold has product in it and select “DRY” or “FULL.” Hold down the “Manifold valve” button and press down the desired compartment button on the Swift- Mx Box for three (3) seconds.
- Page 9 4 Dual-Trailer Configuration Use the following instructions to switch between Trailer A or B control for unloading. Figure 4.1 Deselected Screen Figure 4.2 Swift-Mx Box NOTICE: Switching control between Trailer A or B can only be controlled using the “TRANSFER VALVES”...
- Page 10 Page 10 of 10...
