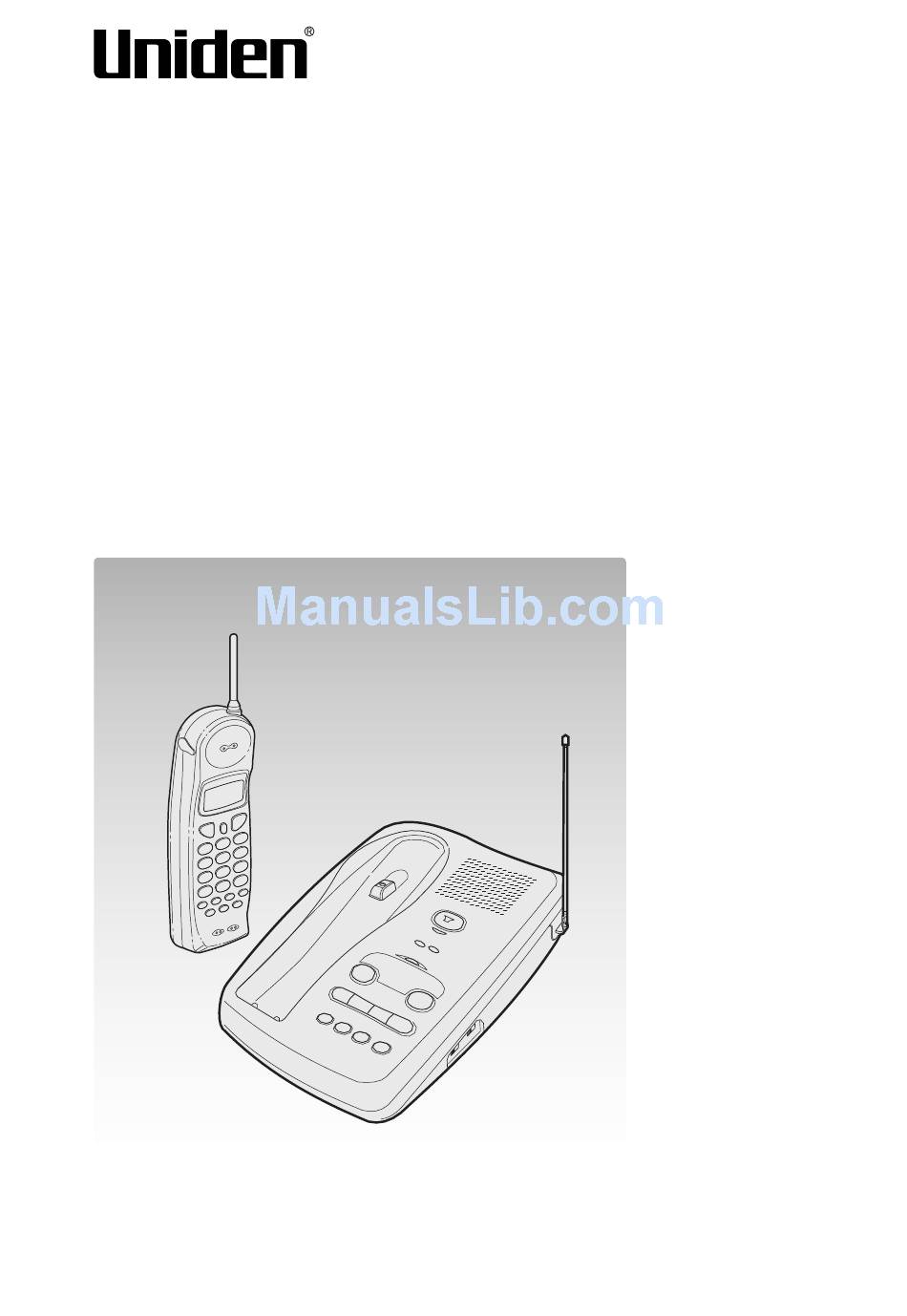

Cordless Telephone
EXAI 7980
Owner's Manual
Thank you for your purchase of the Uniden EXAI 7980 cordless
telephone. Please read this Owner's Manual carefully before
using your cordless telephone to ensure proper use. After read-
ing the manual, please keep it in a safe place and refer to it
when necessary.
©1999 Uniden America Corporation
