Kunz Till-Ease Assembly Instructions

ASSEMBLY INSTRUCTIONS
Kunz Engineering Inc.
READ THE COMPLETE ASSEMBLY INSTRUCTIONS BEFORE
You should have the following parts with the complete kit:
one drag harrow assembly
-
A. DRAG HARROW PREPARATION – Refer to Figure 1.
1. Unhook the snap hook from the eye bolts on both sides of the drag harrow.
2. Rotate the support tubes 180 degrees away from the drag harrow.
3. Rotate the loose end of the free tow links 180 degrees away from the drag harrow.
4. Remove the unused 3/8" x 2-1/4" bolt and nylon insert lock nut from each support tube.
5. Position the hole on the free end of the tow links with the hole location on the support tube
where the bolt was removed in the previous step.
6. Insert the 3/8" x 2-1/4" bolt through the aligned holes and fasten with the nylon insert lock nut.
This location is a pivot point and should not be fully tightened.
7. Hook the snap hooks on the appropriate eye bolts.
Support Tube
3/8 x 2-1/4" Bolts and
Nylon Insert Lock Nuts
B. INSTALLING ON TILLAGE TOOL – Refer to Figure 2.
1. Remove the provided wire lock pins from each support tube.
2. Align the support tubes with the attachment receivers on the tillage tool and insert.
3. Insert and securely fasten the wire lock pins through the attachment receivers.
Mendota, IL
STARTING THE ASSEMBLY.
Tow Link

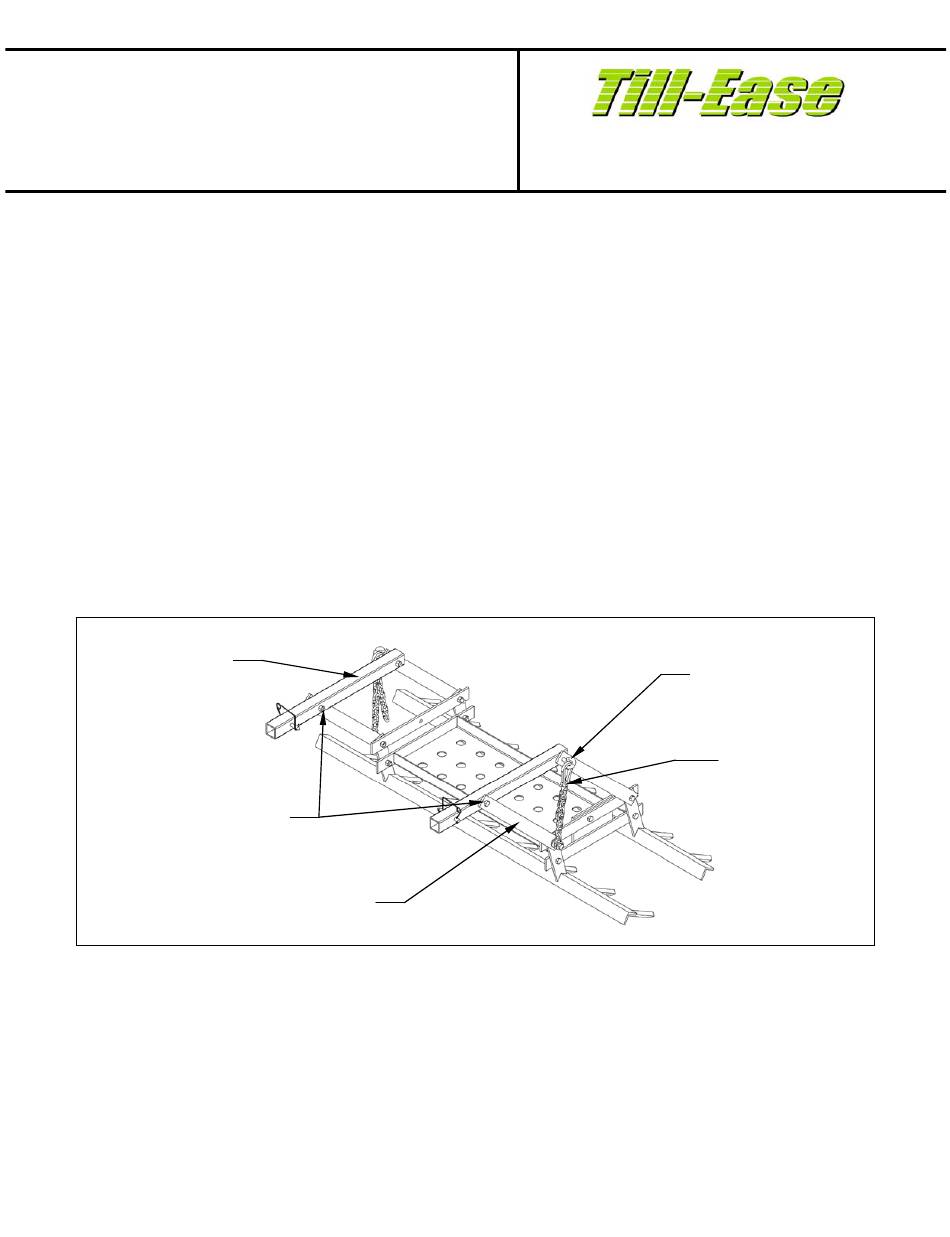

Figure 1. Drag Harrow Assembly
Drag Harrow Part # 003800
1
Eye Bolt
Snap Hook
& Chain
