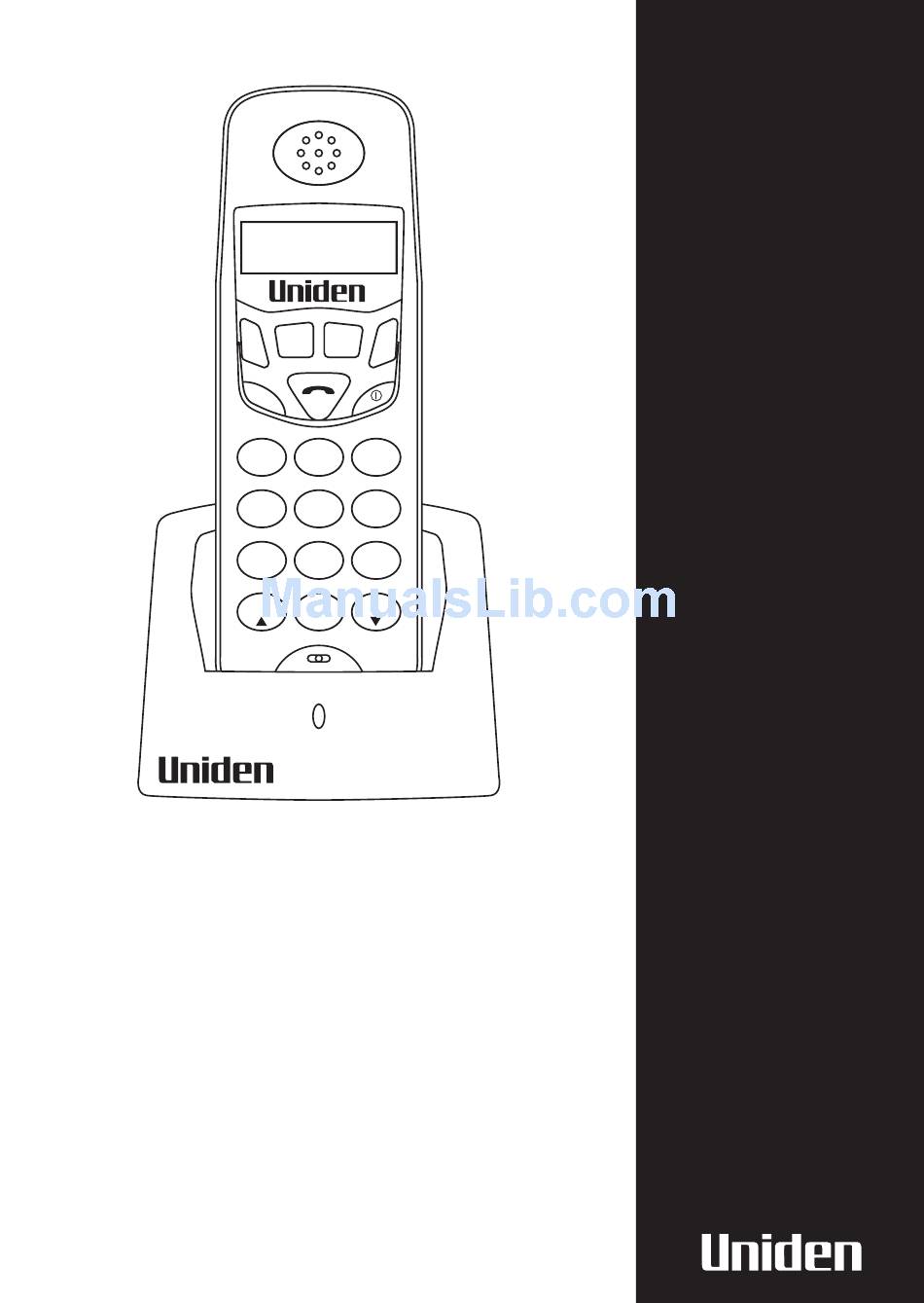

- Page 1 pqrs OWNER’S MANUAL rdl/p wxyz DECT 1812...
-
Page 2: Handset Functions
HANDSET FUNCTIONS S = Standby Mode (Not holding a call) T = Talk Mode (During a call) CHARGER Phonebook Dialling Key (S&T) Function Select Key (S) Menu Key (S) Recall Key (T) Dial Delete Key (S) Menu Escape Key (S) Memory Clear Key (S) Microphone Mute Key (T) Keypad Number Keys... -
Page 3: Installation
A simple guide to setting up your new phone. DECT1812 Start Start Here! Here! Quick Reference Guide This page is a very condensed version of your owners manual and does not attempt to explain any of the advanced features of your phone. Installation Adaptor Plug the phone jack into the base unit, then... -
Page 4: Charging The Battery
Charging the Battery Installing the Handset Batteries Press battery cover release. Slide cover off. Install the 3 rechargeable Ni-MH batteries. Slide the battery cover back until it snaps into place Place the handset on the base and charge uninterrupted for 14 hours. Only use the battery pack supplied or rechargeable AAA Ni-MH Batteries. -
Page 5: Table Of Contents
CONTENTS Handset and Base Functions ........i Step 1 - Installation . -
Page 6: Features
Congratulations on your purchase of the Uniden DECT 1812 cordless telephone. This phone is designed for reliability, long life and outstanding performance utilising the latest in 1.8 GHz Digital Enhanced Cordless Telecommunication technology. WELCOME FEATURES 1.8 GHz Digital Enhanced Cordless Telecommunications (DECT) -
Page 7: Included In Your Package
To get the most from your phone, please read this owner’s manual thoroughly. Be sure to complete and mail the product registration form. If any of these items are missing or damaged, contact Rechargeable Battery your place of purchase immediately. INCLUDED IN YOUR PACKAGE rdl/p pqrs... -
Page 8: Important Safety Instructions
1. UNIDEN DOES NOT represent this unit to be waterproof. 2. Do not use this product near water; for example, near a bathtub, shower, This symbol indicates important operating and servicing instructions. 3. Do not overload wall outlets and extension cords, as this can result in the risk 4. -
Page 9: Description Of Handset Keys
[OK] Phone book: Short dialling phone book access in the Standby Mode and Talk Mode Refer to inside front cover Function Select Key: Select various functions for handset picture and key location. [menu] Menu: Enter/ confirm programming functions in the Standby Mode Recall (Flash): Recall in the Talk Mode [clr] Microphone Mute Key: Press and hold in the Talk Mode... -
Page 10: Description Of Displayed Symbols
The ANTENNA symbol shows the handset is searching for radio connection. The TALK symbol appears when pressing the Talk ( The EXT symbol is used for external calls. An external call set-up is displayed on all the subscribed handsets to indicate whether another external call might be set up. The INT symbol is used for internal calls between handsets. -
Page 11: Using Your Phone
USING YOUR PHONE MAKING EXTERNAL CALLS There are several ways to make an external call using your DECT 1812 phone. 1. Press talk key on the handset. Enter the number you require and you will be connected automatically. 2. Enter the number you require. The number will appear on the LCD but won't be dialled. -
Page 12: Power Key
POWER KEY Press and hold the power situations it is recommended to leave the power on the handset at all times so calls can be received. RANGE OUT and will not be functional until you move back into range. BATTERY A warning tone will sound and the low battery symbol will appear on the LCD if the battery is in a low state. -
Page 13: Pause
PHONE BOOK You can store up to 20 frequently called numbers in your handset's phone book. Each number can have up to 20 digits. To store a number: • in Standby Mode, enter the telephone number you wish to store and press •... -
Page 14: Call Waiting And Caller Id
CALL WAITING AND CALLER ID If you have subscribed to Call waiting and/or Caller ID through your local telephone company, the following special features are available on your DECT 1812 telephone. You must subscribe to Caller Flash (Call waiting) ID and Call Waiting through If the call waiting tone sounds while you are on a call: your telephone company. -
Page 15: Delete All Caller Id Numbers
Delete all Caller ID numbers from the memory • press • press If you have stored a name • press and number in your phone book, when you receive a call • press from that number the name will be displayed on your LCD. •... -
Page 16: Personalising Your Phone
EARPIECE VOLUME 1. To change the earpiece volume during a call, press the power 2. To change the earpiece volume in Standby Mode HANDSET EXTERNAL RING MELODY Nine external ring melodies are available. HANDSET EXTERNAL RING VOLUME Nine external ring volumes are available. PERSONALISING YOUR PHONE handset. -
Page 17: User Name
USER NAME You can programme your handset to display your name (up to a maximum of 10 letters). Look at this example for the user name FRED first. • press key once and then press [menu] display on the LCD. NAME •... -
Page 18: Handset Internal Ring Melody And Volume
HANDSET INTERNAL RING MELODY AND VOLUME If you will be receiving internal calls from your an optional DECT1812 Handset, you can programme a different ring melody and volume to show that the call is an internal one. Simply press [menu] key until you reach the H-INT RING display on the LCD and then follow the instructions as for setting up volume and melody for external calls. -
Page 19: Advanced Functions
ADVANCED FUNCTIONS RESETTING YOUR BASE UNIT The base unit can be reset to default factory values. RESET ALL will desubscribe all connected handsets and put the base unit into subscription mode. INITIALIZE will reload default parameters which are: Base unit ringer volume: Base unit ringer melody: Dialling mode: Flash time:... -
Page 20: Registering A Handset To A Base Unit
Each handset must be registered to a base unit in order to make and receive calls. The DECT 1812 is automatically registered to the first base unit for you. A handset can be registered to up to four base units. -
Page 21: Deregistering A Handset
DEREGISTERING A HANDSET You can delete a handset registration from a base unit using handset 1 only. • press Handset 1 cannot • press desubscribe itself. • press • press • press • press • press talk SHOW RFPI This function displayed the RFPI (radio fixed part identity) of the base unit currently locked to the handset. -
Page 22: Handset Pin Number
Your handset will be set to the default PIN number setting of 1590. You can also choose your own PIN number. WARNING! Uniden does not recommend changing the PIN number. If you forget your PIN number there is no way to reset the telephone. -
Page 23: Base Unit Pin Number
Your base unit will be set to the default PIN number setting of 1590. You can also choose your own PIN number. WARNING! Uniden does not recommend changing the PIN number. If you forget your PIN number there is no way to reset the telephone. -
Page 24: Troubleshooting
If your phone is not performing to your expectations, please try these simple steps first before calling Uniden customer service. TROUBLE SHOOTING PROBLEM Make sure the AC adaptor is plugged into the base and The charge light wall outlet. won’t come on... -
Page 25: Specifications
GENERAL Operating Technology TDMA (Time Division Multiple Access) ADOCM (Adaptive Differential Pulse Code Modulation) DCA (Dynamic Channel Allocation) HANDSET Frequency: 1881.782 to 1897.344 MHz (10 channels) Power requirements: Rechargeable NiMH battery Size (without antenna): 45mm (W) x 27mm (H) x 135mm (D) Weight: Approx. -
Page 26: Warranty
Uniden, (C) Improperly installed, (D) Repaired by someone other than an authorised Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden, (F) Warranty is only valid in country of purchase. - Page 27 NOTES...
- Page 28 © 2001 Uniden Australia Pty Limited Uniden New Zealand Limited...
