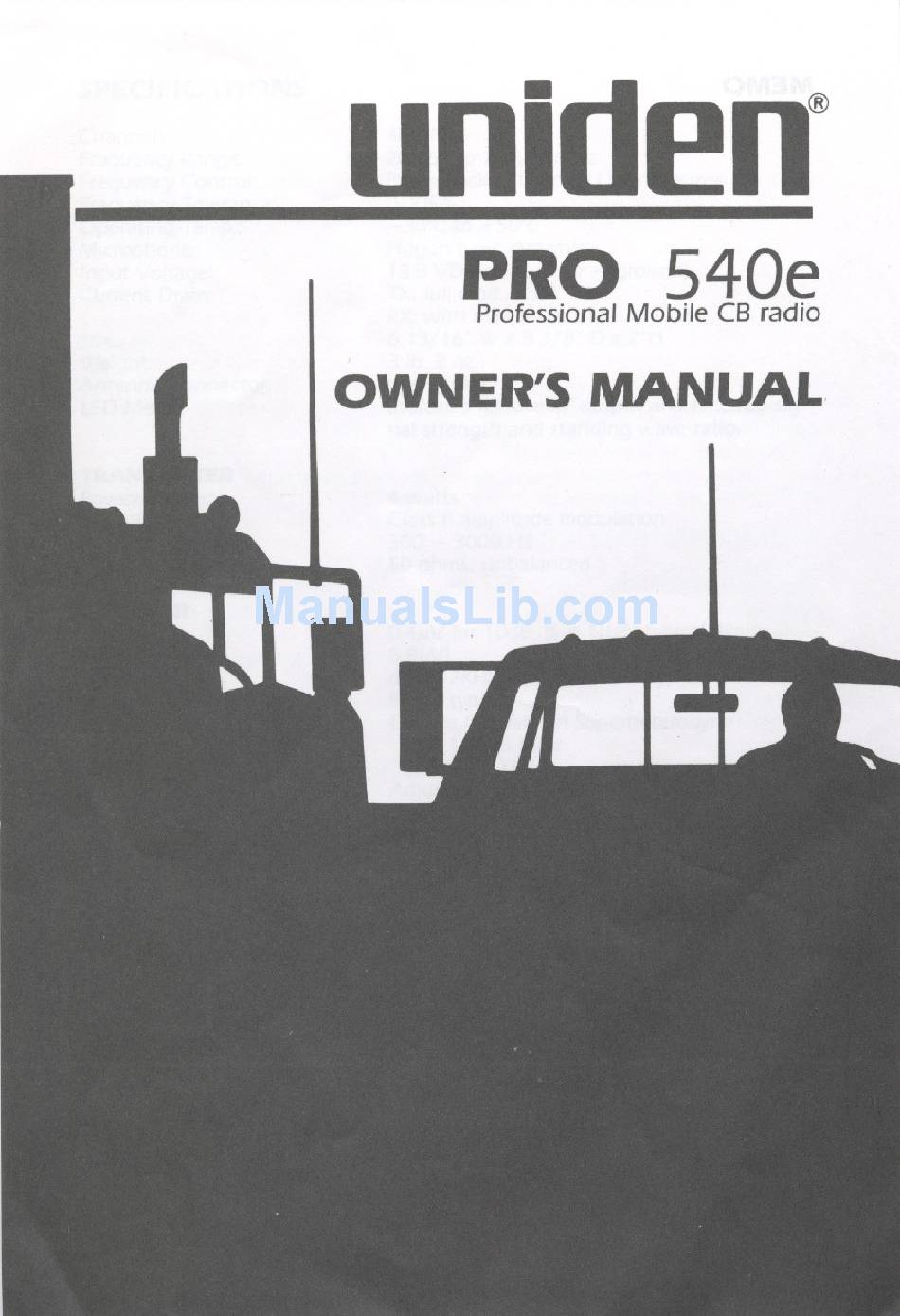

- Page 1 PRO 540e Professional Mobile CB radio OWNER'S MANUAL,...
-
Page 2: Mobile Installation
SWR meter when installing your antenna. PRO 540e to channel 20 and press the SWRkey. Th~ SWRscale is the first set of numbers above the LED meter, ( DJ , [Z] and to the antenna until the meter shows SWRreading less than dealer is qualified to assist you in the selection of the proper antenna to meet your application requirements. -
Page 3: Connecting The Power Cords
A short "Ioaded" whip antenna is more convenient to install on your automo- bile, although the efficiency is less than a full quarter wave whip antenna. For marine installation, consult your dealer for information regarding an adequ- ate grounding system and prevention of electrolysis between fittings on the hull and water. -
Page 4: Controls And Functions
When transmitting, hold the mic about 2 inches from your mouth and speak clearly in a normal voice. The mic included with the PRO 540e is a detachable, Iow impedance, dynamic type. 7. SjRFjSWR METER - This lED meter shows the relative strength of the received signal or the RF output and the Standing Wave Ratio of your an- tenna. -
Page 5: Channel Selector
9. CHANNEL SELECTOR mission and reception. communications between stations operating under different license. Chan- nel 9 has been reseNed by the D.G.C for emergency communications in- volving the immediate safety of individuals or the immediate protection of property. Channel 9 also may be used to render assistance to a motorist. This is a D.G.C rule and applies to all operators of CB radios. -
Page 6: Operating Procedure To Receive
OPERATING PROCEDURE TO RECEIVE 1. Be sure that the power source, antenna and microphone are properly con- nected. 2. Turn the unit on by rotating the Volume control clockwise. 3. Set the channel selector switch to the desired channel. 4. Set the Volume control to a comfortable listening level. 5. -
Page 7: Troubleshooting
TROUBLE SHOOTING If your PRO 540e is not performing up to your expectations, please try these simple steps. Ifyou still cannot get satisfactory results after reading this manual and following the trouble shooting steps, please call your local dealer: Trouble Unit will not turn on. -
Page 8: Specifications
SPECIFICATIONS Channels: Frequency Range: Frequency Control: Frequency Tolerance: Operating Temp.: Microphone: Input Voltage: Current Drain: Size: Weight Antenna Connector: LEDMeter: TRANSMITTER Power Output Modulation: Freq. Response: Output Impedance: RECEIVER Sensitivity: Selectivity: Image Rejection: LF. Frequency: RF Gain Control: Automatic Gain: Noise Blanker: Squelch: Audio Output Power:... - Page 9 MEMO...
-
Page 10: Warranty
NSW 2208 ("SANTRONIC"). ELEMENTSOF WARRANTY. SANTRONICwarrants, for the duration of this warranty, its UNIDEN CB Product to be free from defects in materials and craftsman$hip with only the limitation or exclusions set out below. WARRANTY DURATION. This Warranty shall terminate and be of no further...
