Provide a copy of these Instructions to the end user of this product. These Instructions provide important
Dealer /
operating and safety information for proper usage of this product. Demonstrate the proper use of the
Installer:
product with the end user. Have the end user demonstrate that they understand the proper use of the
product.
Read and follow all instructions included in this manual. Ask your Dealer / Installer for assistance if you do
End User:
not understand the proper use of the product. Never remove any decals from the product.
Use with 10 bolt 30686 base rails ONLY. Base Rails are not included with this kit.
Caution: You must remove backing paper on rubber insulator pads to properly install. Once backing paper is
removed and the rubber pads are installed; it is PERMANENT and cannot be removed. ONLY Install on the
brackets and base rails. DO NOT install rubber insulator pads on the truck bed.
WARNING! Never exceed the
towing capacity of the tow vehicle.

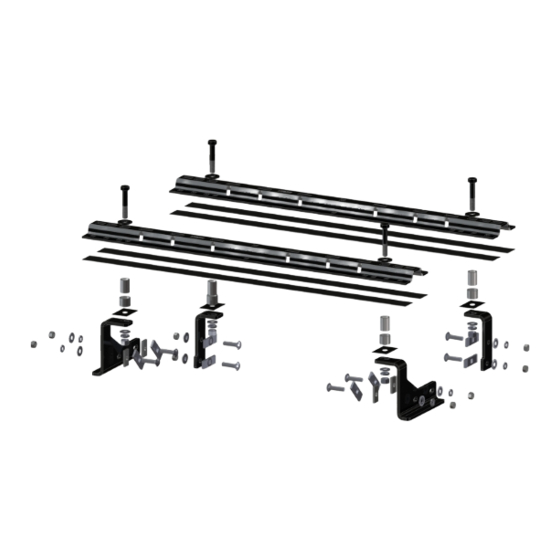

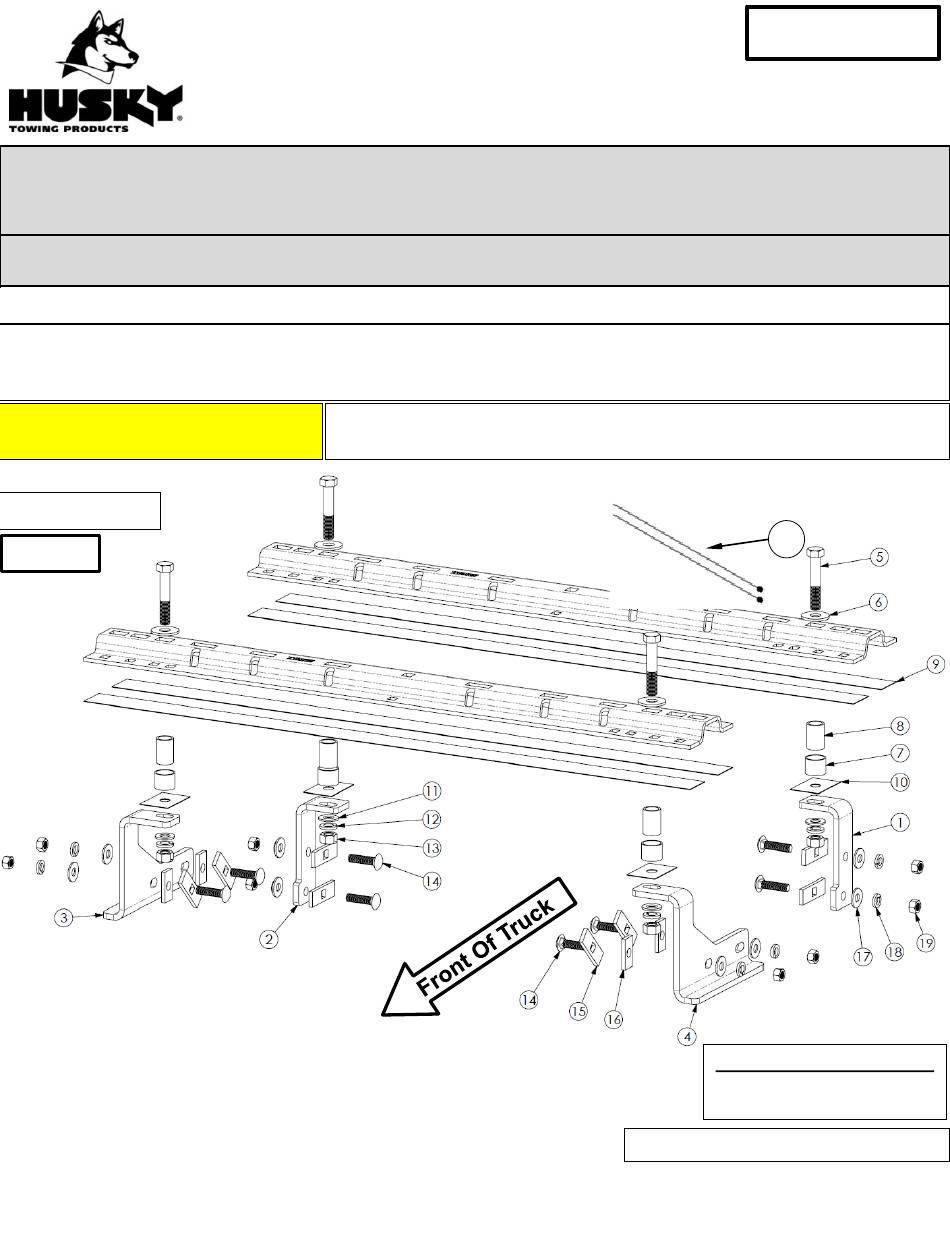

Parts Diagram
Figure: 1
TOOLS
3/16" drill
1/2" Socket & Open End Wrench
17/32" drill
5/8" Socket & Open End Wrench
21/32" drill
Torque Wrench
1-5/16" drill
"C" Clamps
Assembly, Installation, Operation and
Maintenance Instructions
Ford F150 4 Bolt Custom
Installation Bracket Kit.
Center Bolt Kit 32059 (sold separately) must be used when towing with a
26K hitch, Goose Neck, or Maneuvering System.
P/N: 32858
20
Hardware Torque Values:
1/2" to 75 lb-ft
5/8" to 150 lb-ft
Do NOT use with base rail # 31323.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Husky 32858
Summary of Contents for Husky 32858
- Page 1 P/N: 32858 Assembly, Installation, Operation and Maintenance Instructions Ford F150 4 Bolt Custom Installation Bracket Kit. Provide a copy of these Instructions to the end user of this product. These Instructions provide important Dealer / operating and safety information for proper usage of this product. Demonstrate the proper use of the Installer: product with the end user.
- Page 2 Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc. HUSKY TOWING PRODUCTS does its best to communicate tow vehicle manufacturer changes; however, it is ultimately the responsibility of the installer to...
- Page 3 (10 Bolt Base Rails # 30686) 22” 26-1/2” 5-1/2’ BOX 26-1/2” 6-1/2’ BOX Use the 3 slot 26-1/2” 8’ BOX from the end of the base rail to drill hole for 5/8” bolt in both rail locations. Diagonal measurements must be the same both Forward directions as shown.
- Page 4 Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc. HUSKY TOWING PRODUCTS does its best to communicate tow vehicle manufacturer changes; however, it is ultimately the responsibility of the installer to prevent damage due to installation.
- Page 5 13. Check that the 3/16” drilled holes align with slots of all brackets (#1,#2,#3,#4) .and enlarge them with a 1-5/16" drill. Place spacer tube (#8) & nylon tube (# 7) above bracket through bed on drilled location as shown in figure.5A .
- Page 6 Husky Towing Products and LKQ Specialty Products Group with proof of purchase by the original purchaser. The original purchaser shall pay all transportation and shipping costs associated with the return of the defective product and the defective product shall become the property of LKQ Specialty Products Group.
