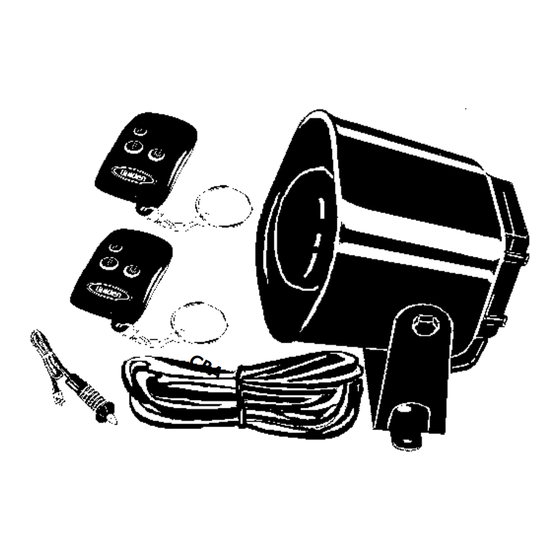

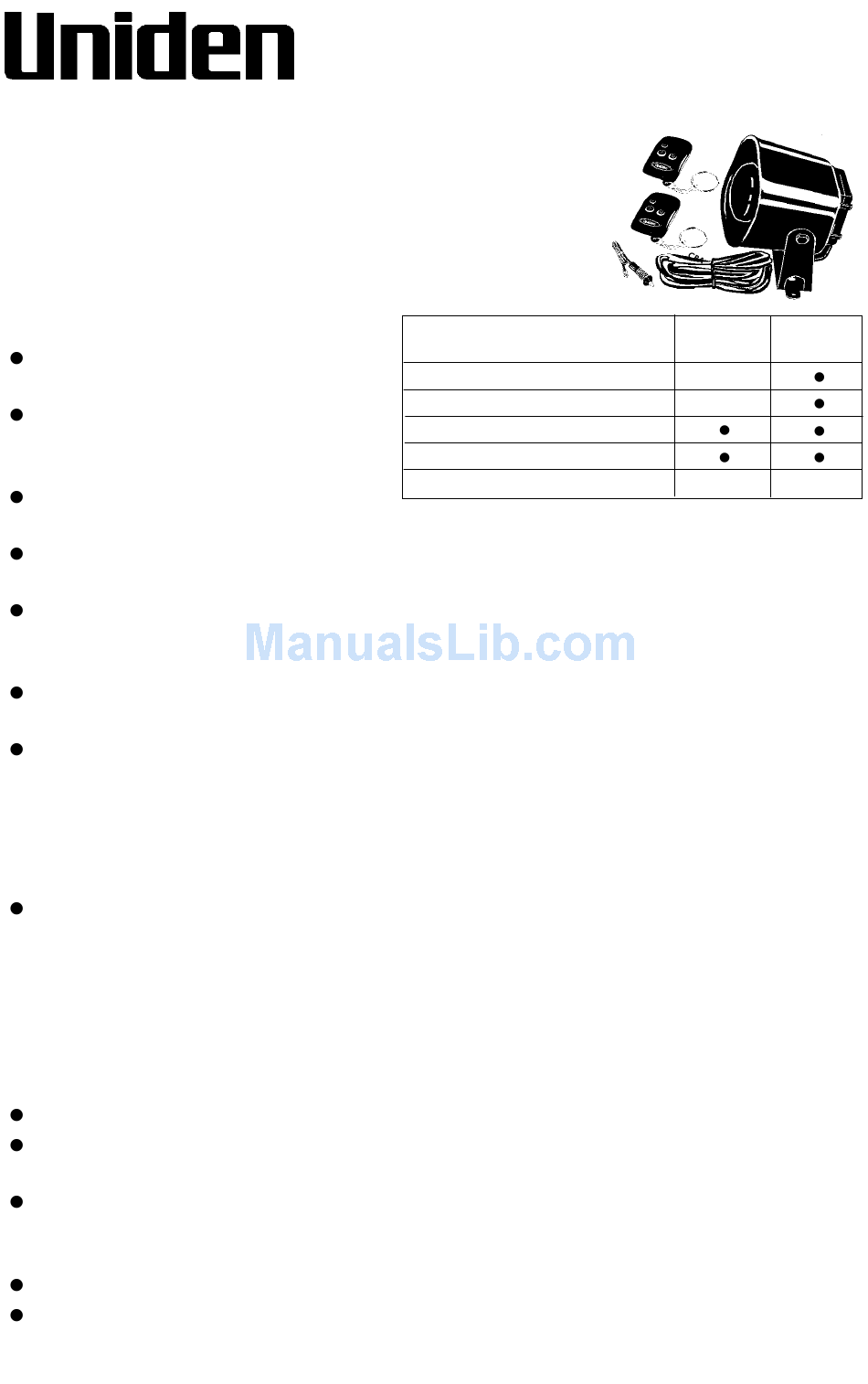

Self-Contained, RF Remote-Controlled Vehicle Security System
Rechargeable backup battery capability
3-channel transmitter
With rolling code & code learning technology
STANDARD FEATURES
RF Remote Control — Comes with
slim-line transmitter.
RF Panic Alert — Pressing
transmitter button #1 for 3 seconds
will sound the siren.
Quiet Mode — Pressing transmitter
button #2 followed by button #1 will arm or disarm the alarm without chirping.
Audio Confirmation — Siren chirps once when armed, twice when disarmed, and
three times for zone override (such as a door is open when armed).
Multi-use Remote Control — Transmitter button #2 can also be used to open or
close a garage door when used with the optional SEA910 receiver or control another
Uniden VS1100XR or VS2100XR.
Alarm Status LED — The LED will indicate whether the alarm is armed (LED
flashes) or disarmed (LED is off), also which sensor was triggered.
Unique Built-In Electromagnetic Shock Sensor (with pre-intrusion feature)
Revolutionary sensitivity-stable design ensures the sensor never needs readjusting
once it is installed. Constructed to eliminate contact problems associated with
corrosion, cold-soldering, and condensation. If there is a light shock to any part of
the vehicle, the siren will "chirp," but the alarm will not trigger. If a harder impact is
made to the vehicle, it will trigger the alarm and sound the siren.
Complete Protection for the Car — The alarm triggers when:
1. A drop in current from the car's battery is sensed (e.g. when domelight comes
on).
2. Shock or impact to the car is sensed.
3. Any attempt is made to start the car engine when the alarm is armed (starter
sensing).
4. Any door of the car is opened.
115dB Siren — Will blast for 25 seconds upon intrusion and will reset automatically.
Car's Door Lock/Unlock — Locks or unlocks the doors when the alarm is armed or
disarmed. (VS255XR only) Optional accessories may be required.
Parking Lights and Car Locator — One flash for arming, two flashes for disarming,
3 flashes for tamper zone overridden and 4 flashes for tamper indicator. (VS255XR
only)
Door Switch Input — Normally-open (N.O.) negative trigger input.
Backup Battery Capability — Use a rechargeable 9V Nickel-Cadmium battery (not
included) to provide backup power to the alarm.
®
VS235XR / VS255XR
Flashing Light Relay Output
Door Lock/Unlock Output
Alarm Status LED
Negative Door Input
Number of Wires
VS235XR / VS255XR
COMPARISON
VS235XR
VS255XR
6
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Uniden VS235XR
Summary of Contents for Uniden VS235XR
- Page 1 Multi-use Remote Control — Transmitter button #2 can also be used to open or close a garage door when used with the optional SEA910 receiver or control another Uniden VS1100XR or VS2100XR. Alarm Status LED — The LED will indicate whether the alarm is armed (LED flashes) or disarmed (LED is off), also which sensor was triggered.
-
Page 2: Zone Bypass
Should you wish to bypass your alarm's shock sensor, first press button #1 to arm the alarm. The siren chirps and the parking lights flash once (three times if a zone is bypassed) (no flash for the VS235XR) to confirm armed. Within three seconds, press button #2. The siren chirps three times and the parking lights flash three times (no flash for the VS235XR) to confirm shock sensor is bypassed. -
Page 3: Dual-Stage Shock Sensor
Turning the ignition key ON will trigger the alarm for 30 seconds. The optional Engine Immobilizer prevents the car from being started. If the shock sensor detects light taps on the car, it will trigger the pre-intrusion alert (the siren chirps three times, and the parking lights flash three times [lights flash for VS255XR only]) to warn potential thieves and vandals. -
Page 4: Appendix 1 - Understanding The Siren Chirps And Light Flashes
A. Procedure: (1) Disarm the alarm. (2) Turn the ignition switch ON/OFF 4 times within 15 seconds. (3) Within 15 seconds, hold the first transmitter, and then push buttons #1 and #2 together until 1 chirp confirms the code is learned (approximately 4 seconds), and that all previous transmitter codes have been deleted. -
Page 5: Troubleshooting
Important: Do not make any repairs or adjustments to any component of the transmitter or the alarm other than changing the battery or checking the shock sensor adjustment as described. INSTALLATION MANUAL CONNECTION DIAGRAM * VS235XR comes with 6-wires only... -
Page 6: General Considerations
GENERAL CONSIDERATIONS INSTALLATION CONSIDERATIONS Important: Disconnect the fuse from alarm's red wire before beginning the installation. 1. The alarm comes with a U-shaped mounting bracket which provides a solid mounting for the main unit. The main unit should be located in an inconspicuous place under the hood as far away from the engine as possible. - Page 7 Fig. 3— Dual-wire parking light systems To ORANGE WIRE Note: Uniden SEA865 relays already have the optional SP898 diodes fitted. BLACK WIRE — To chassis ground CHOOSE A GOOD CHASSIS GROUND LOCATION. If the ground is not connected properly, the alarm may act as if armed, but not be able to sound the siren.
-
Page 8: Adjusting The Shock Sensor
OPTIONAL ACCESSORIES: The Uniden policy is one of continual development and improvement. For that reason, Uniden reserves the right to change specifications without notice. Fig. 7 — Plugging in the LED switch possible codes, up to 4 transmitters can be learned.
