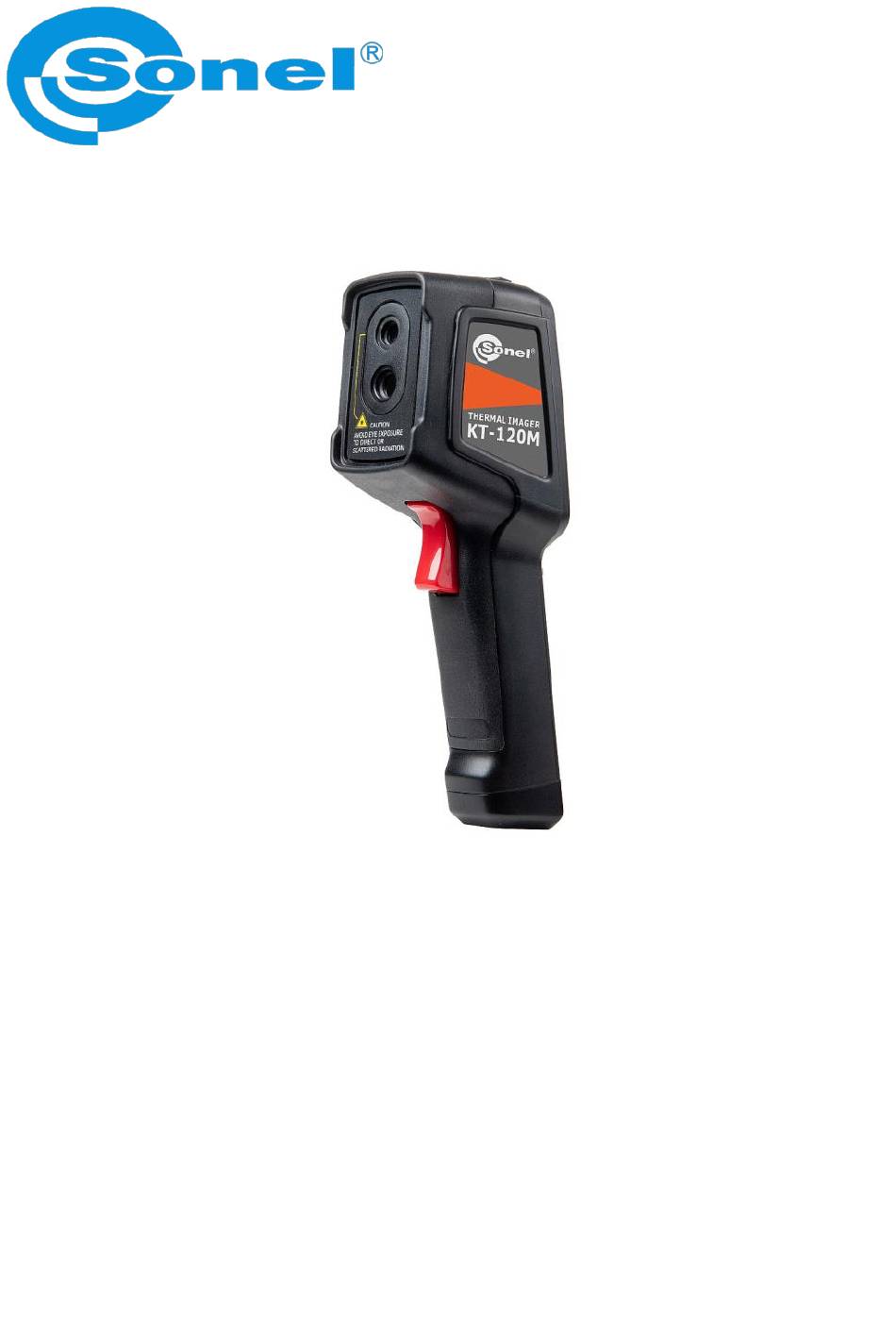

- Page 1 USER MANUAL THERMAL IMAGER KT-120M...
- Page 3 USER MANUAL THERMAL IMAGER KT-120M SONEL S.A. Wokulskiego 11 58-100 Świdnica, Poland Version 1.00 28.05.2020...
- Page 4 Please acquaint yourself with the present manual in order to avoid measuring errors and prevent possible problems related to operation of the camera. All products of Sonel S.A. are manufactured in accordance with Quality Management System which is approved to ISO9001:2008 for the design, manufacturing, and servicing.
-
Page 5: Table Of Contents
6.1 General rules for using Li-Ion rechargeable batteries ..........8 7 Cleaning and maintenance ................9 8 Storing ......................9 9 Dismantling and disposal ................10 10 Specifications ....................10 11 Standard accessories ..................11 12 Manufacturer ....................11 KT-120M – USER MANUAL... -
Page 6: Safety
Repairs may be performed only by an authorised service point. KT-120M thermal camera is designed to measure and record the images in the infrared. It is designed to provide the user with maximum performance and safety during the work. However, the following guidelines... -
Page 7: Functional Description
POWER button Strap holder DOWN button Tripod mount Display During operation of the camera, the infrared image is dis- played in real time on the screen. The temperature of the object is displayed for the whole time. KT-120M – USER MANUAL... -
Page 8: Quick Start
Short press the trigger to freeze the image. Press the trigger again and return to the real-time interface. KT-120M – USER MANUAL... -
Page 9: Files - Viewing, Deleting
Low battery. Reuse battery after charging. Boot failure. External power source plug is not inserted Pull the plug and reinsert it properly. properly. IR image is not Lens is misted up or dirty. Clean lens. clear. KT-120M – USER MANUAL... -
Page 10: Menu, Settings, Functions
Any interference in the structure of Li-ion battery pack may cause its damage. This may result in the ignition or explosion. A short-circuit of the battery poles "+" and "-" may permanently damage the battery pack or even cause its fire or explosion. KT-120M – USER MANUAL... -
Page 11: Cleaning And Maintenance
allowed are storage temperatures specified in technical specifications, in order to avoid complete discharging of rechargeable batteries during prolonged storage, charge them once in a while (recommended time: 3 months). KT-120M – USER MANUAL... -
Page 12: Dismantling And Disposal
(max. charging time 2.5 h), AC adapter 110-230 V (50/60 Hz) Operating temperature -10°C...50°C Storage temperature -40°C...70°C Ingress protection IP54 Certification CE. ROHS, FCC Weight approx. 0.35 kg Dimensions 194 x 61.5 x 76 mm KT-120M – USER MANUAL... -
Page 13: Standard Accessories
58-100 Świdnica Poland tel. +48 74 858 38 60 fax +48 74 858 38 09 e-mail: bok@sonel.pl web page: www.sonel.pl NOTE! Only the manufacturer is authorized to perform service repairs. Manufactured in PRC, commissioned by SONEL S.A. KT-120M – USER MANUAL... - Page 14 NOTES KT-120M – USER MANUAL...
