Avaya™ M460ML-SPV Installation Guide
Safety Information
Catalog No. DO0730 Rev.A May 2003
The Avaya M460ML-SPV is a Supervisor module for the Avaya™ C460 switch.
Figure 1

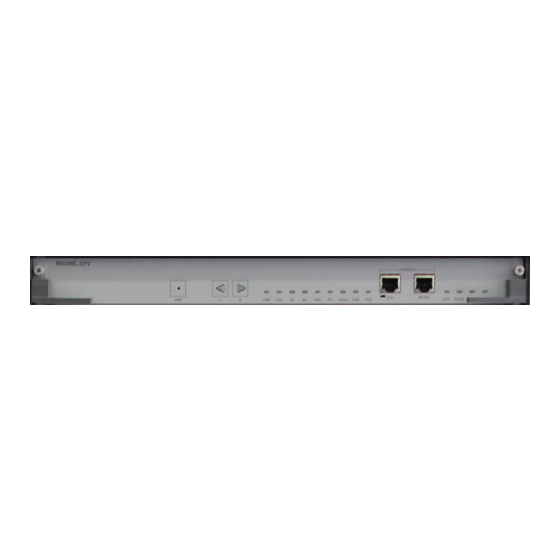

M460ML-SPV Front Panel
Caution: The Avaya C460 switch and modules contain components sensitive to
electrostatic discharge. Do not touch the circuit boards unless instructed to do so.
Caution: Do not leave any slots open. Cover empty slots using the blanking plates
supplied.
Caution: Do not insert any objects into the C460 chassis other than specifically
designed Avaya products.
Danger: Keep your fingers and other objects clear of the fan module. The fans are on
whenever the power is on in the chassis.
