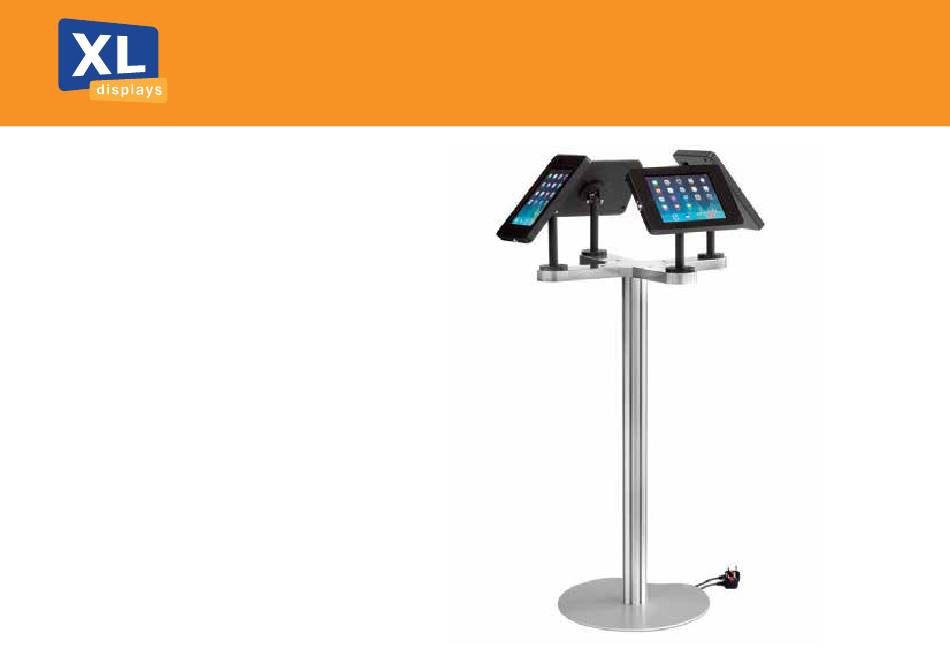

- Page 1 www.xldisplays.co.uk 01733 511030 iPad Quad Assembly Instructions...
- Page 2 iPad Quad WARNING – large base plate is heavy (7.5kg). Carefully lay assembled base and post horizontally on floor. Carefully position base plate over 8-way post and align 4 off fixing NB – If you are not using cable management for charging, holes to threads of post (ensuring the countersunk holes are please carefully stand base and post upright and proceed to uppermost).
- Page 3 Stand base and post upright ensuring leads are kept clear of foot pads. Feed figure 8 heads of power leads through central hole of bottom support plate and carefully place plate onto post. Align 4 holes to threads inside post at desired display angle.
- Page 4 Insert and tighten 4 off base plate screws to secure. Plug one figure 8 head into a USB Power Adapter (supplied with Apple NB – If you are not using cable management for charging, please carefully place iPad) and position into retaining bottom support plate onto post.
- Page 5 Carefully position and lower octagonal centre cover onto bottom support plate. Align two Unlock each iPad enclosure by side holes of cover to any thread fixings of bottom support plate. Insert and tighten two hex inserting key into security lock and socket screws to secure octagonal centre cover.
- Page 6 Lift fascia out of enclosures. Insert cables (supplied with Apple iPad) into all holders, allowing 10cm to remain “free” at charge/sync connector end by gently pressing into retaining moulding. Feed USB end of charge/sync cables through middle of enclosures, below pin, so they protrude from bottom of support columns.
- Page 7 Carefully position and slide top support plate onto end of bottom Depress all lock support plate, ensuring the internal cables do not interfere with this buttons on underside assembly. of bottom support plate and insert and Repeat stages 12 and 13 for remaining iPad holders. tighten remaining four hex socket screws to NB –...
- Page 8 Plug charge/sync cable into one iPad and place inside enclosure, gently press all four corners of iPad down into mouldings to hold. Repeat for remaining iPads. NB – If you are not using cable management for charging, unlock each iPad enclosure by inserting key into security lock and rotate ‘QUARTER TURN ONLY’...
