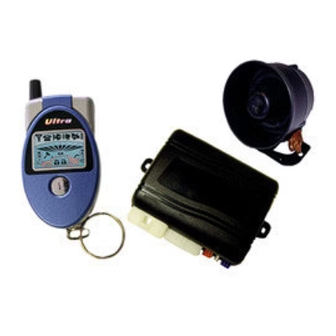

Ultra Start 4500 Installation Manual

Advanced 2-way remote vehicle starter with security system
Hide thumbs Also See for 4500:

Advertisement

Quick Links

INSTALLATION GUIDE
Firmware Version A7J
TECH SUPPORT
Western Canada 1 800 279-0636
United States: 1 866 698-5872
Canada. Bilingual Support: 1 800 268-0683
E-Mail: support@ultrastarters.com
Web Site: www.ultrastarters.com
Advanced 2-Way
Remote Vehicle Starter
With Security System
AUTOMATIC AND MANUAL
TRANSMISSION MODELS
WWW.ULTRASTARTERS.COM
See website for a full size printable version of this manual.
FCC/ID Notice
This device complies with Part 15 of the FCC rules. Operation
is subject to the following conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved
by the part responsible for compliance void the user's authority
to operate this devise.

Advertisement

Table of Contents
loading

Summary of Contents for Ultra Start 4500

  • Page 1 INSTALLATION GUIDE Firmware Version A7J TECH SUPPORT Western Canada 1 800 279-0636 United States: 1 866 698-5872 Canada. Bilingual Support: 1 800 268-0683 E-Mail: support@ultrastarters.com Web Site: www.ultrastarters.com Advanced 2-Way Remote Vehicle Starter With Security System AUTOMATIC AND MANUAL TRANSMISSION MODELS WWW.ULTRASTARTERS.COM See website for a full size printable version of this manual.
  • Page 2 TABLE OF CONTENTS 4500 Wiring Diagram Pre-Installation Components Recommended Pre-Installation Procedures Recommended Install procedures Wire Connectors 6 Pin Connector 14 Pin Connector 4 Pin Red Connector 4 Pin Blue Connector Jumper Selections Installation Basic Installation - Quick start Plugging In The Module...
  • Page 3: Wiring Diagram

    Installation Guide Starter (+) 30amp Output Heater (+) 30amp Output Main Power (+) 30amp Input Main Power (+) 30amp Input Selectable (+) 30amp Output Ignition 1 (+) 30amp Output (-)500ma Output FACTORY RE-ARM (-)500ma Output STARTER DISABLE (-)500ma Output FACTORY DISARM TRUNK RELEASE (-)500ma Output (-)500ma Output...
  • Page 4: Installation Tips

    INSTALLATION TIPS Components - Control module. - 2 way Remote transmitter. - Antenna with built in Program Button and LED’s. - 6 pin main harness with dual 30amp power inputs. - 14 pin harness. - 4 pin square harness. - 4 pin keyless entry harness. - 4 pin Aux.
  • Page 5 Installation Guide 6 Pin Power Connector Yellow Starter 30amp output Green Heater 30amp output 12 power 30amp input 12 power 30amp input Blue Ignition 1 30amp output White Selectable 30amp output 14 Pin Connector Yellow Re-Arm 0.75sec Pulse With Lock And On Shutdown. Orange (-) Output Negative While Locked - **Starter Program Mode.
  • Page 6 QUICK START INSTALL 6 Pin Power Connector Yellow Starter Output Green Heater Output 12 power Input 12 power Input Blue Ignition 1 Output White Selectable Output 14 Pin Power Connector Black System Ground Pink Brake Switch White Park Lights Green/White Hood Pin Blue/White Tach White/Blue...
  • Page 7 Installation Guide Programming Overview Program mode allows you to adjust the settings and options of your system. Your system has been intelligently designed by installers with years of experience. The system’s default settings do not require any program changes in most cases. However, this system does incorporate a highly advanced programming system that includes 4 menus with numerous options and settings that can be easily adjusted for custom installations and applications.
  • Page 8 PROGRAMMING Setting 1- Ignition Auto Lock 1 Ignition Lock & Unlock Enabled 1 Flash 2 Ignition Lock Only 2 Flashes *3 Ignition Auto Lock Disabled 3 Flashes Press the Program Button 1 time to select setting 1 (This will be confirmed by 1 LED flash) Press and hold the Program Button until you receive the appropriate # of park light flashes and siren chirps.
  • Page 9 Installation Guide Setting 1 - Service Mode (Valet Mode) 1 Secure Valet Active 1 Flash 2* Normal Valet Active 2 Flashes Press the Program Button 1 time to select setting 1 (This will be confirmed by 1 LED flash) Press and hold the Program Button until you receive the appropriate # of park light flashes and siren chirps. Release the Program Button.
  • Page 10 Enter Starter Program Mode - See Page 7 for details on entering program mode Setting 1- Special Door Lock/ Unlock Operations 1 Type `1 1 Flash 2 Type 2 2 Flashes 3* Normal Operation 3 Flashes Press the Program Button 1 time to select setting 1 (This will be confirmed by 1 LED flash) Press and hold the Program Button until you receive the appropriate # of park light flashes and siren chirps.
  • Page 11: Transmitter Programming

    Installation Guide Setting 8- Safety Start Mode 1 Safety ON 1 Flash Must press the start button twice to remote start vehicle 2* Safety OFF 2 Flashes Press the start button once to remote start vehicle. Press the Program Button 8 times to select setting 8 (This will be confirmed by 8 LED flashes) Press and hold the Program Button until you receive the appropriate # of park light flashes and siren chirps.
  • Page 12 OPERATIONS Transmitter Operation Press Once to Lock / Unlock Doors and arm/disarm the alarm. Press 2nd Time (within 3 sec.) and Hold for Constant Lock Output. Press and hold for 3 seconds to activate Panic Mode. Press again to disable panic when activated. While running with the key, press the button to activate Idle Mode.
  • Page 13: Other Features

    Installation Guide ATTENTION: THE SYSTEM MUST BE PLACED INTO SERVICE MODE BEFORE ANY UNDER HOOD SERVICING IS DONE TO THE VEHICLE. IT IS THE RESPONSIBILITY OF THE VEHICLE’S OWNER TO INSURE THAT THIS IS DONE. ACCIDENTAL STARTING WHILE VEHICLE IS BEING SERVICED. System Service Mode (Valet) - By Remote This feature will disable the system from the remote transmitter.
  • Page 14 OPERATIONS Lock Doors And Arm The Alarm 1. Press and release Button #1 on the Remote Transmitter. 2. The park lights will flash and the siren will chirp one time. 3. The remote will beep once and the doors will lock. 4.
  • Page 15 Installation Guide Remote Start 1.Press and release Button #3 on the Remote Transmitter. 2.The Park lights will flash and the siren will chirp one time. 3. The remote will beep 3 times and the Key Icon will begin flashing. 4.When the vehicle has started, the system will flash the park lights four times and then remain “On”...
  • Page 16: Relay Diagrams

    RELAY DIAGRAMS Negative Type Door Locks Vehicle Lock/Unlock Switch Green Positive Type Door Locks Fused +12V* Green Blue 5 Wire / Reverse Polarity Type Door Locks Green Blue Vehicle Lock/Unlock Switch * Always install an inline fuse on the power inputs to the relays. Do not use the power output on the keyless entry harness to supply power for relays.
