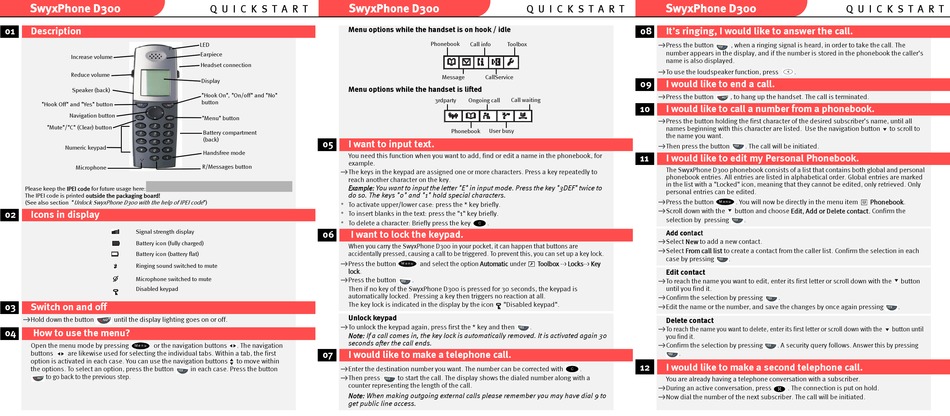

Swyx SwyxPhone D300 Quick Start

SwyxPhone D300
01

Description

Increase volume
Reduce volume
Speaker (back)
"Hook Off" and "Yes" button
Navigation button
"Mute"/"C" (Clear) button
Numeric keypad
Microphone
Please keep the IPEI code for future usage here:
The IPEI code is printed outside the packaging board!
(See also section " Unlock Swyxphone D300 With The Help Of Ipei Code
02

Icons in display

Signal strength display
Battery icon (fully charged)
Battery icon (battery flat)
Ringing sound switched to mute
Microphone switched to mute
Disabled keypad
03

Switch on and off

t
Hold down the button until the display lighting goes on or off.
04

How to use the menu?

Open the menu mode by pressing or the navigation buttons
buttons are likewise used for selecting the individual tabs. Within a tab, the first
option is activated in each case. You can use the navigation buttons
the options. To select an option, press the button
to go back to the previous step.
SwyxPhone D300
Q U I C K S T A R T
Menu options while the handset is on hook / idle
LED
Earpiece
Headset connection
Display
Menu options while the handset is lifted
"Hook On", "On/off" and "No"
button
"Menu" button
Battery compartment
(back)
05

I want to input text.

Handsfree mode
You need this function when you want to add, find or edit a name in the phonebook, for
example.
R/Messages button
t
The keys in the keypad are assigned one or more characters. Press a key repeatedly to
reach another character on the key.
Example: You want to input the letter "E" in input mode. Press the key "3DEF" twice to
do so. The keys "0" and "1" hold special characters.
•
")
To activate upper/lower case: press the * key briefly.
•
To insert blanks in the text: press the "1" key briefly.
•
To delete a character: Briefly press the key
06

I want to lock the keypad.

When you carry the SwyxPhone D300 in your pocket, it can happen that buttons are
accidentally pressed, causing a call to be triggered. To prevent this, you can set up a key lock.
t
Press the button
lock.
t
Press the button
Then if no key of the SwyxPhone D300 is pressed for 30 seconds, the keypad is
automatically locked. Pressing a key then triggers no reaction at all.
The key lock is indicated in the display by the icon
Unlock keypad
t
To unlock the keypad again, press first the * key and then
Note: If a call comes in, the key lock is automatically removed. It is activated again 30
seconds after the call ends.
. The navigation
07

I would like to make a telephone call.

to move within
t
in each case. Press the button Enter the destination number you want. The number can be corrected with
t
Then press
counter representing the length of the call.
Note: When making outgoing external calls please remember you may have dial 9 to
get public line access.
Q U I C K S T A R T
Phonebook Call info Toolbox
Message CallService
3rdparty Ongoing call Call waiting
Phonebook User busy
.
and select the option Automatic under Toolbox --> Locks--> Key
.
"Disabled keypad".
.
to start the call. The display shows the dialed number along with a
SwyxPhone D300
08 It's ringing, I would like to answer the call.
t
Press the button , when a ringing signal is heard, in order to take the call. The
number appears in the display, and if the number is stored in the phonebook the caller's
name is also displayed.
t
To use the loudspeaker function, press
09

I would like to end a call.

t
Press the button , to hang up the handset. The call is terminated.
10

I would like to call a number from a phonebook.

t
Press the button holding the first character of the desired subscriber's name, until all
names beginning with this character are listed. Use the navigation button
the name you want.
t
Then press the button . The call will be initiated.
11

I would like to edit my Personal Phonebook.

The SwyxPhone D300 phonebook consists of a list that contains both global and personal
phonebook entries. All entries are listed in alphabetical order. Global entries are marked
in the list with a "Locked" icon, meaning that they cannot be edited, only retrieved. Only
personal entries can be edited.
t
Press the button . You will now be directly in the menu item
t
Scroll down with the button and choose Edit, Add or Delete contact. Confirm the
selection by pressing .
Add contact
t
Select New to add a new contact.
t
Select From call list to create a contact from the caller list. Confirm the selection in each
case by pressing .
Edit contact
t
To reach the name you want to edit, enter its first letter or scroll down with the
until you find it.
t
Confirm the selection by pressing
t
Edit the name or the number, and save the changes by once again pressing
Delete contact
t
To reach the name you want to delete, enter its first letter or scroll down with the
you find it.
t
Confirm the selection by pressing
.
12

I would like to make a second telephone call.

.
You are already having a telephone conversation with a subscriber.
t
During an active conversation, press
t
Now dial the number of the next subscriber. The call will be initiated.
Q U I C K S T A R T
.
to scroll to
Phonebook.
button
.
.
button until
. A security query follows. Answer this by pressing
. The connection is put on hold.
