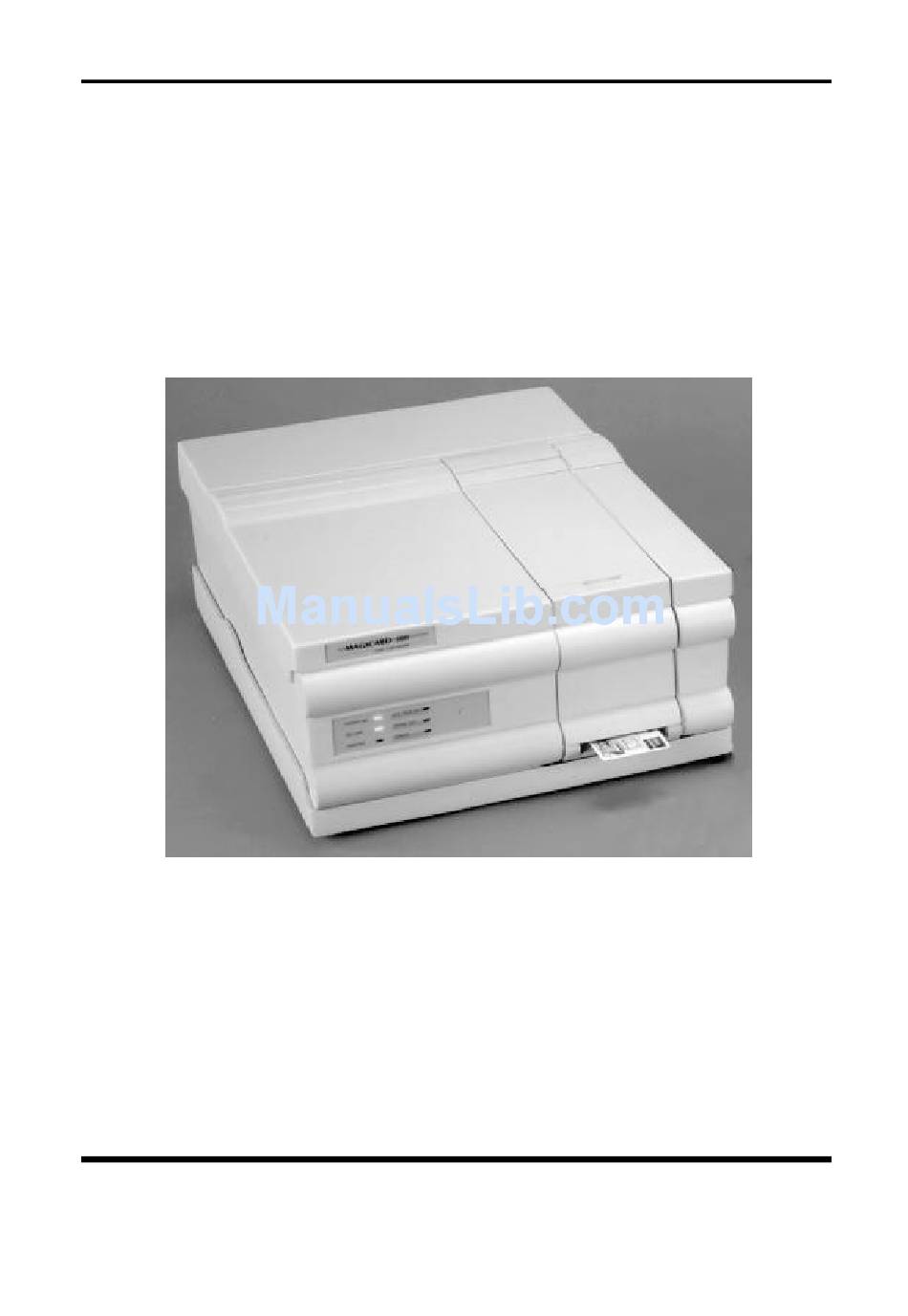

  • Page 1 Ultra Electronics Card Systems MAGICARD 300 Color Printer MAGICARD 300 MAGICARD 300plus MAGICARD Sprinter Printer/Software Setup MAGICARD Color Printer (inc. Mag Encoding options) Quick Start Guide Quick Start Guide Iss. 03 Dec 97 3461-22-02 Stock No. M9003-728 Page 1...
  • Page 2 Quick Start Guide Setting up your MAGICARD Color Printer Unpack and install the printer Preparing a Location for the Printer Removing the Printer from the Box Checking the Package Contents Install the Dye Film Load the Plastic Cards Connect the Printer to a Power Supply Test the Printer Operation Install the Parallel Interface Cable and Ultra Secure Key Load the supplied WINDOWS Driver software.
  • Page 3 Ultra Electronics Card Systems Quick Start Guide MAGICARD Color Printer Page 3...
  • Page 4: Preparing A Location For The Printer

    Quick Start Guide A clean, level surface. Adequate space for: - opening the Card Collection Door - opening the Top Cover - cable access at the rear. - allowance for air circulation. An adequately ventilated room. Location Requirements for your printer: Page 4 Ultra Electronics Card Systems Preparing a Location...
  • Page 5 Ultra Electronics Card Systems An adequate power supply. Ambient temperature +10 to +30 deg C. Relative Humidity 20/70% RH. Protection from direct sunlight and Card Collection Door chemicals. Protection from abrupt temperature changes. MAGICARD Color Printer Quick Start Guide Top Cover Page 5...
  • Page 6: Removing The Printer

    Quick Start Guide Removing the Printer from the Box Carefully open the box and remove any accessories. Open the front door and remove the metal shipping clip from the chassis. Page 6 Ultra Electronics Card Systems Place on a smooth, level table and remove the polyethylene container.
  • Page 7: Package Contents

    Ultra Electronics Card Systems The MagiCard Color Printer A Roll of Dye Film and a Take-up Core (Only supplied as standard with certain Models) MAGICARD Color Printer Checking the Package Contents Locate each item as listed below: The Card Cassette A Power Cord with Molded Plug for your Country Quick Start Guide...
  • Page 8 Quick Start Guide Envelope containing this Quick Start Guide and the PrintMAGIC WINDOWS Driver 3.5" floppy disk. Page 8 Ultra Electronics Card Systems Envelope containing 5 Cleaning Cards and 1 Thermal Printhead Cleaning Pen. MAGICARD Color Printer...
  • Page 9: Install The Dye Film

    Ultra Electronics Card Systems Open the Printer Cover by lifting the "Dzus" fastener ring and turning a quarter turn anti-clockwise. Remove the Dye Film carrier. Replace the Film Carrier MAGICARD Color Printer Quick Start Guide Install the Dye Film Open the Dye Film package. Fit the dye film on the lower boss, observing the correct orientation of the dye film.
  • Page 10 Quick Start Guide Manually turn the Spur Gear until the slots on the core engage with the lugs. Pull about 6" of dye film off the roll of dye film, observing that it should be coming off the top of the roll, as per the label illustrations.
  • Page 11 Ultra Electronics Card Systems Avoid touching the tip of the thermal printhead with your hands. Feed the leading edge of the dye film over the tip of the Thermal Printhead and beneath the two guide bars, where fitted. (Refer to the diagram on the side). MAGICARD Color Printer Quick Start Guide Fasten the end of the dye film onto the...
  • Page 12: Plastic Cards

    Quick Start Guide Load the Plastic Cards Flex a stack of plastic cards, to make sure they are not 'stuck' together. Avoid touching the surfaces to be printed. Remove the 'tacky' roller before each batch of 100 cards, by putting your fingers beneath it and "snapping"...
  • Page 13 Ultra Electronics Card Systems Install the Cassette into the Printer. Close the Printer Door MAGICARD Color Printer Quick Start Guide Close the Printer Cover and secure the front latch. Page 13...
  • Page 14: Connect The Printer

    Quick Start Guide Connect the Printer to a Power Supply Locate the Mains Voltage Selector Switch on the rear panel and check that it is correct for your country - select 115V or 230V. Plug in the Power Cord. Plug the other end into a Power Supply socket.
  • Page 15: Printer Operation

    Ultra Electronics Card Systems Print an Internally-Generated Test Card to make sure your printer is working correctly: At the rear of the printer, locate the TEST Push-button. This is located in the rear panel, just above the Centronics parallel interface connector. In early models, it may be located through a small hole in which case it may be operated by means of a small insulated...
  • Page 16 Quick Start Guide Ultra Electronics Card Systems the internal software version is printed on the test card. Page 16 MAGICARD Color Printer...
  • Page 17 Ultra Electronics Card Systems Install the parallel Interface Cable and Ultra Secure Key Switch the printer OFF. Locate the Parallel Interface connector on the rear panel. Note the position for the Ultra Secure Key at the rear of the Magicard Printer. MAGICARD Color Printer Quick Start Guide Plug a good quality, screened Centronics...
  • Page 18: Windows Driver

    Quick Start Guide Procedure to be followed if your PC uses Start WINDOWS and in the MAIN group, select and open the Control Panel window: Select and open the PRINTERS icon: Page 18 Ultra Electronics Card Systems Install the WINDOWS Driver WINDOWS 3.1 or 3.11.: MAGICARD Color Printer...
  • Page 19 Ultra Electronics Card Systems Select the ADD>> button, the List of Printers will appear. In the List of Printers, select Install Unlisted or Updated Printer: Select the Install... button. A dialog box appears, instructing you to Insert unlisted, updated or vendor-provided printer driver disk in: Drive A:\ MAGICARD Color Printer Quick Start Guide...
  • Page 20 Quick Start Guide Insert the PrintMAGIC WINDOWS Driver Disk into the floppy disk drive A. Select the OK button: Another dialog window appears, listing the PrintMagic MAGICARD Printer Driver. Select the PrintMagic Printer. Select the OK button: Page 20 Ultra Electronics Card Systems MAGICARD Color Printer...
  • Page 21 Ultra Electronics Card Systems After about 30 seconds, the Printers window appears and the PrintMagic MAGICARD Printer on LPT1 should have been added to the Installed Printers list. Press the Set as Default Printer button. DO NOT check the Use Print Manager check box. Select the Close button.
  • Page 22 Quick Start Guide Procedure to be followed if your PC uses Start the PC and from the desktop select the My Computer folder. Select and open the Printers folder: Select and open the Add Printer icon. Page 22 Ultra Electronics Card Systems Install the WINDOWS Driver WINDOWS 95.:...
  • Page 23 Ultra Electronics Card Systems Select the Next> button: Select the Have Disk button: MAGICARD Color Printer Quick Start Guide Page 23...
  • Page 24 Quick Start Guide Insert the PrintMagic WINDOWS Driver Disk into the PC Drive A. Select the OK button: Page 24 Ultra Electronics Card Systems MAGICARD Color Printer...
  • Page 25 Ultra Electronics Card Systems Select the Next> button: Select the desired port (usually LPT1) and select the Next> button: MAGICARD Color Printer Quick Start Guide Page 25...
  • Page 26 Quick Start Guide You may then be offered the choice of which printer to use as the default printer. Select the PrintMagic MAGICARD Printer and then select the Next> button: If you opt to print a test page, do so only if the printer is connected, switched ON, loaded with cards and dye film and ready to run.
  • Page 27: Printer Setup

    Ultra Electronics Card Systems Printer Setup Printer Setup procedure to be followed if the default setting differ from your requirement: Printer Setup Changes to the printer setup options performed via the Control Panel are non-volatile, until subsequently changed, even though the PC may be switched off after use. Most software applications provide the means to change the printer setup but be warned - these settings may prove to be volatile with some applications and your settings may be lost.
  • Page 28 Quick Start Guide Image Aspect On this page, the card orientation may be set. There are four options:- Standard Rotate 180 Degrees Full Card Full Card 180 Degrees Opposing Rotation Between Sides is only significant if interfacing to a Magicard Flip Double- Sided printing model.
  • Page 29 Ultra Electronics Card Systems Quick Start Guide Colour Format / Film Dye Film Fitted tells the printer which kind of dye film you have installed. The dye film supplied with your printer is five panel UR1 dye film. Leave the default selection at YMCKO - Resin.
  • Page 30 Quick Start Guide Ultra Electronics Card Systems Overcoat Page 1 - Overcoat check box can be used to turn overcoating on and off. Page 1 - Ultra Secure check box can be used to turn this security feature on and off. An Ultra Secure key must of course be fitted to enable this feature.
  • Page 31 Ultra Electronics Card Systems Quick Start Guide Card Settings Duplex Mode - when checked, will convert the driver to allow double-sided printing. this function only applies to Magicard Flip models so leave this checkbox switched off. Manual Flip Mode - allows operators, running non-Flip models, to manually turn the printed card over and reinsert for printing on the back.
  • Page 32 Quick Start Guide Ultra Electronics Card Systems X Start Position - This function allows the operator to adjust the position of the start of the image. A 1% shift is approximately 0.1mm. For interfacing to earlier models, leave set at the default value of 50, to prevent file errors.
  • Page 33 Ultra Electronics Card Systems Mag Encoding using the WINDOWS Driver If you wish to use the magnetic encoder from within a WINDOWS application, create a text string with a tilde (~) symbol at the beginning and place the string anywhere on the image, using a black true type font.
  • Page 34 Quick Start Guide Verifying Computer to Printer Communication in WINDOWS The simplest way to verify correct operation is to print a test image from a WINDOWS application: Ensure that the Printer is switched ON and that the POWER ON and ON LINE indicators are lit.
  • Page 35: In Case Of Difficulty

    Networking Magicard Printers Windows Drivers - Important Installation Information Configuring your PC to use ECP Protocol Setting-up Procedure for the MAGICARD 300plus Thermal Printhead MAGICARD PCinside - Interconnection MAGICARD PCinside - Installation of a CD-ROM Drive MAGICARD PCinside - Selection of a Video Monitor...
  • Page 36: Thermal Printhead Cleaning

    Quick Start Guide It is very important that the MagiCard Printer be cleaned at regular intervals in accordance with these instructions. Cleaning Cards and a Cleaning Pen are included with every printer shipped Thermal Printhead Cleaning It is recommended that the Thermal Printhead be cleaned after every roll of dye film, i.e. after every 250 cards printed.
  • Page 37 Ultra Electronics Card Systems 4. Whilst changing the dye film, and with the dye film removed, gently wipe the tip of the Thermal Printhead, using a gentle side-to-side action, with the Felt Tip Cleaning Pen supplied. 5. Using a tissue, remove any deposits from the pen tip and replace the pen cap to avoid solvent evaporation.
  • Page 38 Quick Start Guide 1. Hinge down the Pull-down Card Tray. Hinge down the Front Cover and lift up the Top Cover to the vertical position, and remove the Cassette. Switch ON the power supply. 2. Get the motor to turn the rollers by operating the Cover Microswitch in the hinged cover, by hand.
  • Page 39 Ultra Electronics Card Systems Cleaning the Optics 1. Using a small, soft lens brush, gently remove dust and debris from the visible mechanism and the brushstrips. Ensure the two light emitting diodes (LED's) adjacent to the Thermal Printhead, are clean and not obscured. 2.
  • Page 40: Led Error Codes

    Quick Start Guide Ultra Electronics Card Systems LED Error Codes The MAGICARD printer has extensive error trapping facilities, to provide the operator or service agent with fault diagnosis information. ON LINE and ERROR Indicator Flashing The ON LINE indicator flashing indicates that the printer is receiving and processing a file of image data.
  • Page 41 Ultra Electronics Card Systems Quick Start Guide Notice The information contained in this document is subject to change without notice. Ultra Electronics Limited shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance or use of this material. This document contains proprietary information belonging to Ultra Electronics Limited and may not wholly or partially be copied, stored in a data retrieval system, disclosed to third parties or used for any purpose other than that for which it was supplied, without the express written authority of Ultra...
  • Page 42 Quick Start Guide Limited Warranty Information 1) Coverage: Ultra Electronics Ltd Warrants that the MAGICARD printer shipped with this Warranty statement will conform to the manufacturers specifications and be free from defects in materials or workmanship for a period of 12 months from the date of original purchase by the user, but there are additional conditions on the printhead Warranty (see para 2).
  • Page 43 Ultra Electronics Card Systems Quick Start Guide Fax: +44 (0)1305 777904 MAGICARD Color Printer Page 43...
  • Page 44: Ec Declaration Of Conformity

    Weymouth, Dorset DT4 9XD England. MAGICARD 300 Color Card Printer. 3461-0002 (basic model) 3471-0002 (+Mag Encoding option) MAGICARD 300plus Color Card Printer. 3493-1006 (basic model) 3493-1002 (+Mag Encoding option) 3493-0004 (+Chip Encoder contacts) IEC 950/EN60950 Safety of information technology equipment including electrical business equipment.
