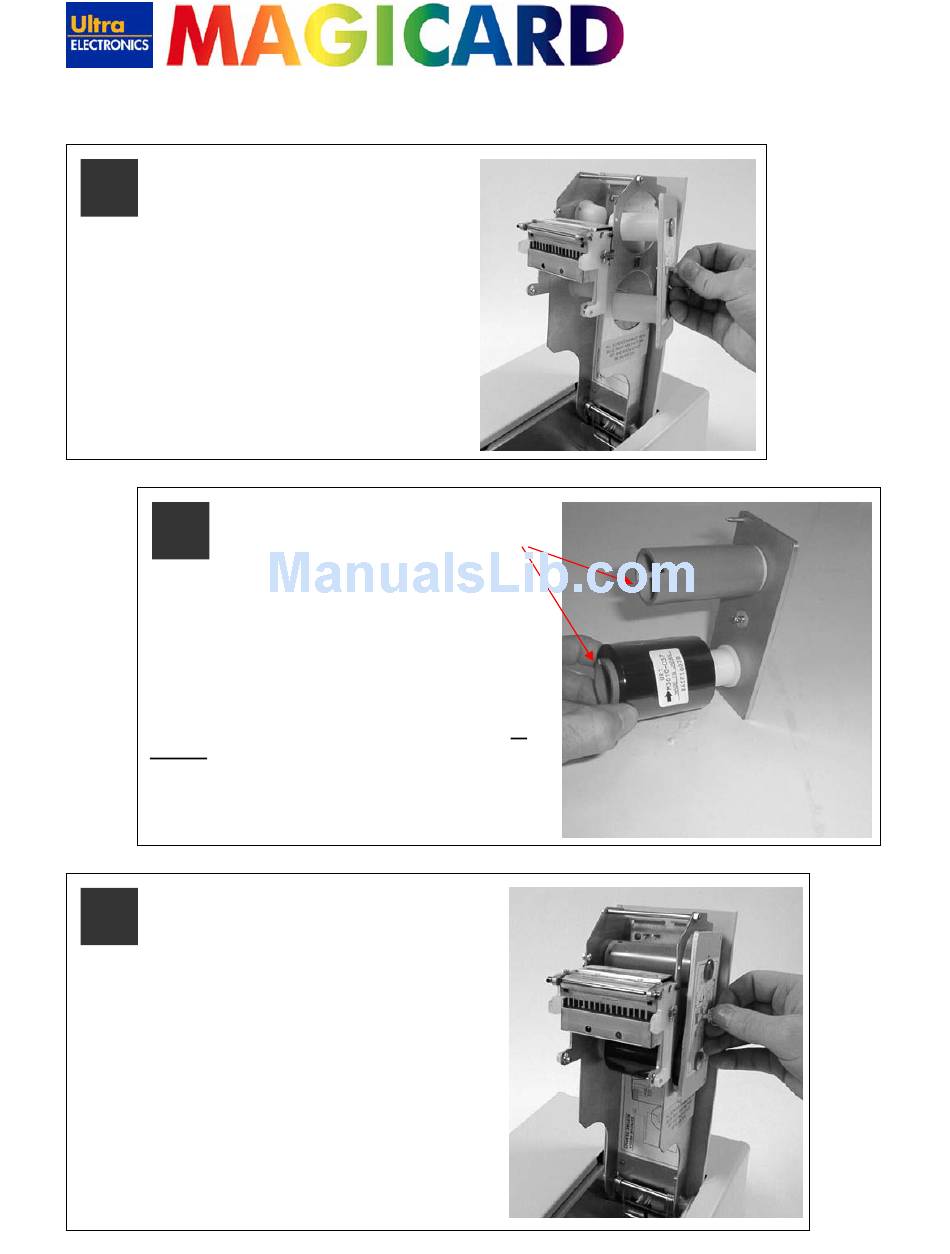

300 & Sprinter dye-film installation guide
1
To remove the dye-film carrier turn the "Dzus"
fastener ring a quarter turn counter-clockwise,
the dye film carrier can then be removed.
2
Remove the roll of dye film from its wrapper
and slide it over the bottom feed core.
Also fit an empty take up roll over the top core.
Important:-
Ensure the two locating notches are facing to
the left on both the top and bottom rolls, as
shown in diagram right>>>.
3
Replace the Film Carrier, with the empty take up
spool facing the top.
www.ultramagicard.com
Notches
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ultra electronics MAGICARD 300
Summary of Contents for Ultra electronics MAGICARD 300
- Page 1 300 & Sprinter dye-film installation guide To remove the dye-film carrier turn the “Dzus” fastener ring a quarter turn counter-clockwise, the dye film carrier can then be removed. Remove the roll of dye film from its wrapper and slide it over the bottom feed core. Also fit an empty take up roll over the top core.
- Page 2 300 & Sprinter dye-film installation guide It may be necessary to turn the take-up spool drive gear to ensure the two notches in the spool locate correctly with the locking pins. Manually turn the Spur Gear until the notches on the spool engage with the locking pins.
- Page 3 300 & Sprinter dye-film installation guide Avoid touching the tip of the thermal printhead with your hands. Feed the leading edge of the dye film over the top of the Thermal Printhead and beneath the guide bar, stick the leading edge on the dye film to the take up spool with the white label provided.
- Page 4 300 & Sprinter dye-film installation guide Special Note: How to fit UR3 Continuous Resin Dye Film and UR10 Single Colour Dye Film Before fitting the continuous resin black thermal transfer film dye film or the UR10 single colour dye film a small modification must be carried out on the take-up spool spigot before operating the printer.
