Page 1: Laminator Setup
Ultra Electronics Card Systems Quick Start Guide MAGICARD Sicura Laminator Quick Start Guide Laminator Setup Iss. 09 January 03 3504-22-01 Stock No. M9004-593 DCR 27634 refers MAGICARD Sicura Laminator Page 1... - Page 2 CAUTION - Caution messages indicate where damage to equipment could result from not following the correct procedures. NOTE - Notes convey important information that is identified within the text. Page 2 Sicura Laminator Conventions MAGICARD Sicura Laminator...
- Page 3 – opening the laminator cover – cable access at the rear and RH side – allowance for air circulation. • An adequately ventilated room. MAGICARD Sicura Laminator • An adequate power supply. • Ambient temperature +10 to +30 deg C.
- Page 4 Removing the Laminator from the Box Carefully open the box and remove any accessories. Page 4 Place on a smooth, level surface and remove the polyethylene container. MAGICARD Sicura Laminator...
-
Page 5: Package Contents

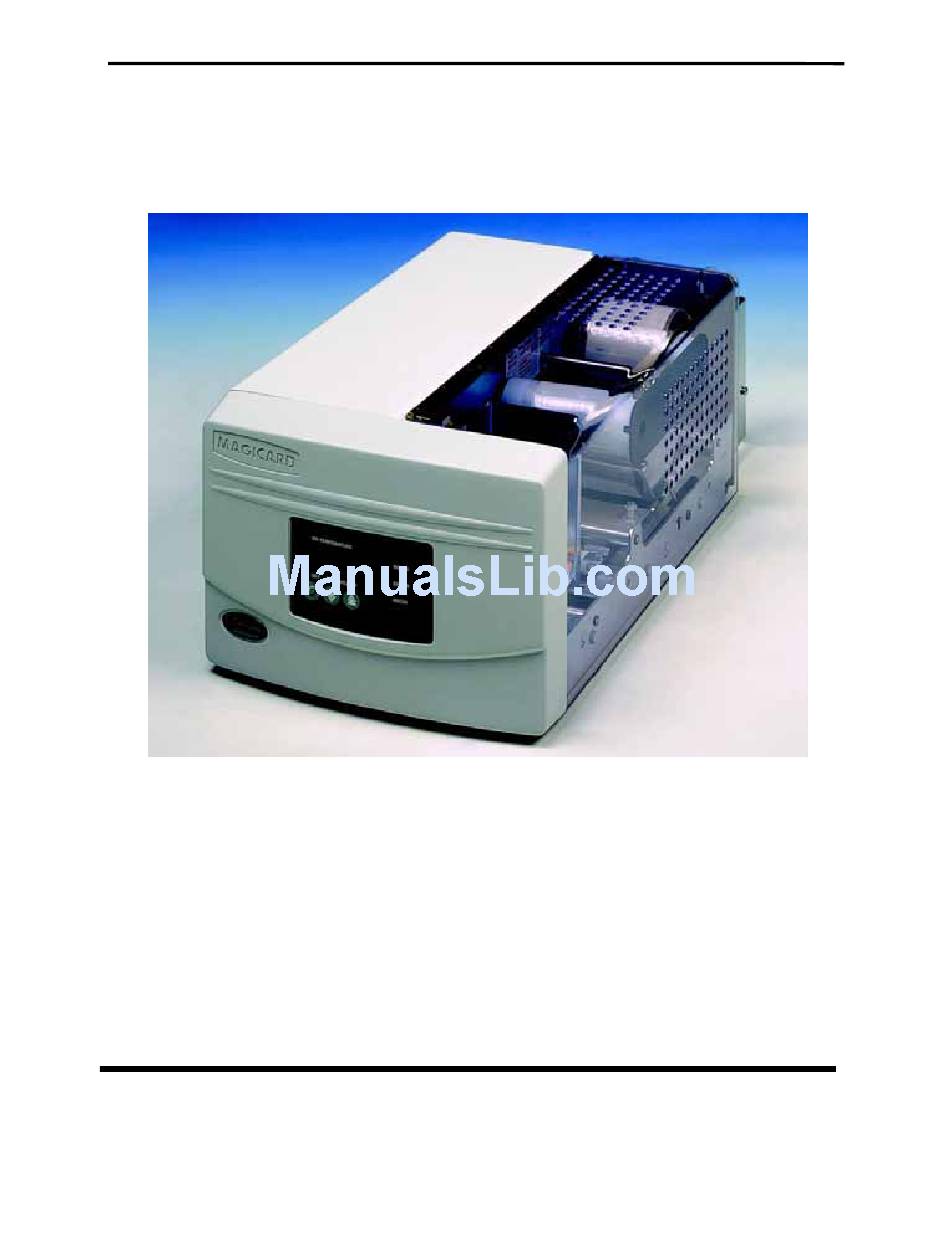

The MagiCard Sicura Card Laminator Envelope containing this Quick-Start guide MAGICARD Sicura Laminator Checking the Package Contents A Roll of Lamination Film and a Take-up Core (only supplied when ordered with the Laminator) A Power Cord with Molded Plug for your country’s voltage standard... - Page 6 Quick Start Guide Ultra Electronics Card Systems Check that the Mains Supply Voltage is correct for your country. (Different models are manufactured for each supply voltage.) Page 6 MAGICARD Sicura Laminator...
- Page 7 OPEN position. Gently install the roll of film between the rollers. The black alignment marks on the film should be innermost. MAGICARD Sicura Laminator Install the Lamination Film Turn the fastener ¼ turn counter- clockwise and remove the plate.
- Page 8 Replace and fasten the film retaining plate, and close the lever. Page 8 Gently turn both rolls, to ensure that there is no slack film. Close the transparent cover. MAGICARD Sicura Laminator...
- Page 9 (Units cannot be changed from one voltage to another.) Check that the temperature Controller’s LED’s flash. MAGICARD Sicura Laminator to a Power Supply Connect to the AC supply and switch After a few seconds, the display will indicate the temperature of the laminating roller in °C, which will begin...
- Page 10 4 minutes until the roller has heated up, cards cannot be fed in until then. 3. Opening the roller lever will stop all card/film movement. Closing the lever performs a Reset function but without the 4 minutes delay. Page 10 MAGICARD Sicura Laminator...
- Page 11 There will be slight variations from laminator to laminator, as well as between different card types. However, if film bonding is poor, increase the roller temperature. If the cards are too deformed, or the surface is marked, reduce the temperature. MAGICARD Sicura Laminator Page 11...
-
Page 12: Dip Switch Settings
The second rotary switch (Spare) is not used (future option). DIP SWITCH SETTINGS All switches are to be left in the UP position except when operating the Sicura in conjunction with a TURBO printer, in which case Switch 1 (brown) should be DOWN. MAGICARD Sicura Laminator... - Page 13 ↑ and ↓ keys as desired. Press the Scroll Key once to return to normal operation. The SP indicator will go out. MAGICARD Sicura Laminator Press the LH Scroll Key once to select display of setpoint value. The SP indicator will illuminate.
- Page 14 UltraSecure logo you can select the UltraShield box under the Security Options. This selection uses selective overcoat application to give a 3D security logo effect. If you are overlaminating with no additional security option, ensure the overcoat enabled box is not checked. Page 14 MAGICARD Sicura Laminator...
- Page 15 Quick-Start Guide). An interface cable ensures that the printer does not feed cards into the Sicura laminator until the laminator is ready. MAGICARD Sicura Laminator Connect the interface cable from the laminator. Check that the DIL Switch selections are ‘UP’ (see Section F4).
- Page 16 Position the laminator so that the location tab at the card entry slot is located in the card exit slot of the Magicard printer. Check that the DIP Switch Section 1 (brown) is in the DOWN position (see Section F4). MAGICARD Sicura Laminator...
- Page 17 Sicura card laminator and remove the Card Deflection Plate. Load the hopper with cards to be laminated (100 cards maximum). MAGICARD Sicura Laminator Stand Alone Mode Connect the interface cable from the lamintor. Check that the DIL Switch selections are UP (see Section F4).
-
Page 18: Adjusting The Hopper
1½ cards thicknesses are exposed. Page 18 Insert a stack of your normal cards to be laminated. Cards should be flat for correct feeding. Re-fit the Card Feed Hopper and the cable. Check for correction operation. MAGICARD Sicura Laminator... -
Page 19: Error Indicators
ERROR (Red) Checks the progress of a card through the laminator. Indicates that card transport has failed and requires investigation. Reset by opening and closing the roller lever. MAGICARD Sicura Laminator Error Indicators Page 19... -
Page 20: Clean The Rollers
Switch on and set the temperature controller to the desired laminating temperature. When warmed up, laminate two or three plain cards to get rid of any residual dust and to check the film alignment on the card. Page 20 MAGICARD Sicura Laminator... -
Page 21: In Case Of Difficulty
• Call the Ultra Magicard Customer Service Hotline number - +44(0)1305 762115 or +44(0)11305 762121. • Email us at: customer_service@ultramagicard.com. MAGICARD Sicura Laminator In Case of Difficulty Page 21... - Page 22 WINDOWS is a trademark of Microsoft Corporation. MAGICARD , Sicura and UltraSecure are trademarks of Ultra Electronics Limited. PrintMagic is a trademark of Software 2000 Limited. IBM, AT and PC are trademarks of International Business Machines Inc. Page 22 MAGICARD Sicura Laminator...
- Page 23 This Warranty gives you specific legal rights, and you may also have other legal rights which vary from country to country so the above limitations and exclusions may not apply to all customers. For Warranty enquiries please call or fax our Warranty Service Manager:- MAGICARD Sicura Laminator Ultra Electronics Limited MAGICARD Service Center...
- Page 24 BS7002 : 1992 EN 60950 : 1992 Safety of information technology equipment including business equipment. EN50-081-1 1992 Generic Emission Standard Part1: Domestic, Commercial and Light Industry. EN50-082-1 1992 Generic Immunity Standard Part 1: Domestic, Commercial and Light Industry. November 2002 MAGICARD Sicura Laminator...
