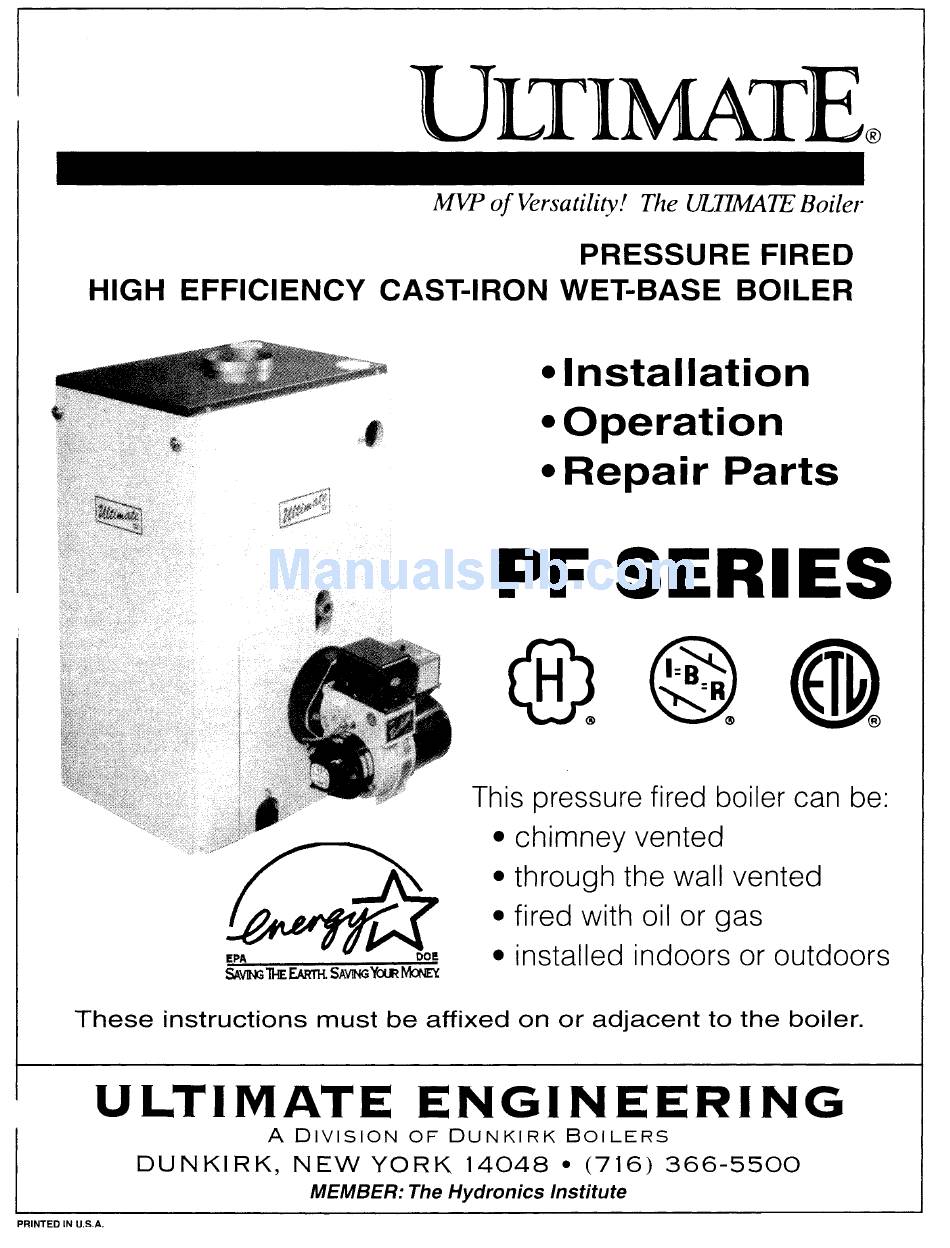

Summary of Contents for Ultimate Products PF Series
- Page 3 BURNER TYPE AFG - OIL 11½ 8½ INDOOR OIL-FIRED HOT WATER BOILERS RECOM M ENDED HEATING M ODEL FIRING RATES CAPACITY PFO-3 Minimum Maximum .90 PFO-4 Minimum Maximum 1.35 PFO-5 Minimum Maximum 1.70 PFO-7 Minimum 1.05 Maximum 2.35 PFO-9 Minimum 1.35 Maximum 3.00 RECOM M ENDED...
- Page 5 RECOMMENDED HEATING FIRING RATES MODEL CAPACITY PFO-3T2W Minimum Maximum 1.10 PFO-6T2W Minimum Maximum 2.10 † PFO-7TT2W Minimum 1.10 Maximum 2.50 † PFO-8T2W Minimum 1.25 Maximum 2.75 † RECOMMENDED HEATING FIRING RATES MODEL CAPACITY PFO-4W Minimum Maximum 1.35 PFO-7W Minimum 1.05 Maximum 2.35 PFO-9W...
- Page 10 Fresh Air ¼" Mesh Wood Duct Size Screen Btuh Louvers Btuh 3½" 12" 144,000 36,000 8" 8" 256,000 64,000 8" 12" 384,000 96,000 8" 16" 512,000 128,000 Metal Louvers Btuh 108,000 192,000 288,000 384,000...
- Page 17 HEAD FIRING RATE, GPH LOW FIRE BAFFLE 1.00 1.00 — — — —...
- Page 19 HEAD FIRING RATE, GPH LOW FIRE BAFFLE 1.00 1.00 — — — —...
- Page 28 Steel 1" Copper 1" Steel 1¼" Copper 1¼" Steel 1½" Copper 1½" Steel 2" Copper 2" Steel WATER VOLUMES OF PF SERIES BOILERS MODEL NO. DPF3 DPF4 DPF5 DPF7 DPF9 FACTOR 82.5 63.5 40.0 36.0 23.3 22.2 15.3 12.8 10.8...
- Page 40 BOILER CONTROLS AND PIPING KEY NO. PART NO. 146-19-201 Beckett AFG Standard Oil Burner (2.00 gph or less) BN08901 Beckett CF375 Standard Oil Burner (2.00 gph or more) 1050006 Riello 40 F5 Standard Oil Burner (0.90 to 1.50 gph) 146-19-011 Riello 40 F10 Standard Oil Burner (1.60 to 3.00 gph) 146-19-202 Beckett AFG Post Purge Oil Burner (2.00 gph or less)
- Page 42 MODEL RATE NOZZLE DPFO-3 .60-80°A .65-70°A .75-80°B DPFO-4 .60-80°A .75-80°A 1.35 1.20-80°B DPFO-5 .65-80°A 1.10 1.00-80°A 1.70 1.50-80°A DPFO-7 1.00 .90-80°B 1.60 1.35-80°B 2.35 2.00-60°B DPFO-9 1.35 1.20-70°A 2.00 1.65-40°B 3.00 2.50-60°B DPFO-3T .60-80°A .75-80°A 1.10 .90-80°B DPFO-4T .60-80°B 1.00 .85-80°B 1.45 1.25-80°B...
