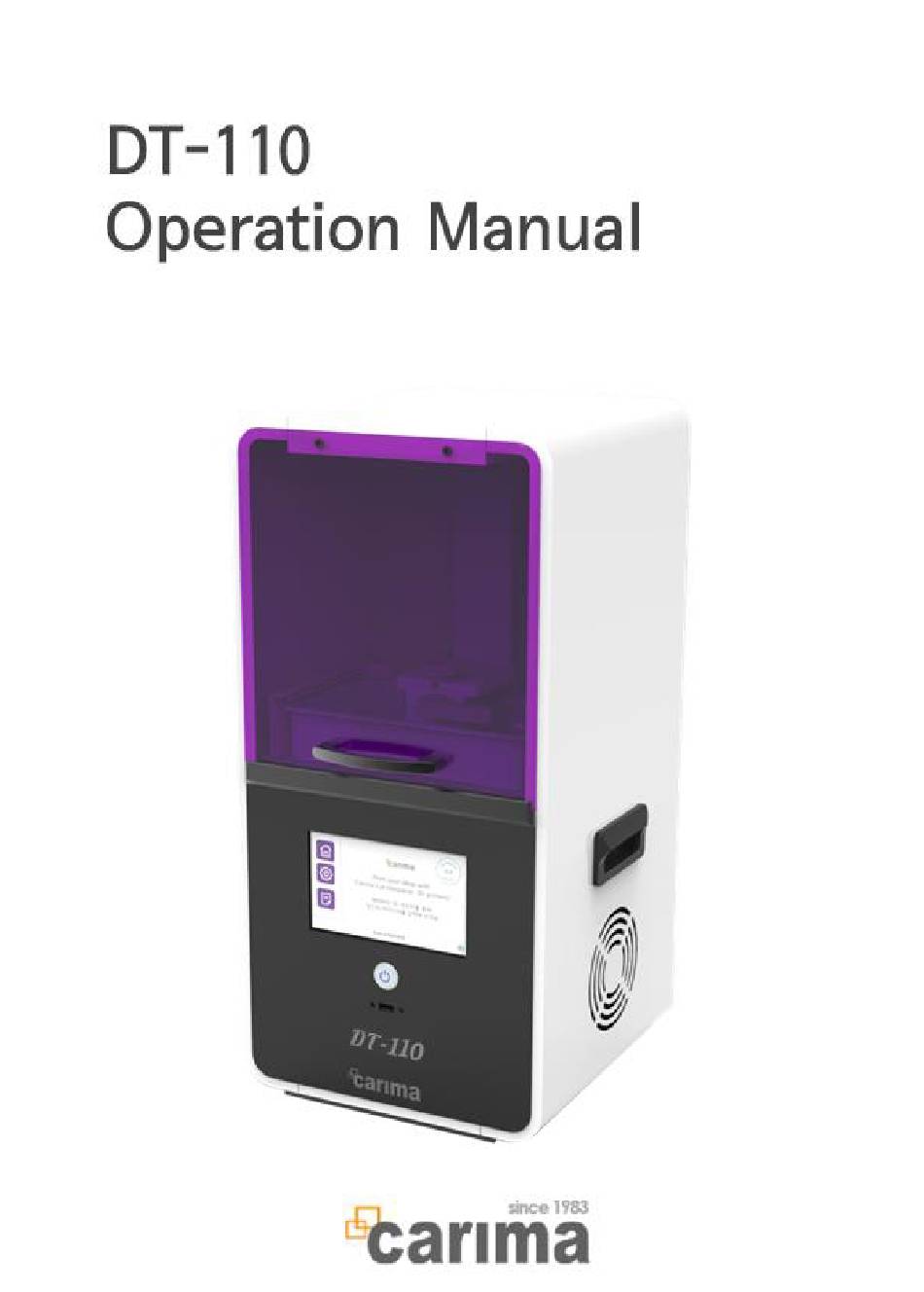

Carima DT-110 Operation Manual

Uvled 3d printer

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT-110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Carima DT-110

  • Page 2 Operation Manual UVLED 3D PRINTER DT-110...
  • Page 3: Table Of Contents

    Table of Contents 1. Product Warranty 2. Safety precautions 3. Product Information Specification, Consumables 4. Names of Parts 5. How to Attach & Detach Tray 6. How to Detach & Attach Build Plate 7. How to Refill Resin 8. Amount of Resin Refill 9.
  • Page 4: Product Warranty

    1. If a defect arises with regard to the product during the warranty period, CARIMA will repair or replace the defective parts of the product with new parts. 2. The warranty period applies for a period of 12 months from the date the Product was first installed by a consumer.
  • Page 5: Safety Precautions

    Safety precautions - Read this manual carefully for proper handling and operation, before installing, operating, maintaining and inspecting. - It is designed to help ensure your own personal safety and to help protect your equipment from potential damage. - Failure to observe the safety notes may lead to serious injuries and to significant damages to the system.
  • Page 6 Use of resin Be careful about resin from contacting skin or body part. If in contact, rinse in running water and make sure to wear gloves during work. Replacement of resin Remove alien substances and scraps at the bottom of tray. - Remaining scraps may have adverse effects on the output.
  • Page 7: Product Information

    Product Information 1. Product Spec Model Name DT-110 Resolution of UVLED engine 1024 x 760 Build size (mm) 110 x 62 x 150 Layer thickness (mm) 0.025 [0.025/0.05/0.075/0.1 (4 steps)] X,Y Resolution 50μm Product size (mm) 304 x 316 x 622...
  • Page 8: Names Of Parts

    Names of Parts Tray Power button Power Switch [Front] [Left side] UVLED engine [Back] [Right side]...
  • Page 9 Equipment Operation Manual UVLED 3D PRINTER DT-110...
  • Page 10: How To Attach & Detach Tray

    How to Attach & Detach Tray Tray Spring devices Spring devices Since the tray is pressed down by spring devices, pull the tray out. (Be careful when pulling out the tray as resin inside can overflow and stain the equipment.) 2.
  • Page 11: How To Detach & Attach Build Plate

    How to Detach & Attach Build Plate Loosen Build plate lock knob Build plate handle Build plate When printing is done, loosen the build plate to detach it by rotating build plate lock knob counterclockwise. Grab build plate handle and take out.
  • Page 12: How To Refill Resin

    How to Refill Resin Resin Refill resin as shown in the figure. Precaution If possible, refill resin before printing. If it is inevitable to refill resin while printing, press “pause” button and slowly add resin after the work comes to a complete stop. Refilling resin while printing can result in foams that have adverse effects on output.
  • Page 13: Amount Of Resin Refill

    Amount of Resin Refill Standard 10mm Shell Sheet surface In general, we recommend filling resin between shell line (250g) and standard line (500g). Do not exceed max line (800g) even when printing large output. When filling resin above the max line, resin can flow over the tray with up-down motion of motor depending on shape of output.
  • Page 14: Tray(Vat) Check

    Tray(VAT) Check Surface of VAT sheet shows holes, ripping and loosening. These are natural phenomena that appear when it is used for long time. When the sheet surface has hole or ripping, resin will enter into the hole or ripping and result in printing failure. Attach a new VAT in this case.
  • Page 15: Maintenance

    Maintenance Cleaning the dust and rubbish off the projector will help use the projector without any malfunctions. Warning: 1. Turn the projector off and unplug at least 30 minutes prior to cleaning the projector. It may cause a serious burn if not. 2.
  • Page 16 Control Screen Manual UVLED 3D PRINTER DT-110...
  • Page 17 Table of Contents LCD Screen Information 1) Composition of Loading Screen 2) Composition of Home Screen 2-1) Motor Control Screen 2-2) Engine Control Screen 2-3) Open Data Screen >> Printing Mode Screen 3) Composition of Environment Setup Screen 3-1) Printing Setup Screen >>...
  • Page 18: Lcd Screen Information

    LCD Screen Information 1) Composition of Loading Screen Function Description ① Loading Image Please wait a moment until home screen appears. ② Status Message This pops a message to display current status. ③ Exit Button This exits the system.
  • Page 19: Composition Of Home Screen

    LCD Screen Information 2) Composition of Home Screen Function Description ① Home, Setting, These tabs move to Home, Setting and Information menus. Information Tabs ② Motor Control This moves to Motor Control menu. ③ Engine Control This moves to Engine Control menu. ④...
  • Page 20: 2-1) Motor Control Screen

    LCD Screen Information 2-1) Motor Control Screen Function Description ① ↑↓ The build plate moves up and down. ② || The build plate stops. ③ Setting This sets movement distance of the build plate. ☞ Problem in the motor can be determined through motor control. Movement distance of the build plate is 20mm with initial setting.
  • Page 21: 2-2) Engine Control Screen

    LCD Screen Information 2-2) Engine Control Screen Function Description ① Engine ON This button can be used to turn the optical engine ON. ② Engine OFF This button can be used to turn the optical engine OFF. ③ View Default Image Optical engine projects default image.
  • Page 22: 2-3) Open Data Screen

    LCD Screen Information 2-3) Open Data Screen Function Description ① Storage device There are the data files of the list on the device. ② Print Press Print to move to printing mode screen(Refer to the p20). ③ Cancel Press Cancel to return to previous screen. ④...
  • Page 23: Printing Mode Screen

    Printing mode screen ☞ The result screen after clicking Print button in Open Data Screen Function Description ① File name This is name of the file being printed. ② Total time This is total time taken to print. ③ Remaining time This is remaining time until completion of printing.
  • Page 24: Composition Of Environment Setup Screen

    LCD Screen Information 3) Composition of Environment Setup Screen Function Description This sets setting values (exposure time and exposure layer) ① Printing setup necessary for printing. ② Zero Point setup This sets zero point on Z axis for stable printing. This checks and sets printer settings (system, optical, ③...
  • Page 25: 3-1) Printing Setup Screen

    LCD Screen Information 3-1) Printing Setup Screen Function Description This refers to default time for which output image is ① Basic exposure time exposed in the optical engine. This refers to exposure time to attach output to the ② Initial exposure Time build plate.
  • Page 26: Printing Setup Know-How

    Printing Setup Know-how 1. Exposure time refers to time during which output image is exposed in the optical engine when printing a layer. - Long exposure time causes over-hardening of output and short exposure time causes under-hardening. It is necessary to enter accurate time for resin being used.
  • Page 27: 3-2) Zero Point Setup Screen

    LCD Screen Information 3-2) Zero Point Setup Screen Function Description Moves to the lowest point of the build plate ① Home (starting point of zero setting) ② Stop Stops the build plate ③ +1, -1. +0.1, -0.1 Moves the build plate by the indicated value ④...
  • Page 28: How To Do Zero Point Setup

    How to do Zero Point Setup ※ Zero Point Setup means to find the accurate point at which the build plate contacts the tray surface at the beginning of printing. Our products are delivered to customers with Zero Point setting completed. Therefore, this setting is unnecessary unless there is a problem in the setting.
  • Page 29: Composition Of Information Screen

    LCD Screen Information 4) Composition of Information Screen Function Description ① S/W Version This shows software version. ② F/W Version This shows firmware version. ③ OS Version This shows OS version. ④ IP Address This displays internal IP address. ⑤ Resolution This shows engine resolution (actual resolution).
  • Page 30: Printing Process

    Printing Process 1. Preparation for Printing 1. Press the power button on the front after turning on the power switch on the left side of 3D printer. 2. Wait for a moment until Home screen appears on the LCD screen. 3.
  • Page 31 5. Printing Option 1) interim check of output - While printing, check ‘interim check of output’ on the printing mode screen and press Pause to check the output. Then the printing will be paused. - The output will be checked after Motor automatically goes up and stops. - Press Pause again to return to previous printing position and restart printing.
  • Page 32: Precautions For Post Work

    Precautions for Post Work ※ Materials : cutter blade, spatula, cleaning alcohol, pincers, toothbrush <Precautions> - Use of cutter blade: The mold can be damaged if taken off by hand or ordinary knife. The build plate can be damaged if it adsorbs strongly to the build plate.
  • Page 33 Take the mold out and place it on the work table. Use the cutter blade to remove the mold from the build plate. Remove remaining resin cleanly using alcohol. Use a toothbrush with thin hairs to clean gaps between. Since the mold can be deformed by alcohol, use the air compressor to clean Dry the cleaned mold using the UV hardener.
  • Page 34: Handling Resin Waste

    Handling Resin Waste Overview Method of safely managing and lawfully handling chemical substances and general wastes generated while using the device according to environmental safety regulations 2. Type and Definition of Waste 1) Wastewater from cleaning of output Wastewater generated when cleaning liquid resin on output 2) Output waste Solid waste generated from printing of output 3) Hazardous waste (liquid)
