Tyco TERRAINIAC L5465 Instructions

DRIVING TERRAINIAC ™
CONTROLS
REVERSE FORWARD
Push the control
Push the control
paddle down to paddle down to
move backwards. move forwards.
There are three
forward speeds.
LED
Power indicator.
HANDLE
STEERING
Hold the
Push to turn RIGHT.

transmitter

Pull to turn LEFT.
by the right
handle.
TURN RIGHT
FORWARD
NOTE:
There are three
forward speeds.
TURN LEFT
REVERSE
6
LET'S GET STARTED!
TO CHARGE THE 9.6V TYCO BATTERY PACK, PLEASE FOLLOW THESE INSTRUCTIONS:
®
1. Plug wall pack charger into standard wall outlet.
2. Connect the wires leading from the battery pack to the wall pack charger
connector. Make certain the two connectors are tightly snapped together.
3. To disconnect wires, push down on the connector clip and pull apart. 9.6V d.c. NiCd,
1 x 8 AA 800mAh.
4. Your battery pack consists of new parts and materials; therefore, you
should charge the battery pack for 5-1/2 hours the first two times you charge
the battery. Subsequent charges will require only 4 hours.
5. After charging for 4 hours, the battery will feel warm.
This condition is normal for fully charged batteries.
6. Charging the battery pack for more than 4 hours will not give you a longer
running time. 4 hours is all that is required for a fully charged battery pack.
7. Unlike alkaline batteries, where the power loss is gradual, a NiCd (Nickel-Cadmium)
battery will run for its normal running time, depending on your particular vehicle,
and then lose most of its power at once. It is time to recharge the battery pack.
8. After use, the battery pack will be hot! Wait at least 20 minutes until the battery
pack cools before recharging. Recharging a warm or hot battery pack will greatly
reduce the number of times your battery pack can be recharged.
CAUTION: Use only the charger supplied with this toy.
9.
Do not use any other charging source.
HOW TO BRING TERRAINIAC ™ "TO LIFE"!

VEHICLE

®
Requires a 9.6V Tyco (NiCd) battery pack for
vehicle and a 9V battery for transmitter.
1. First turn the Terrainiac™ vehicle upside
down as shown at right [ 1 ].
2. Loosen the two screws on the battery
compartment cover with a Phillips head
screwdriver (not included) . Remove
battery compartment cover [ 2 ].
3. Hold the Tyco ® 9.6V battery pack
(included) facing up as shown.
Insert the battery connector
into the vehicle battery
connector as shown [ 3 ].
3 3
4. Replace the battery
compartment cover
and tighten screws.
Vehicle Battery
Connector
2 2
1 1 1
Battery
9.6V Battery Pack
Compartment Cover
BOTTOM VIEW
2

QUICK TIPS

◆
When the Terrainiac™ vehicle starts to lose power you'll start to lose performance. It's time
for a recharge. As a rule, you should always start with a fully charged battery.
◆
The vehicle's running time may change depending on your driving style.
◆
Radio interference can mess up the signals you're sending, causing the vehicle to perform
erratically. Things to look for that may be causing the interference: other R/C vehicles running
on the same frequency, electrical wires, large buildings, CB radios, or other wireless gear that
can cause interference.
◆
Point your transmitter antenna up - not down toward vehicle. If the vehicle escapes your
transmitter's range, you can kiss proper functioning goodbye.
◆
The Terrainiac™ is waterproof, so it's okay to go through puddles. NOTE: The transmitter is
NOT waterproof. Keep it dry at all times or you might ruin it.
◆
Don't store your vehicle near heat or in direct sunlight. Always turn the switches OFF.
and, if you're not planning on using the vehicle for a while, remove all the batteries... really.
It's amazing how one leaky battery can ruin a really fun toy.

BATTERY SAFETY INFORMATION

In exceptional circumstances batteries may leak The supply terminals are not to be short-circuited.
fluids that can cause a chemical burn injury or
Dispose of battery(ies) safely.
ruin your product. To avoid battery leakage:
Do not dispose of this product in a fire. The
Non-rechargeable batteries are not to be
batteries inside may explode or leak.
recharged.
Battery Performance Note:
Rechargeable batteries are to be removed from
For best performance use regular or high-
the product before being charged (if designed to
performance alkaline batteries (where disposable
be removable).
batteries are called for).
Rechargeable batteries are only to be charged
under adult supervision (if designed to be
1) Use only Tyco® R/C 9.6V NiCd battery packs.
removable).
Other batteries may leak or rupture, causing
Do not mix alkaline, standard (carbon-zinc),
personal injury and damage.
or rechargeable (NiCd) batteries.
2) Remove rechargeable batteries before
Do not mix old and new batteries. recharging.
3) The battery charger is for adult use only.
Only batteries of the same or equivalent type as
4) The charger is not a toy.
recommended are to be used.
5) Regularly examine for damage to the plug,
Batteries are to be inserted with the correct
enclosure and other parts. In the event of any
polarity.
damage, the toy must not be used with the
Exhausted batteries are to be removed from the
charger until the damage has been repaired.
product.
Protect the environment by not disposing of this product
with household waste (2002/96/EC). Check your local
authority for recycling advice and facilities.
7
HOW TO BRING TERRAINIAC ™ "TO LIFE"! (Continued)
TRANSMITTER
1. Remove the battery cover
as shown [ 1 ].
2. Install one 9V battery
(included) with polarity (+/-)
as shown inside the battery
compartment [ 2 ].
3. Replace the battery cover.
2 2
1 1
BOTTOM VIEW
9V Battery Pack
Battery
Compartment Cover

ASSEMBLY

1. Snap the rear fender into
the vehicle as shown [ 1 ].
2. Uncoil the antenna [ 2 ].
1 1
2 2
3
HANDLING THE TERRAINIAC ™ WITH CARE!
Note to Adults: To ensure that the child's play is both safe and fun,
please review all the operating instructions and safety tips with your child.
SAFETY TIPS
• You should NEVER, EVER drive your vehicle on the street!
• DO NOT pick up vehcile while in motion. Take your fingers off the Transmitter buttons and then
pick it up.
CAUTION: Keep fingers, hair and loose clothing away from vehicle while it's on.
Adult supervision is recommended when vehicle is being used.
To avoid accidental or unwanted operation, remove all the batteries when not in use.
Always turn the Terrainaic™ vehicle OFF before removing the batteries.
90 DAY LIMITED WARRANTY– TYCO® R/C PRODUCTS
Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days
(unless specified in alternate warranties) from the date of purchase. Mattel will replace the product in the event of such a defect within the warranty
period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner.
If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales
receipt, and a brief explanation of the defect. Replacement and return shipment will be free of charge. This warranty does not cover damage
resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales receipt the product may be
excluded from coverage under this warranty. Mattel's liability for defects in material and workmanship under this warranty shall be limited to repair
or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those
states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty.
Valid only in U.S.A. This warranty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do not
allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER:
1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 5:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following
the holiday season. Please be patient and keep trying the toll-free number. ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD
AVENUE, EAST AURORA, NY 14052
For product sold in USA
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation of the device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Mattel, Inc., Consumer Relations, 636 Girard Ave., East Aurora, NY
(800) 524-8697
NOTE: Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the
user's authority to operate the equipment.
• Mattel Canada Inc.,Mississauga, Ontario L5R 3W2. You may call us free at 1-800-524-8697.
• Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628500303
• Mattel Australia Pty., Ltd., Richmond, Victoria. 3121.Consumer Advisory Service - 1300 135 312 (valid only in Australia).
• Mattel East Asia Ltd., Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China.
• Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.(993532-P) Lot 13.5, Menara Lien Hoe, Persiaran Tropicana Golf Country Resort, 47410.
8
TERRAINIAC ™ FEATURES
Turn "ON" the Power
Switch on the bottom
of the transmitter and
vehicle.
ON/OFF SWITCH
TRANSMITTER, TOP VIEW
LED will light up,
indicating the
transmitter is ON.
TRANSMITTER, BOTTOM VIEW
ON/OFF SWITCH
REMINDER:
When not in use,
turn off both the
transmitter and the
vehicle to conserve
batteries.
VEHICLE, BOTTOM VIEW
4
ASST. L5465
L5475/L5476
8+
TM
I N S T R U C T I O N S
CONTENTS
Please remove everything from the
package and compare to the contents
shown here.
Keep these instructions for future reference as
they contain important information.
TYCO ® R/C SUPPORT
IMPORTANT: Please read all "Consumer
Questions or problems with your product? Information" before operating your vehicle.
DON'T RETURN IT TO THE STORE!
Just call us for help. CAUTION: Surfaces may become hot and cause
U.S. consumers may also register their products at this number.
1 888 557-TYCO (8926)
burns if electronics get wet. Do not operate
tycorc.com vehicle through water or snow.
© 2007 Mattel, Inc. All Rights Reserved.
1

STEERING ALIGNMENT

Over a period of time your vehicle's steering
may get out of alignment, causing the
vehicle to be always turning in one direction
or the other. To correct this problem turn the
vehicle over and rotate the adjustment
control (see inset diagram) until the front
wheels are lined up perpendicular to the
vehicle's body.
Example of
Improperly Aligned
Steering
TOP VIEW
Rotate the Steering
Adjustment Control
toward the back of the
vehicle to move the
steering mechanism to
the left. Rotating the
Steering Adjustment
Control to the front to
move the steering
mechanism to the right.
Steering
BOTTOM VIEW Adjustment
Control
Example of
Properly Aligned
Steering
TOP VIEW
5

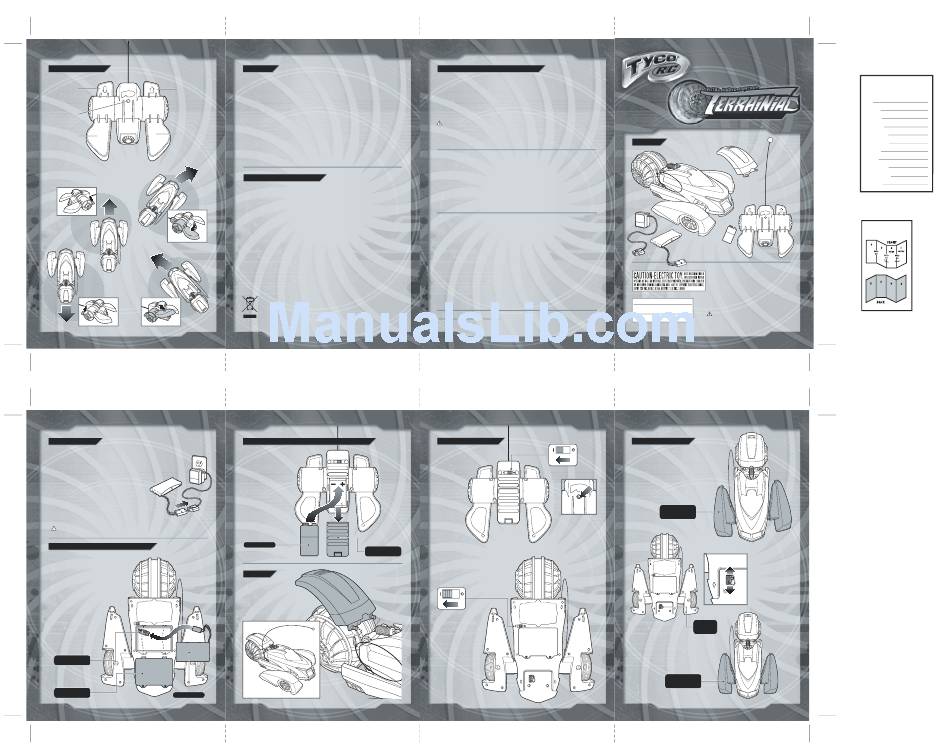

INSTRUCTION SHEET

SPECIFICATIONS

TYCO R/C Terrainiac
Toy:
L5465
Toy No.:
0920
Part No.:
22 " W x 8.5 " H
Trim Size:
5.5 " W x 8.5 " H
Folded Size:
4 panel
Type of Fold:
One
# colors:
Black
Colors:
White Offset
Paper Stock:
70 lb.
Paper Weight:
EDM No.:
4 PANEL
Folding Dummy
• Twisting drive train
• Rear steer turning
• Multi-tread traction
