Summary of Contents for KinAn KLS-1801
- Page 1 Rack Mount 18.5 Console User Manual Print date: 2020 / 04 Version: V1.0...

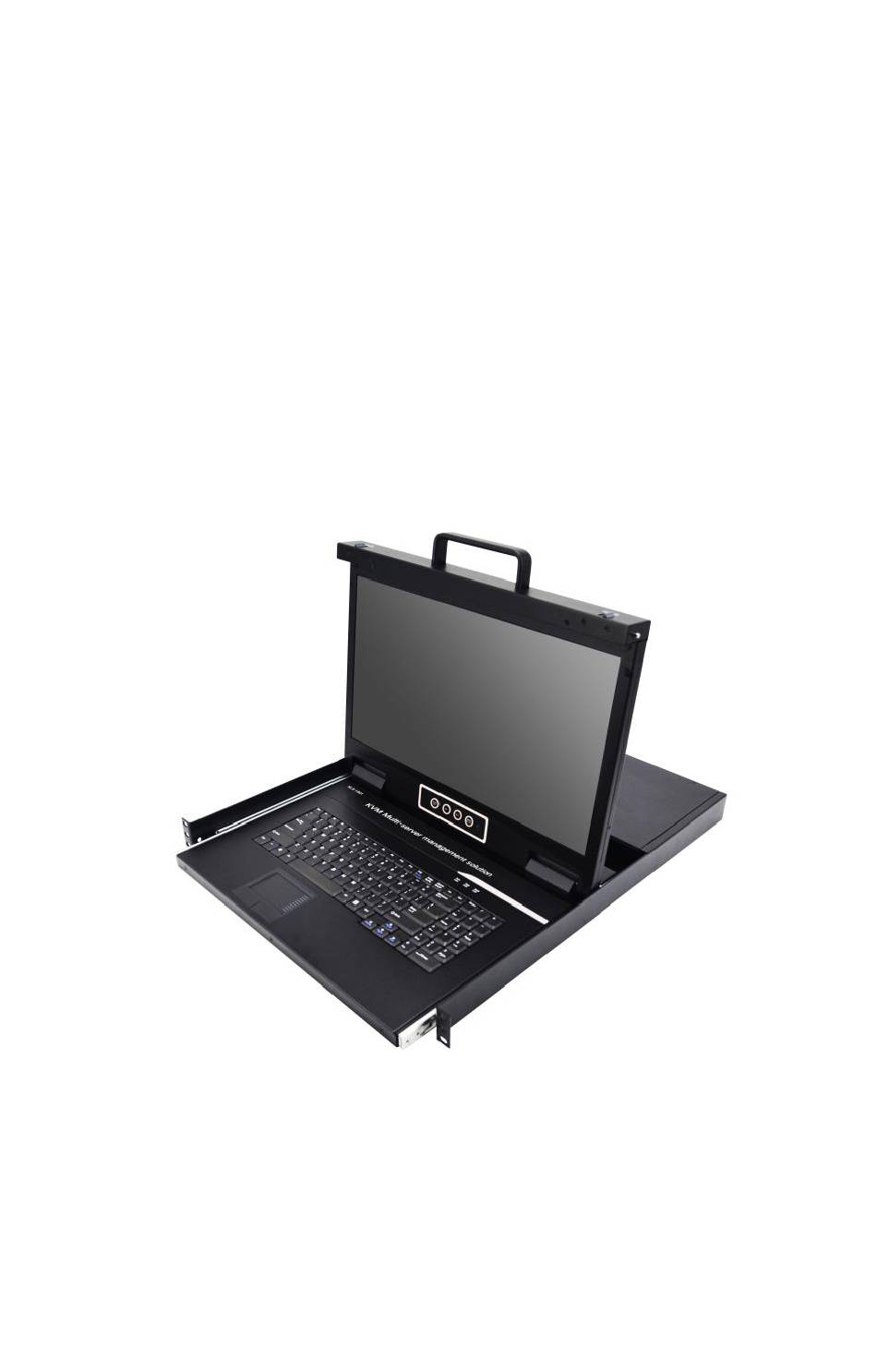

- Page 2 KLS-1801 / KLS-2801 User Manual Description Single port console integrate the monitor, keyboard and mouse in a 1U height device, it can be installed in a standard 19” rack. It can connect one computer to control the monitor, keyboard and mouse.
- Page 3 KLS-1801 / KLS-2801 User Manual Front View 1-2 front view 1 LCD Monitor 2 Rear Bracket Slot 3 Display Menu Buttons 4 Mounting Bracket 5 Keyboard 6 Touchpad 7 Handle 8 Release Switch 9 Display Panel - 2 -...
-
Page 4: Cable Connection
KLS-1801 / KLS-2801 User Manual Back View -48V -36V~-72V DC IN 100V-240Vac/50~60Hz 1-3 back view Power input(AC or DC) Power Switch Ground connecting screw PC connection port: integrating VGA, keyboard and mouse signal Cable Connection 1-4 cable connection To ensure signal integrity and simplify cable layout, we strongly recommend you use high quality cables with different length as shown in above table. -
Page 5: Rack Mounting
KLS-1801 / KLS-2801 User Manual Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of in a standard 19” rack. For other mounting distance, the rear brackets need to be customized accordingly 18.5〞: 620-720mm With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, then screws the brackets to... - Page 6 KLS-1801 / KLS-2801 User Manual 2.2 rack mounting Opening the Console Power on the KVM after connecting cables. Power on the server or PC after power on the KVM. Release the release catch. UNLOCK UNLOCK UNLOCK UNLOCK 2.3 unlocking...
- Page 7 KLS-1801 / KLS-2801 User Manual 2.4 open angel of the console Closing the Console Close the console and the power automatically shut down. Push the release catch in the direction of the arrow, push the LED panel all the way in until it automatically lock up.
-
Page 8: Menu Select
VESA mode. If so, return back to OSD menu to RESET, then it will revert back to normal. KLS-1801 It is recommended to set up the display mode at 1366×768, refresh rate at 60Hz. KLS-2801 It is recommended to set up the display mode at 1920×1080, refresh rate at 60Hz. - Page 9 KLS-1801 / KLS-2801 User Manual Specifications-18.5″ Model KLS-1801 KLS-2801 Direct Computer Connections Keyboard, Port emulation PS/2, USB mouse LCD model WXGA TFT FHD TFT View area 18.5” 18.5” Optimum 1366×768@60Hz 1920×1080@60Hz resolution LCD monitor Display color 16.7 M Brightness 250cd/m² (T y p ) 500cd/m²...
