12070
YEARS: 2010-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
INSTALLATION TIME:
THE
INSTALL TIME LISTED IS FOR PROFESSIONAL
INSTALLERS. IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
TORQUE
RATCHET
WRENCH
WIRE PIPE
SCREW
BRUSH
DRIVER
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing Inc. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing Inc. may repair or replace
the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement
of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

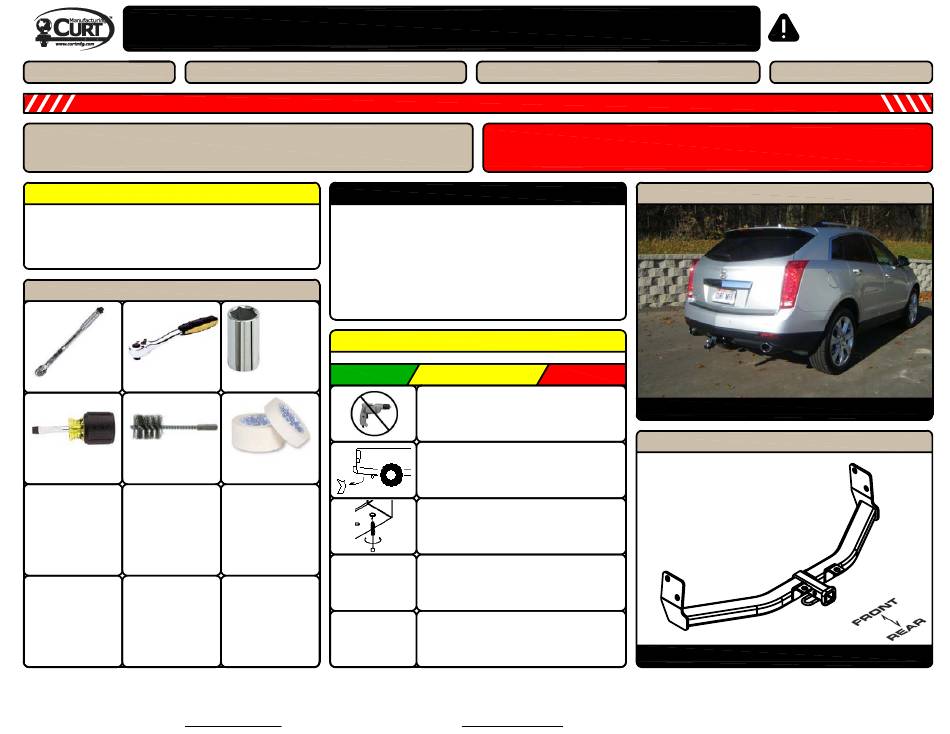

INSTALLATION INSTRUCTIONS
CADILLAC
TRAILER WEIGHT:
3,500
LBS.
TONGUE WEIGHT:
350
LBS.
30
MIN.
INSTALLATION TIPS:
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
10mm
19mm
LEVEL OF DIFFICULTY:
EASY
SOCKET
MASKING
TAPE
PART REMOVAL
MODEL: SRX
WARNING:
WE STRONGLY RECOMMEND THE USE OF AUXILIARY STABILIZING STRAPS FOR ALL
NON-TRAILER (WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US
ONLINE AT WWW.CURTMFG.COM FOR FURTHER INFORMATION.
MODERATE
MODERATE
HARD
NO DRILLING REQUIRED
REMOVE CENTER FASCIA PANEL
AND RETURN TO OWNER
MAY REQUIRE WELDNUT
CLEANING
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO
HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
CROSSOVER
12/01/2009
