Kathrein HDS 166 Manual

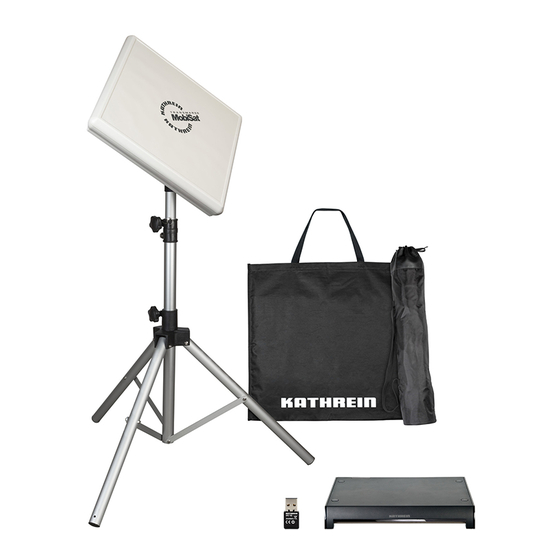

Antenna sets for satellite reception
Hide thumbs Also See for HDS 166:
Table of Contents

Advertisement

Quick Links

Download this manual
HDS 166
20310052
HDS 166 plus
2030000002
Antenna Sets for Satellite Reception
About This Guide
This document is part of the product.
► Read these instructions for use before the initial use of the antenna set.
► Perform all operating steps described in the manuals in the specifi ed sequence.
Keep these instructions for future reference. Pass them on to any new owners when selling or transferring
the unit.
For the most up-to-date version of this document, go to www.kathrein-ds.com.
Intended Use
The antenna sets HDS 166 and HDS 166 plus are suited for manually adjustable satellite reception.
If they are used in any other way or if the provisions of this document are disregarded, the guarantee and warranty will
become void.
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDS 166 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kathrein HDS 166

Summary of Contents for Kathrein HDS 166

  • Page 1 Intended Use The antenna sets HDS 166 and HDS 166 plus are suited for manually adjustable satellite reception. If they are used in any other way or if the provisions of this document are disregarded, the guarantee and warranty will become void.

  • Page 2: Scope Of Delivery

    ► Transport and store the device only in the permitted temperature range between -25 and +55 °C. For HDS 166 plus, the permitted temperature range of the CAP converter and UFZ 131 is between +5 and +40 °C. ► After the original packaging has been opened, it is possible to use the enclosed carry bags for storage and transpor- tation.
  • Page 3 1. If you want to use the HDZ 66 inclinometer, it has to be installed now as described in the enclosed instructions. Alignment of the BAS 66 Skew antenna using the HDZ 66 inclinometer is only possible in connection with the CAP converter included with the HDS 166 plus or an alphatronics SL line TV with a Kathrein control.

  • Page 4: Skew Adjustment

    Skew Adjustment Explanation The BAS 66 Skew planar antenna is mounted centrally on the skew adapter plate when delivered. This setting does not necessarily have to be changed in Central Europe to receive satellites with orbital positions in Central Europe. In the peripheral regions of the southwestern and southeastern regions, the reception can be improved by adjusting the skew.
  • Page 5 With attached smartphone and bubble scales app Adjust azimuth With the compass app on your smartphone Fig. 7: Aligning the HDS 166 antenna It is also possible to align the BAS 66 Skew antenna using the HDS 66 display unit (separately available, order no. 20410060)
  • Page 6 230 V supply. Semi-automatic Antenna Alignment (HDS 166 plus) The HDS 166 plus antenna set enables the alignment of the BAS 66 Skew planar antenna in combination with the free CAPcontrol app for Android and iOS. ✔ The CAPcontrol app is installed on your smartphone.
  • Page 7 Live TV with the HDS 166 plus The BAS 66 Skew is a TWIN antenna. This means that two devices can be operated at the same time. Live TV can be watched on two TV sets or on a TV set and a mobile device (mobile phone, tablet, notebook) simultaneously (see Fig.

  • Page 8: Twin Operation

    More Information About the CAP Converter DE - 83004 Rosenheim Fig. 8: Connections on the CAP converter LED status indicator on the CAP converter/external push-button LED permanently red CAP converter in standby LED permanently green Satellite has been found LED fl ashes green Connection to antenna is OK, no satellite has been found LED fl...
  • Page 9 Streaming on laptop, tablet oder smartphone Fig. 10: Live TV on mobile devices with the HDS 166 plus Adjust elevation ... Jetzt die Antenne Richtung Süden drehen Steiler Flacher Stopp Fig. 11: Setting the elevation 9 / 12...
  • Page 10 Adjust azimuth Drehen...Drehen... Antenne empfangsbereit Fig. 12: Setting the azimuth Disassembling the Antenna Set Risk of injury due to the sat tripod mast with the antenna fi tted tipping over! ► If necessary, request a second person to assist you if, contrary to these instructions, you fold up the sat tripod mast with the antenna still attached.

  • Page 11: Technical Data

    Technical Data Type Unit HDS 166 HDS 166 plus Order number 20310052 2030000002 Dimensions, sat tripod mast 1500 max. 1500 max. Height 1200 max. 1200 max. Stand diameter Tube diameter Dimensions, antenna BAS 66 Skew (H x W x D)
  • Page 12 | support@kathrein-ds.com 9360000136/e/STM/0520/GB | Subject to change. KATHREIN Digital Systems GmbH Anton-Kathrein-Str. 1–3 83022 Rosenheim Germany Phone +49 731 270 909 70...

This manual is also suitable for:

Hds 166 plus
