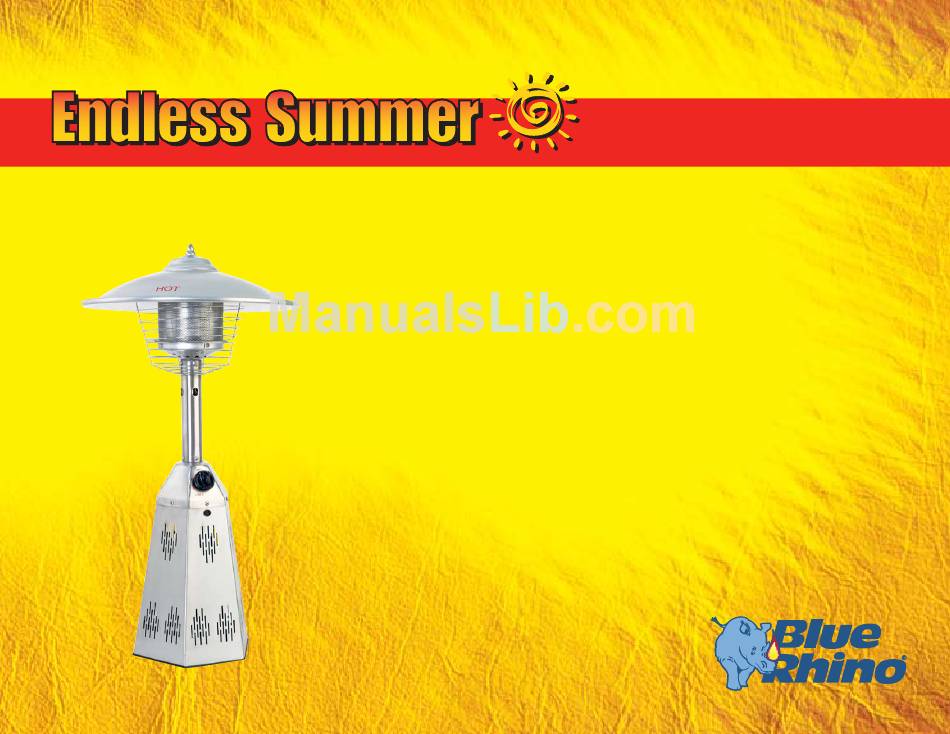

- Page 1 ® Cleaning emitter and burner Series: 60000-66000 70000-91000 LP Gas...
-
Page 2: Tools Needed
1. Installation and repair should be done by a qualified service person. 2. Use only Blue Rhino Global Sourcing, LLC. factory authorized parts. The use of any part that is not factory authorized can be dangerous. This will also void your warranty. - Page 3 ® For assistance call 1.800.762.1142. Steps 1-3 1. Remove propane cylinder. 2. Remove dome. 3. Remove wire guard. Cleaning emitter and burner. Series 6000-93000 LP Gas 405121...
- Page 4 ® For assistance call 1.800.762.1142. Step 4 Using a #2 Phillips screwdriver, remove the 4 screws that secures the emitter to the emitter bottom. Cleaning emitter and burner. Series 6000-93000 LP Gas 405121...
- Page 5 ® For assistance call 1.800.762.1142. Step 5 1. Using a non-abrasive scouring pad, clean the outside and inside of the emitter. 2. Finish up by blowing any loose soot off the emitter with air or a can of compressed air. Cleaning emitter and burner.
- Page 6 ® For assistance call 1.800.762.1142. Step 6 To remove the burner from the emitter bottom unscrew the 2 screws. Cleaning emitter and burner. Series 6000-93000 LP Gas 405121...
- Page 7 ® For assistance call 1.800.762.1142. Step 7 1. In the post, locate the 4 oblong holes. In two of the holes there are 2 small screws. Note: The 2 screws are opposite of each other. 2. Remove both of these screws. Use care not to lose them. Once the screws have been removed, carefully remove burner.
- Page 8 ® For assistance call 1.800.762.1142. Step 8 With the burner removed, clean the inside of the venturi tube. Insert a bottle brush completely into the venturi tube and twist a couple of times to loosen any debris. Cleaning emitter and burner. Series 6000-93000 LP Gas 405121...
- Page 9 ® For assistance call 1.800.762.1142. Step 9 Use a pipe cleaner to clean all burner ports. Clean the top of the heat shield on the burner with a non-abrasive scouring pad to remove any soot or carbon build-up. Cleaning emitter and burner. Series 6000-93000 LP Gas 405121...
- Page 10 ® For assistance call 1.800.762.1142. Step 10 With the venturi tube, burner ports and the heat shield cleaned, use the air or a can of compressed air to blow out any soot or carbon build-up. Cleaning emitter and burner. Series 6000-93000 LP Gas 405121...
- Page 11 ® For assistance call 1.800.762.1142. Step 11 After the burner and the emitter are clean, reassemble the burner to the main supply tube. Be careful to insert the thermal-couple and igniter into the hole in the heat shield. Before reattaching the emitter to the emitter bottom, insert a propane tank into the valve housing and check to ensure that the heater lights.
- Page 12 Step 12- IMPORTANT Perform leak check. If you smell gas - 1. Shut off gas to appliance. 2. Extinguish any open flame. 3. If odor continues, immediately call your gas supplier or your fire department. 1. Do not operate if gas leak is present. Gas leaks may cause a fire or explosion. 2.
- Page 13 Burner Connections 1. Make sure the regulator valve and hose connections are securely fastened to the burner and the tank. 2. If your unit was assembled for you, visually check the connection between the burner pipe and orifice. Make sure the burner pipe fits over the orifice. WARNING: Failure to inspect this connection or follow these instructions could cause a fire or an explosion which can cause death, serious bodily injury, or damage to property.
- Page 14 1.800.762.1142, www.bluerhino.com © 2004 Blue Rhino Global Sourcing, LLC All Rights Reserved. ® Endless Summer is a registered trademark of Blue Rhino Global Sourcing, LLC All Rights Reserved. ® Blue Rhino is a registered trademark of Ferrellgas, L.P. All Rights Reserved.
