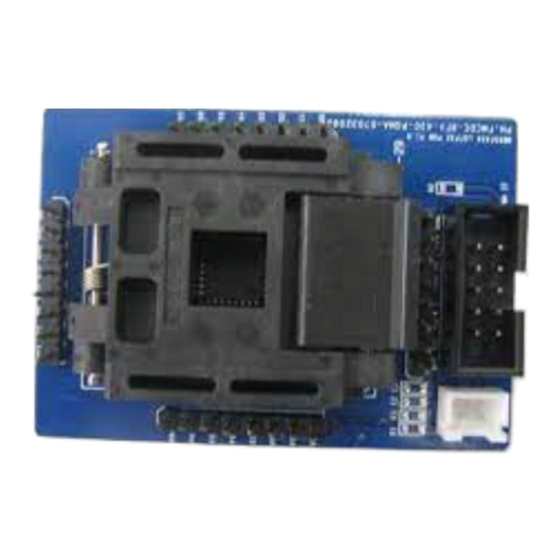

Cypress F2MC-8FX Series Setup Manual

Starter kit (ver. 3v)
Hide thumbs Also See for F2MC-8FX Series:
Table of Contents

Advertisement

Quick Links

Download this manual
2
F
MC-8FX Family
Starter Kit (ver. 3V) MB2146-401-01A
Setup Guide
Doc. # 002-07547 Rev. *A
Cypress Semiconductor
198 Champion Court
San Jose, CA 95134-1709
Phone (USA): 800.858.1810
Phone (Intnl): +1.408.943.2600
www.cypress.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F2MC-8FX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cypress F2MC-8FX Series

Summary of Contents for Cypress F2MC-8FX Series

  • Page 1 MC-8FX Family Starter Kit (ver. 3V) MB2146-401-01A Setup Guide Doc. # 002-07547 Rev. *A Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 Phone (USA): 800.858.1810 Phone (Intnl): +1.408.943.2600 www.cypress.com...
  • Page 2 Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products.

  • Page 3: Table Of Contents

    Contents 1. Preface 1. Checking the Delivered Product 2. Handling Precautions 3. Feature 4. Software Setup Installation of Software ....................9 Operation of SOFTUNE.....................15 5. Hardware Setup Configuration of Each Product...................30 Connection of Each Product ..................32 6. Additional Informations Revision History Starter Kit (ver.

  • Page 4: Preface

    Preface Thank you for purchasing the F MC-8FX Family Starter Kit (ver. 3V) (Model: MB2146-401-01A)* This product is a starter kit for F MC-8FX MB95FV100D-101 (ver. 3V), which comes with MB2146- 09A-E (F MC Family BGM Adapter)* , MB2146-301A-E (F MC-8FX Family MCU Board for MB95FV100D-101)* , MB2146-401 (F...
  • Page 5 Preface Caution of the products described in this document ■ The following precautions apply to the product described in this manual. Indicates a potentially hazardous situation which, if not avoided appropriately, WARNING could result in death or serious injury and/or a fault in the user’s system. Electric shock, Before performing any operation described in this manual, turn off all the power supplies to the system.
  • Page 6 Preface Because the structure of the MCU socket does not allow an evaluation MCU to be mounted in the incorrect orientation, be very careful of the orientation of the evalu- Damage ation MCU when mounting it. Inserting the evaluation MCU in the wrong orientation may damage the MCU, causing the MCU to become faulty.

  • Page 7: Checking The Delivered Product

    Checking the Delivered Product Before using the product, make sure that the following components are included: Figure 1-1. The inside of a dashed line is the package MC-8L/8FX Family Professional OFTUNE Pack Evaluation Version USB Cable Connector OFTUNE (BGM Adapter enclo- sure) Figure 1-1.
  • Page 8 Checking the Delivered Product MB2146-401-01A is used as a starter kit for F MC-8FX MB95FV100D-101 (ver. 3V) by combining with the bundled products. For details about this product, consult with sales representatives or support representatives. Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...

  • Page 9: Handling Precautions

    Handling Precautions The Starter Kit can be used in connection with its bundled products. To ensure correct use of this product in a proper environment, observe the following guideline: Follow the instructions described in each manual for the bundled product to use this product. ■...

  • Page 10: Feature

    Feature The F MC-8FX starter kit is the best for a performance and functional evaluation, and a check of operation before including F MC-8FX in a user's system.By carrying out additional purchase of the header board, continuation use also of the evaluation with a user's system can be carried out. Below, the feature of the BGM debugger for F MC-8FX is shown.

  • Page 11: Software Setup

    Software Setup In the software setup procedure, you install and operate the software applications. This chapter includes the installing and operating procedure for each software in order. Check the contents and complete the software setup. Installation of software ■ - Installing S OFTUNE - Installing USB driver - Installing sample program...
  • Page 12 Software Setup In a few seconds after the above dialog is displayed, the [Welcome to the Found New Hardware Wizard] screen appears. Click [Next] to install the device driver. The [Install New Hardware Device Drivers] screen appears. Click [Search for a suitable driver for my device (recommended)], and then click [Next] to search for a suitable driver for your device.
  • Page 13 Software Setup The [Locate Driver Files] screen appears. Check [Specify a location], and then click [Next] to specify the location for the driver. A file location dialog appears. Select "SiUSBdB.INF" in the "\Drivers" folder (under a directory where S is installed), and OFTUNE click [Open] to specify the driver.
  • Page 14 Software Setup In the [Copy manufacturer’s files from] box, make sure that the "\Drivers" folder (under a directory where S is installed) is selected, and click [OK]. OFTUNE The [Driver Files Search Results] screen appears. Click [Next] to start installing the driver. The [Completing the Found New Hardware Wizard] screen appears.
  • Page 15 Software Setup Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 16 Software Setup Installing Sample Program ■ Copy only a folder named "\fsg" under "\MANUAL\FirstStepGuide" in S CD into the "\sample" OFTUNE folder under a directory where S is installed. OFTUNE All the data in the "\fsg" folder is set to "read-only". Open the folder’s properties, and deselect the [Read Only] checkbox, and click [OK].

  • Page 17: Operation Of Softune

    Software Setup Operation of SOFTUNE This section describes how to start S Workbench and operate it using the sample program. OFTUNE Starting S Workbench ■ OFTUNE Start S and configure the S development environment. From the [File] menu, click OFTUNE OFTUNE [Open Workspace].
  • Page 18 Software Setup Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 19 Software Setup Select and right-click "emu_dbg.sup" under the "Debug" folder, then click [Change Settings] to start the setup wizard. Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 20 Software Setup The setup wizard is started. Click [Next]. In [Debug Type], specify [Emulator Debugger], and click [Next]. In [ICE Type], specify [MB2146-09], and click [Next]. Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 21 Software Setup Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 22 Software Setup In [Device Name], specify [USB], and click [Next]. In Frequency[Main], set the frequency of oscillator connected to MCU Board, and click [Next]. The [Batch file] setting is not required. Click [Next]. Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 23 Software Setup Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 24 Software Setup Check [Auto-load when starting debug], and specify "fsg_sample.prc" in [After] under [Specification batch file before/after load], then click [Next]. Check [Select All], and click [Next]. Click [Finish] to complete the setup of S development environment. OFTUNE Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 25 Software Setup Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 26 Software Setup Starting Debugging ■ <Turning Evaluation Board on> Before starting debugging, turn the Evaluation Board on. Push POWER-SW on the Board to ON (to the side of " | ") to turn it on (See "Connecting BGM Adapter" for information about POWER-SW) . After the Evaluation Board is turned on, click [Start debug] from the [Debug] menu to start debug- ging.
  • Page 27 Software Setup Initializing MCU ■ Initialize MCU. To do so, click the Reset button on the task bar. Reset button Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 28 Software Setup Running the Program ■ You can run the program by clicking the "execution-related buttons" on the task bar. You can also set a breakpoint by clicking the " " mark in the Source window. [Execution-related buttons] [Go] [Step In] [Step Over] [Step Out] [Run Until Cursor]...
  • Page 29 Software Setup Aborting the Program ■ After you have run the program, you can stop it by clicking the Abort button on the task bar. Abort button Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
  • Page 30 Software Setup Ending Debugging ■ To end debugging, click [End debug] from the [Debug] menu. <Turning Evaluation Board off> After you have finished debugging, turn the Evaluation Board off for safety. Push POWER-SW on the Board to OFF (to the side of " ") to turn it off.
  • Page 31 Software Setup Exiting S Workbench ■ OFTUNE To exit S Workbench, click [Exit] from the [File] menu. OFTUNE Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...

  • Page 32: Hardware Setup

    Hardware Setup In the hardware setup procedure, you configure and connect the hardware products. This chapter includes the configuring and connecting procedure for each product in order. Check the contents and complete the hardware setup. Configuration of each product ■ - Configuring MCU Board - Configuring Evaluation Board Connection of each product...
  • Page 33 Hardware Setup Figure 5-1. MCU board configuration GNDVCC PRODUCT SELECT 1 2 3 4 1 2 3 4 ADAPTER (1) LVD2 detection voltage selection jumper plug Set the value to "LVD0". (2) Voltage selector switch Set the value to "3V". (3) Product selector switch Rotate the center tab to position the pointer for the corresponding number: For 100-pin package, set the value to "0".

  • Page 34: Connection Of Each Product

    Hardware Setup Configuring Evaluation Board ■ Set the following switches on the Evaluation Board, referring to "Figure 5-2 Evaluation Board Config- urarion". Figure 5-2. Evaluation board configuration +3.3V (1) 5V/3.3V Power supply selector jumper plug Set the value to the side of "+3.3V". (2) Analog power supply jumper plug Insert jumper plug for all the switches.
  • Page 35 Hardware Setup Connecting MCU Board and Evaluation Board ■ Connect the MCU Board and the Evaluation Board, referring to "Figure 5-3 Connection of MCU Board and Evaluation Board". Each board has an index to avoid the reverse mounting. Look at the index position to connect the boards.
  • Page 36 Hardware Setup Connecting BGM Adapter ■ Connect the BGM Adapter and the MCU Board, referring to "Figure 5-4 Connection of BGM Adapter". The BGM Adapter and the MCU Board have an index mark (for pin 1) on its connectors. Align the index mark on both sides. Plug a USB cable into the BGM Adapter (the cable is bundled with the BGM Adapter).
  • Page 37 Hardware Setup Connecting Oscillators ■ Plug crystal/ceramic oscillators into the crystal oscillator mounting sockets (one for the main clock and the other for the subclock) on the MCU Board (See "Figure 5-5 Connection of oscillators") . You can see one crystal oscillator mounting socket for main clock and the other for subclock on the MCU Board.
  • Page 38 Hardware Setup Figure 5-5. Connection of oscillators GNDVCC PRODUCT SELECT 1 2 3 4 1 2 3 4 ADAPTER (1) Crystal oscillator mounting socket for main clock Mount a crystal oscillator used as "main clock". (2) Crystal oscillator mounting socket for subclock Mount a crystal oscillator used as "subclock".
  • Page 39 Hardware Setup Connecting AC Adapter ■ Connect the AC Adapter and the Evaluation Board, referring to "Figure 5-6 Connection of AC Adapter". The AC Adapter (bundled with the Evaluation Board) is plugged into the PJ1 on Evaluation Board and the AC 100V Power Supply. Figure 5-6.

  • Page 40: Additional Informations

    Additional Informations For more informations on F MC-8FX Starter Kit, BGM Adaptor and the MCU Board please visit our websites: http://www.cypress.com/documentation/development-kitsboards/mb2146-401 http://www.cypress.com/documentation/development-kitsboards/mb2146-09a-e http://www.cypress.com/documentation/development-kitsboards/mb2146-301a-e Please contact your local support team for any technical question. Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...

  • Page 41: Revision History

    Document Title: F2MC-8FX Family Starter Kit (ver. 3V) MB2146-401-01A Setup Guide Document Number: 002-07547 Origin of Revision ECN# Issue Date Description of Change Change  02/19/2008 HUAL Initial release 5283286 05/24/2016 HUAL Migrated to Cypress format Starter Kit (ver. 3V) MB2146-401-01A Setup Guide, Doc. # 002-07547 Rev. *A...
