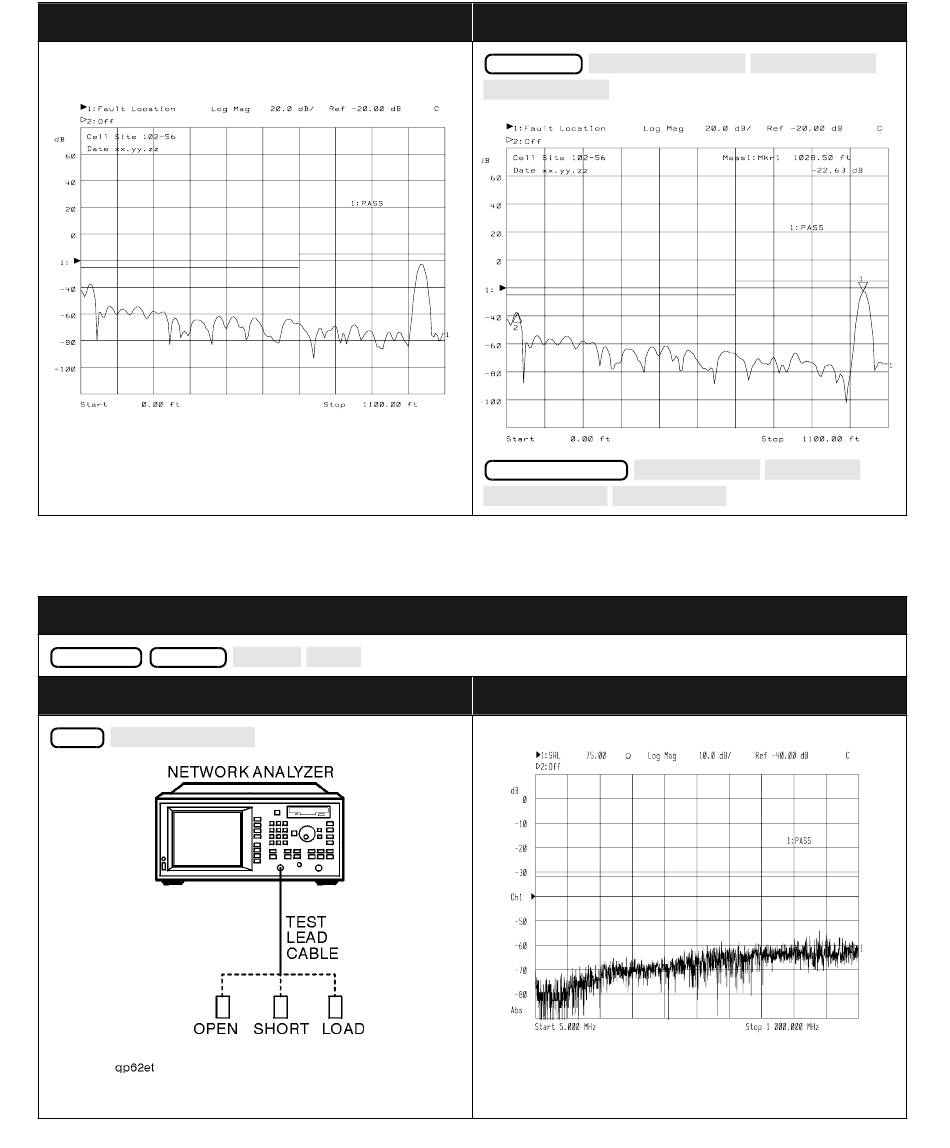

4. View the fault location results.
To Make an SRL Measurement
1. Choose the measurement parameters or recall an instrument state.
PRESET BEGIN
2. Calibrate the analyzer.
CAL Full Band Cal
Leave load connected.
Cable SRL
5. Interpret the measurement / save results.
Marker Search
MARKER
−
Mkr > Max
Define Save Data ON
SAVE RECALL
Prior Menu Save State
3. Verify the calibration.
Directivity is good if trace is below −50 dB.
Wiggle (move) the test-lead cable. The test-lead
cable is good if the trace remains stable.
-2-
Max Search
Search
