Swivelpole Maxis User Manual

User Guide
Swivelpole's Maxis™ Complete Pole Solutions
:
OVERVIEW
This guide is applicable for all Swivelpole's Maxis
(F) and wall/column mount (C).
This guide should be followed to ensure the Swivelpole
should be followed in conjunction with onsite work procedures, safety rules and regulations.
This product must be installed in accordance with the applicable installation code by a person familiar with the construction
and operation of the product and the hazards Involved. Ce produit doit être installé selon le code d'installation pertinent,
par une personne qui connaît bien le produit et son fonctionnement ainsi que les risques inhérents.
Drawings: Copies of client drawings are available online at swivelpole.com/maxis
Ordering: Please email sales@swivelpole.com
Copyright and Patent: The Swivelpole™ and Maxis™ product range is protected worldwide by patents and
registered designs owned by Swivelpole Group Pty Ltd and Exemplar Products Pty Ltd.

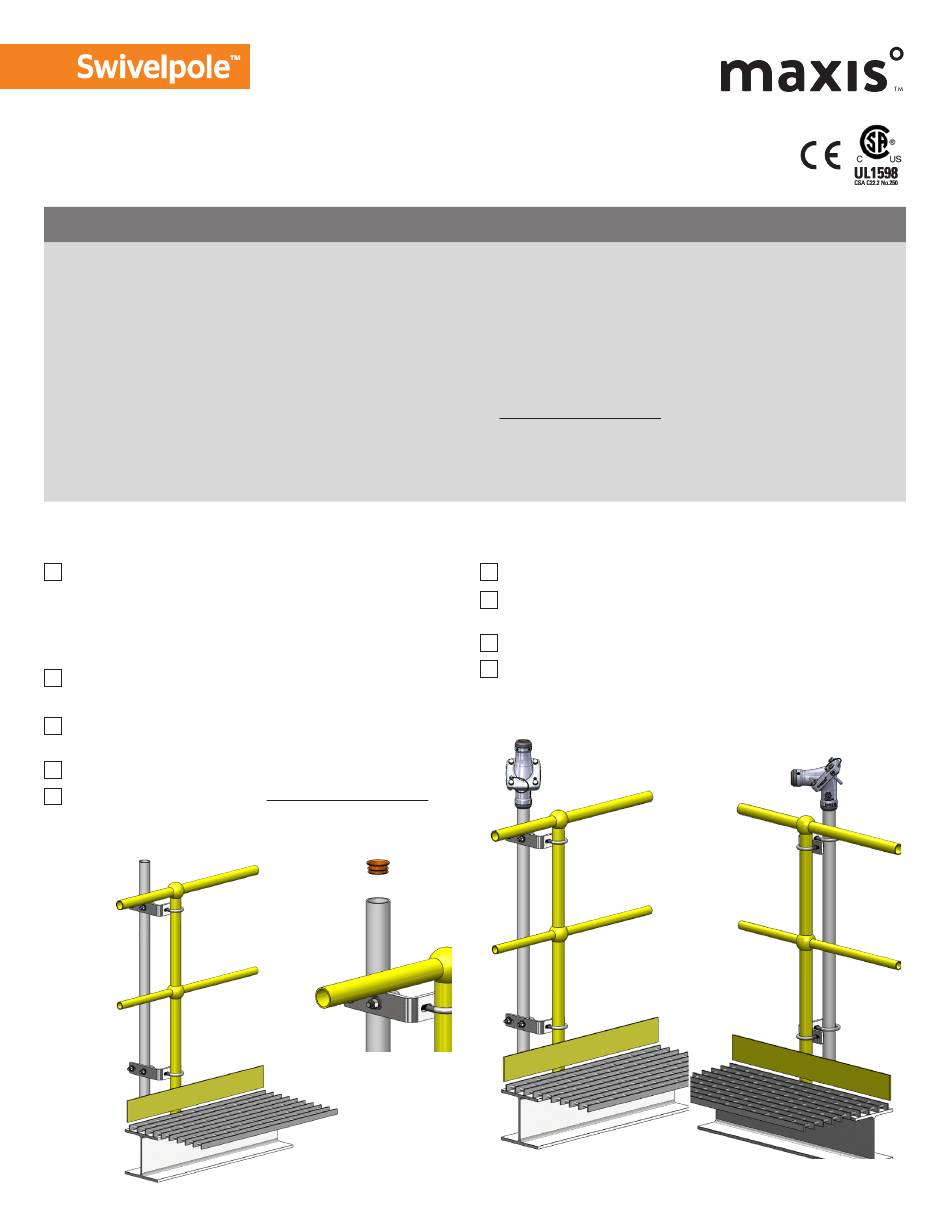

INSTALLING THE POLE BASE
Step 1
Install the pole base to required position on
chosen structure, i.e. stanchion (Fig 1), structure
or floor, using appropriate mounting brackets
where applicable (mounting brackets available from
Swivelpole ).
TM
Ensure the pole base extends 1.97in [50mm] above
the handrail.
Note: 3.54in [90mm] clearance is required above the
top bracket.
Fit orange plastic insert into the pole base. (Fig 2)
For column/wall mounting, refer to client drawing.
T-boxes can be installed during Step 1.
Fig 1
Page 1 Maxis™ Complete Pole Solutions User Guide
TM complete pole solutions - stanchion (S), structure (ST), floor
TM
Fig 2
NEC (March 4, 2020 10:00 AM)
is assembled and installed safely and correctly, and
INSTALLING THE MAXIS
Step 2
Position the Maxis joint onto the pole base (Fig 3).
TM
Adjust the Maxis joint to desired direction and
TM
tighten bottom grub screws firmly. (Fig 3)
Loosen the four bolts by one full turn only.
Swivel the Maxis TM joint to lowered position.
Readjust direction if necessary. (Fig 4)
Fig 3
JOINT
TM
Fig 4
