Model #: SMART700

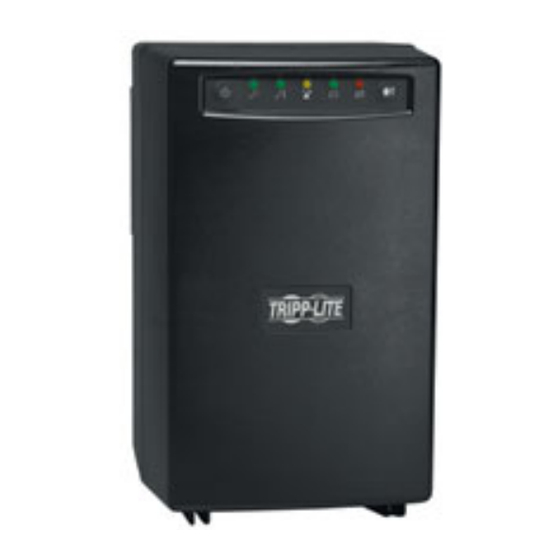

SmartPro Tower UPS System - Intelligent, line-interactive battery backup and network power management
Description
Tripp Lite's SMART 700 intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from
blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 6 minutes at full load during
power failures. 700VA/450 watt power handling capability supports a variety of networking, telecom and various other application types, including the
support of multiple network workstations. Includes a total of 6 UPS supported outlets. Supports remote monitoring of UPS and site power conditions
via built-in USB monitoring port. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible
alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Wall mountable
with UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from
transient surges. Attractive, small-footprint tower housing uses less than 53 square inches of floor or desktop space. Two year warranty with
$250,000
connected equipment
Package Includes
SMART 700 UPS System
Monitoring cable
PowerAlert unattended shutdown and UPS/Power monitoring software
Instruction manual with warranty information
Features
700VA/450 watt power handling capability supports a variety of networking, telecom and various other application types
Built-in voltage regulation and battery support, plus complete AC line surge suppression prevents equipment damage, data loss and
downtime
Large internal batteries offer 20 minutes half load runtime and 6 minutes at full load during power failures
Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an
input voltage range of 75-147V
Includes a total of 6 NEMA5-15R outlets
Includes USB communications port for remote monitoring of UPS status and site power conditions
Communications port enables safe unattended shutdown without data loss during extended power failures
Communications port supports messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage,
DC battery voltage and battery capacity
Communications ports support timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected
insurance.
Highlights
700VA line interactive tower UPS
Maintains 120V nominal output over an input range of 75 to 147V
Network communications supported via USB port
Current monitoring
Input: NEMA 5-15P (120V 15A) / Output: 6 NEMA 5-15R (120V)
2 year product warranty / $250,000 Ultimate Lifetime Insurance (USA, Puerto
Rico & Canada only)
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail:
saleshelp@tripplite.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmartPro SMART700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tripp Lite SmartPro SMART700

  • Page 1 Description Tripp Lite's SMART 700 intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 6 minutes at full load during power failures.
  • Page 2: Specifications

    PowerAlert UPS monitoring and unattended shutdown software with complete cabling included Battery replacement door Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again...
  • Page 3 UPS Input cord length (m) Recommended Electrical 15A 120V Service Input cord length (ft.) Input cord length (m) BATTERY Full load runtime (minutes) 6 min. (450w) Half load runtime 20 min. (225w) (minutes) DC system voltage (VDC) Battery recharge rate Less than 6 hours from 10% to 90% (included batteries) Replacement battery...
  • Page 4 Installation form factors Tower supported with included accessories Installation form factors Wallmount (UPSWM - tower mounting kit) supported with optional accessories Primary form factor Tower UPS / Power Module 11.8 x 7.2 x 7.5 dimensions in primary form factor (height x width x depth / inches) UPS / Power Module 29.8 x 18.4 x 19...
  • Page 5 Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
