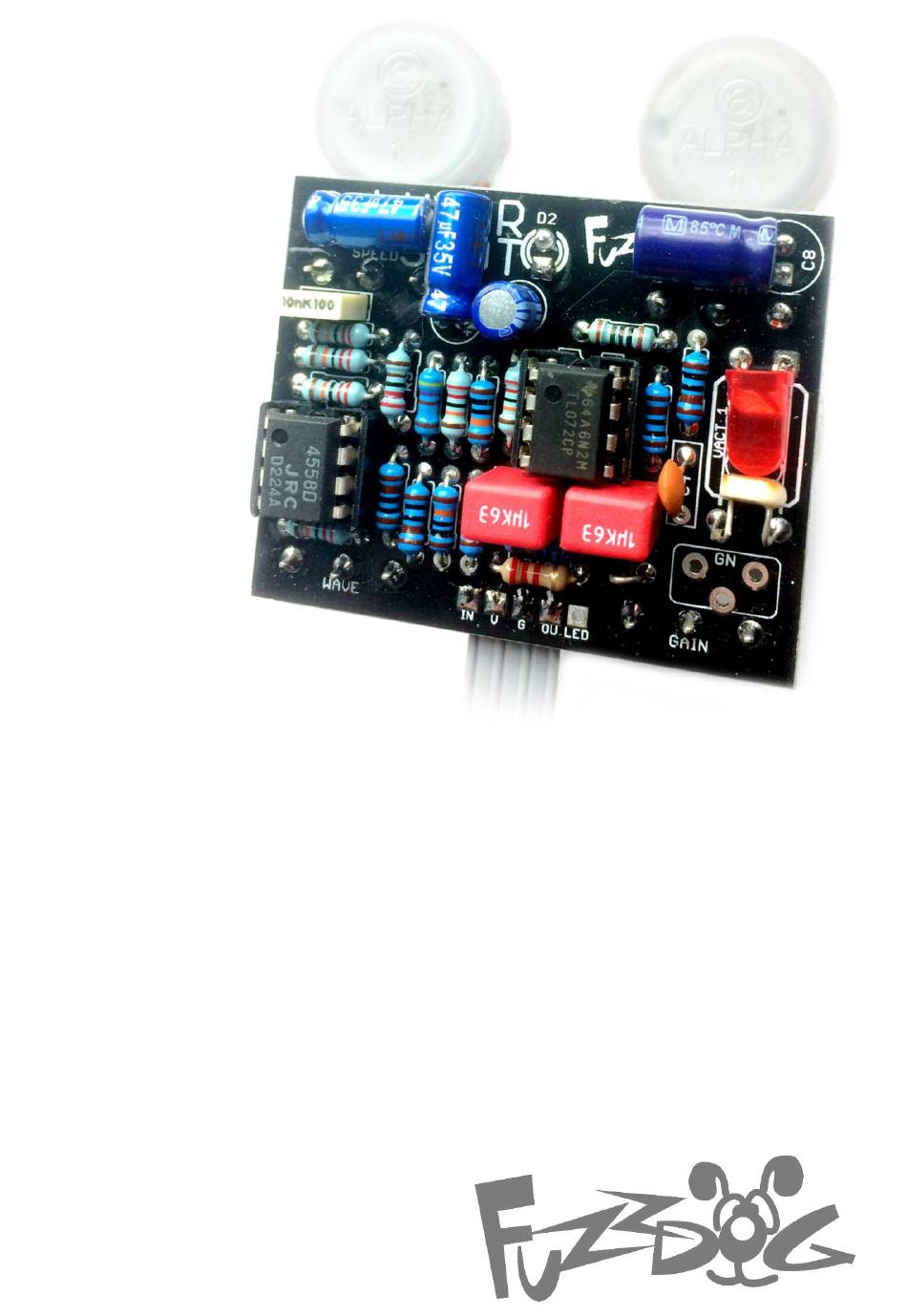

- Page 1 Lunar Shot Trem CultureJam’s Shoot The Moon - a stripped back Tremulus Lune Contents of this document are ©2017 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Schematic 100R 4558 220K 2K2 (CLR) TL072 220K 47u elec VACT_1A 5MM RED LED 220K 47u elec VACT_1B LDR* 220K 10u elec 220K 330p 220K SPEED 100KB DEPTH GAIN 10KB** 100u elec WAVE 500KB 470R 1N4001 *Tayda’s standard LDR works fine (20M dark - 1K light) LED (rate) 100K...
- Page 3 The power and signal pads on the PCB conform to the FuzzDog Direct Connection format, so can be paired with the appropriate daughterboard for quick and easy offboard wiring. Be very careful when soldering the LEDs and diodes. They’re very sensitive to heat.
- Page 4 Test the board! Check the 3PDT Daughterboard document for details if you’re using one. BATTERY 9V GND Your nice, new circuit board INCLUDING WIRED POTS!!!! UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
- Page 5 Wire it up - DC only version (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
- Page 6 BOARD BOARD BOARD LED+ BOARD BOARD Just because the FuzzDog BATTERY drilling doesn’t allow for a battery, who’s to say you won’t use a bigger enclosure? This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
-
Page 7: Drilling Template
Drilling template Recommended drill sizes: Pots Hammond 1590B Jacks 10mm Footswitch 12mm 60 x 111 x 31mm DC Socket 12mm It’s a good idea to drill the holes for the pots 1mm larger to give yourself some wiggle room unless you’re a drill ninja 32mm This template is a rough guide only.
