Tripp Lite BP240V5RT2U Specifications

Model #: BP240V5RT2U
External Battery Pack and Cable. 2U, Expandable, Black 3-Point Connector
Description

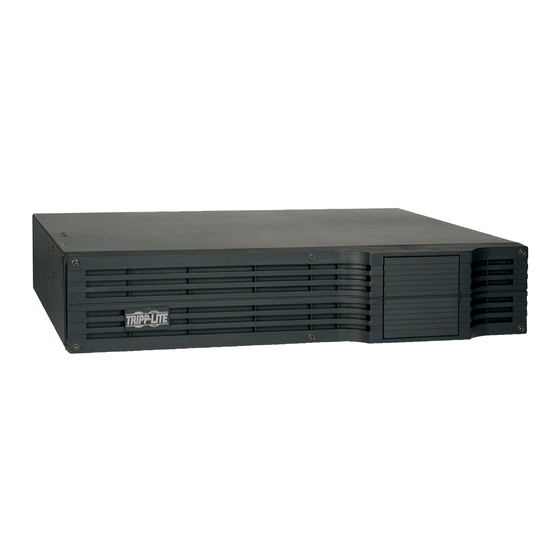

Tripp Lite's BP240V5RT2U is a 2U external battery pack that serves as a replacement for the original battery pack bundled with Tripp Lite
SmartOnline SU5000RT3U and SU5000RT3UHV UPS Systems. Includes a simple DC input connection for fast installation.
NOTE - A maximum of ONE BP240V5RT2U can be connected to each SU5000RT3U or SU5000RT3UHV installation (see specification table).

Specifications

INPUT
UPS Input cord 3 ft. / 0.9 m
length (ft.)
UPS Input cord 0.61
length (m)
Input connection Modular 3-wire DC connector
type
BATTERY
Expandable This battery pack has no DC jack to connect more battery packs - and can only be used in a multiple battery installation
battery runtime as the final battery pack in the chain of connected battery packs. For additional battery packs beyond the single
BP240V5RT2U
DC jack to support the connection of multiple battery packs.
DC system 240
voltage (VDC)
Connects to UPS Black 3-point DC connector
via
PHYSICAL
Shipping weight 136.26
(lbs)
Shipping weight 62
(kg)
Highlights
BP240V5RT2U is a replacement external battery pack intended to replace the
original battery pack bundled with Tripp Lite SmartOnline SU5000RT3U and
SU5000RT3UHV UPS Systems
240VDC battery pack with convenient DC input connector
provided with your SU5000RT3U or SU5000RT3UHV UPS, use
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: saleshelp@tripplite.com
BP240V10RT3U which does include a
Tripp Lite
