Axelent SAFE-X M033-041-100RL Assembly Instructions

Pedestrian barrier telescopic gate
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Pedestrian Barrier Telescopic Gate Assembly instructions
M033-041-100RL (650-1000mm)

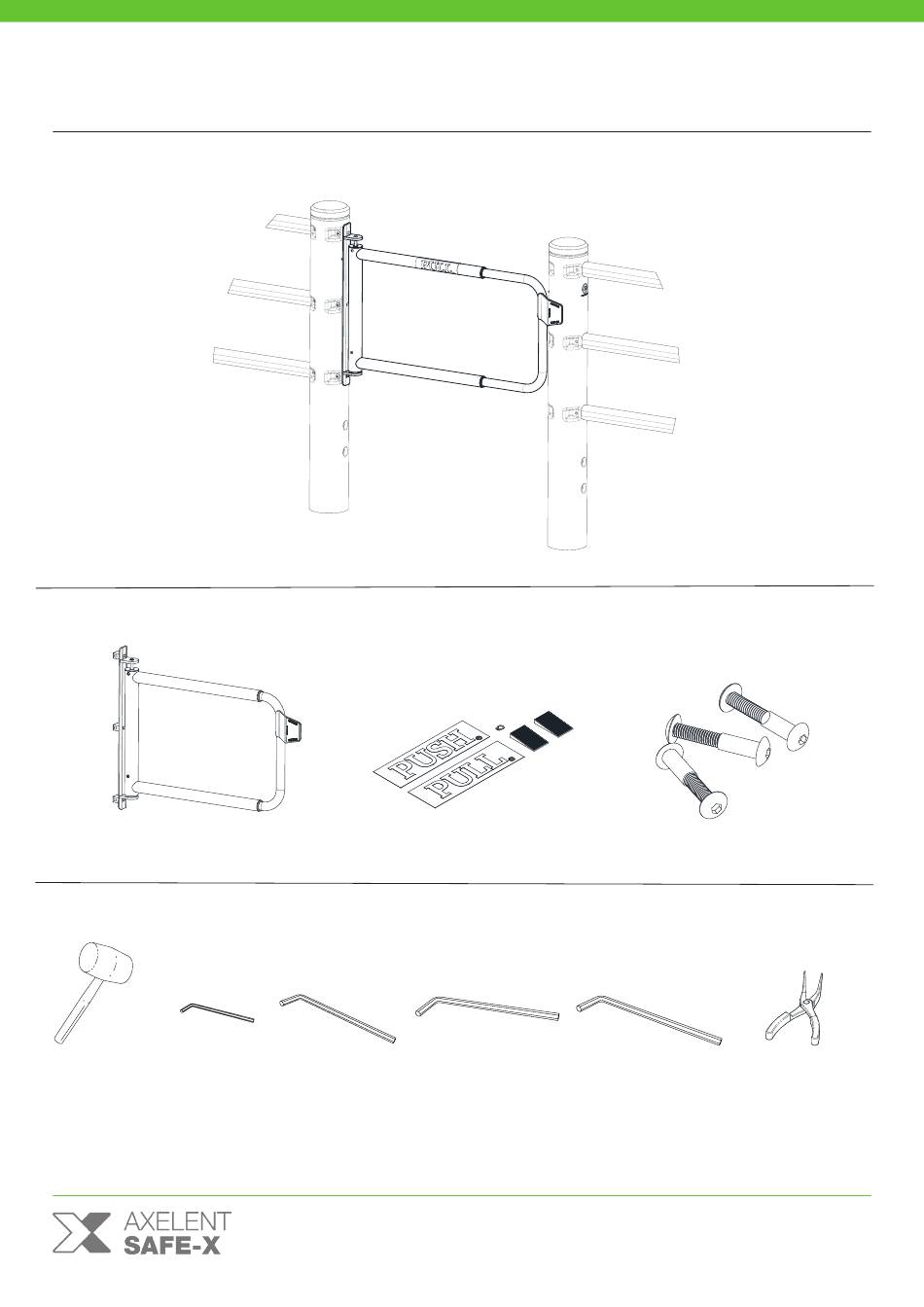

Components
