Tripp Lite S502-01M Specification Sheet

Model #: S502-01M

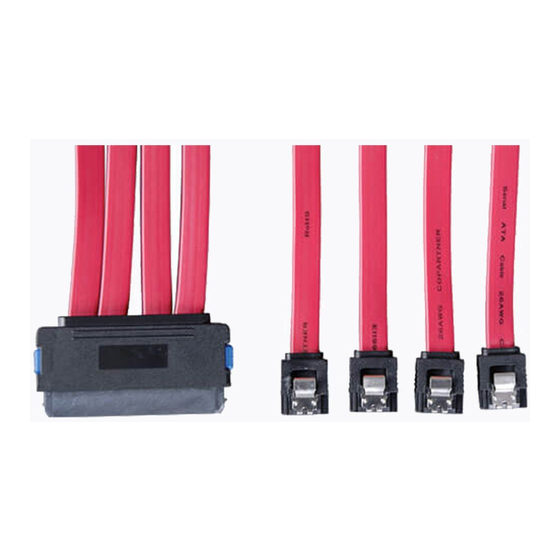

1M Internal SAS Cable - 4-in-1 32Pin (SFF-8484) to 4 x 7pin Cable

Description

Tripp Lite's 32-pin SFF-8484 to 4 x 7-pin internal SAS cable (Serial Attached SCSI) cable is ideal for connecting SAS controllers to individual
SAS/SATA disk drives. High-performance cable provides differential pair signaling with less than 5ps/m in pair skew, improved EMI protection, and
3.0Gbs data rate with rates up to 6.0Gbs. Thinner, flexible cable enables more efficient routing, with improved airflow and thermal mechanics.
Configuration of storage devices is simplified. Tripp Lite SAS assemblies are RoHS compliant and feature a

Applications

SAS Host Bus Adapters (HBA) such as LSI Logic SAS3442X-R and SAS3442E-R, utilizing internal SFF-8484 mating connectors

System Requirements

SAS Host Bus Adapter and Backplane with SFF-8484 mating connector

Package Includes

1-Meter Internal SAS 4-in-1 SFF-8484 to 4 x 7pin Cable

Features

SFF-8484 to 4 x 7pin SAS Cable - 1 meter
Supports data rates up to 3.0Gbs
Thin, flexible cable for easy routing and increased airflow
RoHS Compliant

Specifications

OVERVIEW
Intended Application
Model Type
INPUT
Cable Length (m)

Highlights

Connecting Drives
Internal
1
32-pin SFF-8484 to 4 x 7-pin internal SAS cable
Supports data rates of up to 3.0Gbs
Straight backshell configuration
1 meter in length
