Model #: P906-26I

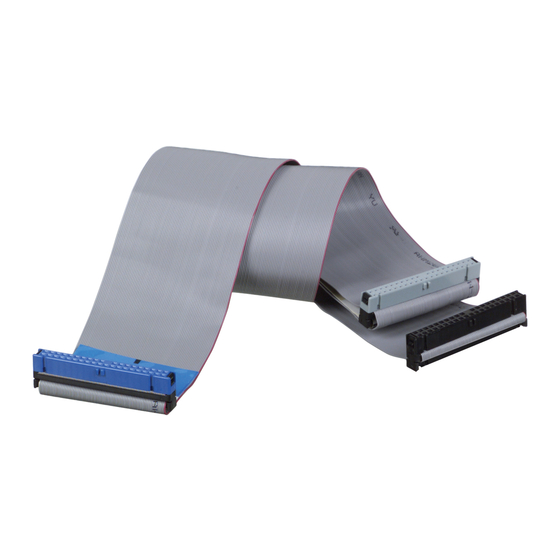

26-inch Internal Dual Ultra 33/66/100 ATA/DMA EIDE Ribbon Cable, (3Conn 40P)
Description
Tripp Lite's enhanced IDE (EIDE) ribbon cable connects up to two internal IDE hard drives to a controller card. This internal dual Ultra DMA/ATA
ribbon supports UDMA/33, ATA/66 and ATA/100. This 26-inch cable is constructed with 80 conductor ribbon and contains three 40pin socket
connectors (one for the controller card and the other two for drives).
System Requirements
- EIDE device drive
- EIDE controller channel with Pin 20 blocked
Package Includes
26-in. Int Dual Ultra 33/66/100 ATA/DMA EIDE Ribbon Cable 3Conn 40P
Features
Connects up to two internal IDE hard drives to a controller card
80 conductor cable
Supports UDMA/33, ATA/66 and ATA/100
Cable contains three 40pin socket connectors (one for the controller card and the other two for drives)
NOTE: pin 20 on the controller side is blocked so this is not a generic EIDE cable solution. controllers must be missing pin 20 to attach to
this cable

Specifications

OVERVIEW
Intended Application
INPUT
Cable Length (in.)
PHYSICAL
Color
Highlights
Connecting Peripherals
26
Gray
An assortment of high quality internal cables
Includes IDE and EIDE ribbon cables, power cables and CD-ROM cable
assemblies
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail:
saleshelp@tripplite.com
