4. Follow the procedure in

Graphics card

Removing the graphics card

About this task
NOTE: You may see a PCIe card installed in some configurations. Follow the same steps except step 4 to remove the
expansion card.
Steps
1. Follow the procedure in
2. Remove the cover.

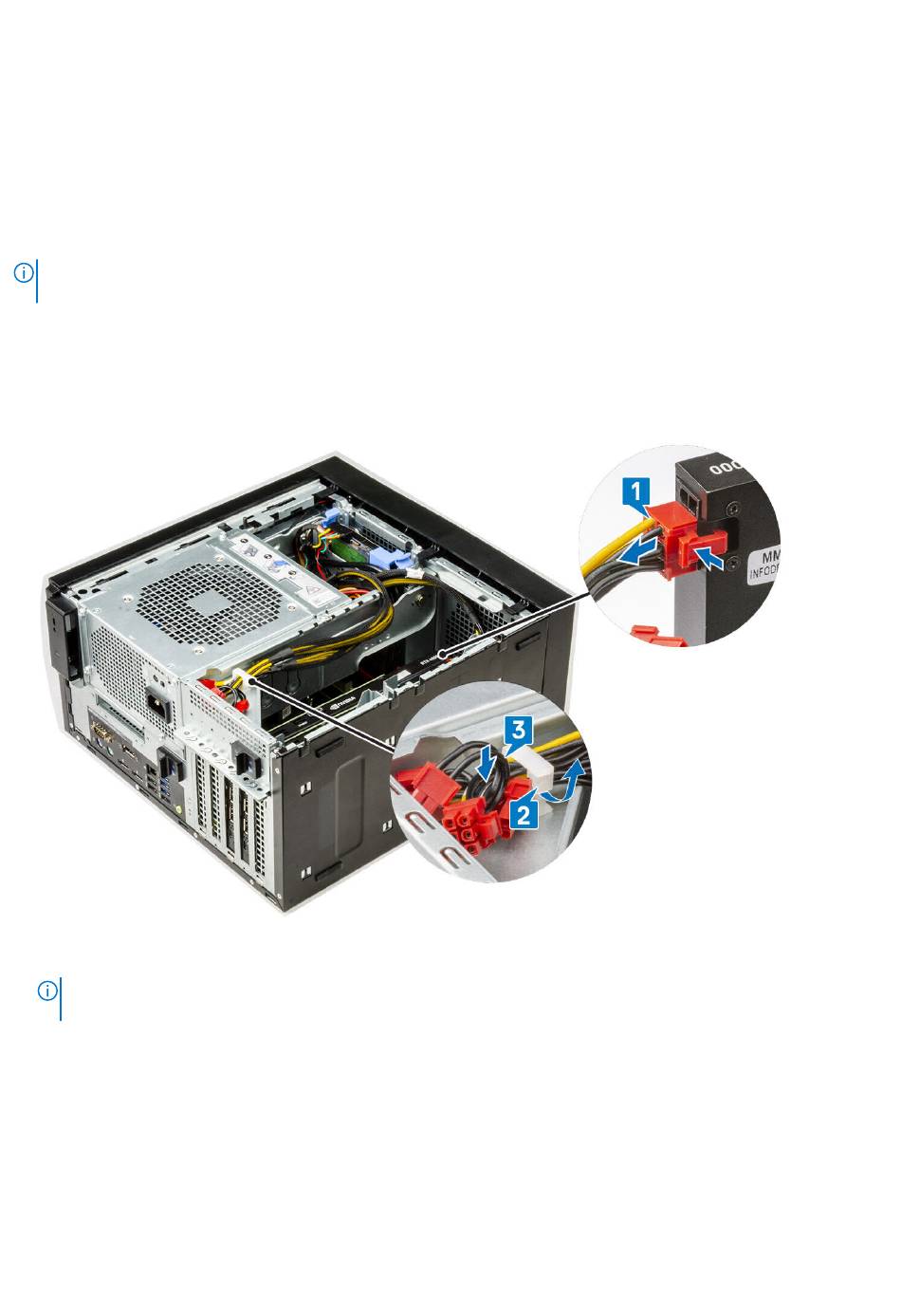

3. Disconnect the VGA power cable from the graphics cards in a dual graphics card configuration [1].
4. Lift the plastics latch to free the cables [2] and unroute the cables from the tabs [3].
5. Open the PSU hinge.
6. Press the releasing clip and disconnect the graphics-card power cable from the connector on the graphics card [1].
7.
NOTE: A PCIe holder may not be required for system shipped with NVIDIA Quadro P4000 or RTX4000 dual graphics
cards configuration.
Lift the side of the PCIe holder that sits on the graphics card [2].
8. Slide the PCIe holder to release the tab on the PCIE holder from the slot on the chassis [3].
After Working Inside Your Computer.
Before working inside your computer.
Disassembly and reassembly 33
