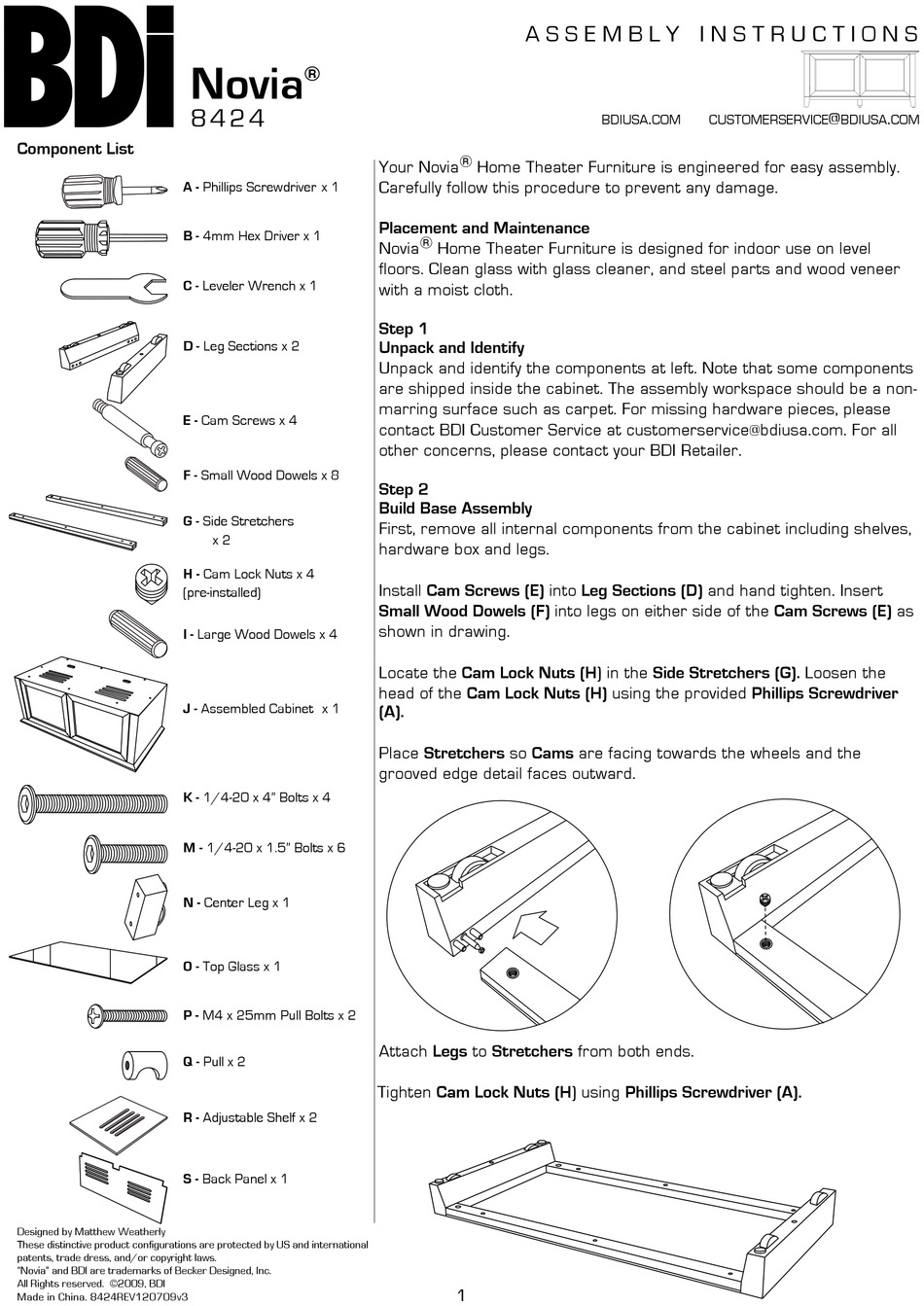

Novia
8 4 2 4

Component List

A - Phillips Screwdriver x 1
B - 4mm Hex Driver x 1
C - Leveler Wrench x 1
D - Leg Sections x 2
E - Cam Screws x 4
F - Small Wood Dowels x 8
G - Side Stretchers
H - Cam Lock Nuts x 4
(pre-installed)
I - Large Wood Dowels x 4
J - Assembled Cabinet x 1
K - 1/4-20 x 4" Bolts x 4
M - 1/4-20 x 1.5" Bolts x 6
N - Center Leg x 1
O - Top Glass x 1
P - M4 x 25mm Pull Bolts x 2
Q - Pull x 2
R - Adjustable Shelf x 2
S - Back Panel x 1
Designed by Matthew Weatherly
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
"Novia" and BDI are trademarks of Becker Designed, Inc.
All Rights reserved. ©2009, BDI
Made in China. 8424REV120709v3
®
Your Novia ® Home Theater Furniture is engineered for easy assembly.
Carefully follow this procedure to prevent any damage.

Placement and Maintenance

Novia ® Home Theater Furniture is designed for indoor use on level
floors. Clean glass with glass cleaner, and steel parts and wood veneer
with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some components
are shipped inside the cabinet. The assembly workspace should be a non-
marring surface such as carpet. For missing hardware pieces, please
contact BDI Customer Service at customerservice@bdiusa.com. For all
other concerns, please contact your BDI Retailer.
Step 2
Build Base Assembly
First, remove all internal components from the cabinet including shelves,
x 2
hardware box and legs.
Install Cam Screws (E) into Leg Sections (D) and hand tighten. Insert
Small Wood Dowels (F) into legs on either side of the Cam Screws (E) as
shown in drawing.
Locate the Cam Lock Nuts (H) in the Side Stretchers (G). Loosen the
head of the Cam Lock Nuts (H) using the provided Phillips Screwdriver
(A).
Place Stretchers so Cams are facing towards the wheels and the
grooved edge detail faces outward.
Attach Legs to Stretchers from both ends.
Tighten Cam Lock Nuts (H) using Phillips Screwdriver (A).
a s s e m b l y i n s t r u c t i o n s
bdiusa
1
.
com
customerservice
@
.
bdiusa
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Novia 8424 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BDI Novia 8424

  • Page 1 S - Back Panel x 1 Designed by Matthew Weatherly These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. “Novia” and BDI are trademarks of Becker Designed, Inc. All Rights reserved. ©2009, BDI Made in China. 8424REV120709v3...
  • Page 2 Step 3 Attaching Base Frame to Assembled Cabinet Install the four (4) Large Wood Dowels (I) into the four corners holes of the Assembled Cabinet (J) and tap in place. Then carefully lower the assembled base frame over the Assembled Cabinet (J), aligning Large Wood Dowels (I) into the corresponding base frame holes.
  • Page 3 Step 5 Repositioning Assembled Cabinet Carefully turn Assembled Cabinet (J) over and install Top Glass (O) on top. Install Pulls (Q) to the front side of the doors using M4 x 25 mm Pull Bolts (P) and Phillips Screwdriver (A). The shelf pins located inside the left and right cabinet space may be repositioned, allowing you to raise or lower the shelf to the desired level.
  • Page 4 This allows easier cabinet movement for greater access to rear panels and wire- management, and permits easier cleaning/vacuuming underneath the cabinet. By following the steps in this guide, you can be sure that your BDI cabinet is in optimum tune and adjustment. If you need additional assistance, contact BDI at customerservice@bdiusa.com.
