Greenheck FGI Series Assembly Instructions

Step 1 - Fabra hood B #471321
®
Open the shipping crates and separate the parts
according to the size of the unit (See figure No.1 on
attached "PARTS LIST")

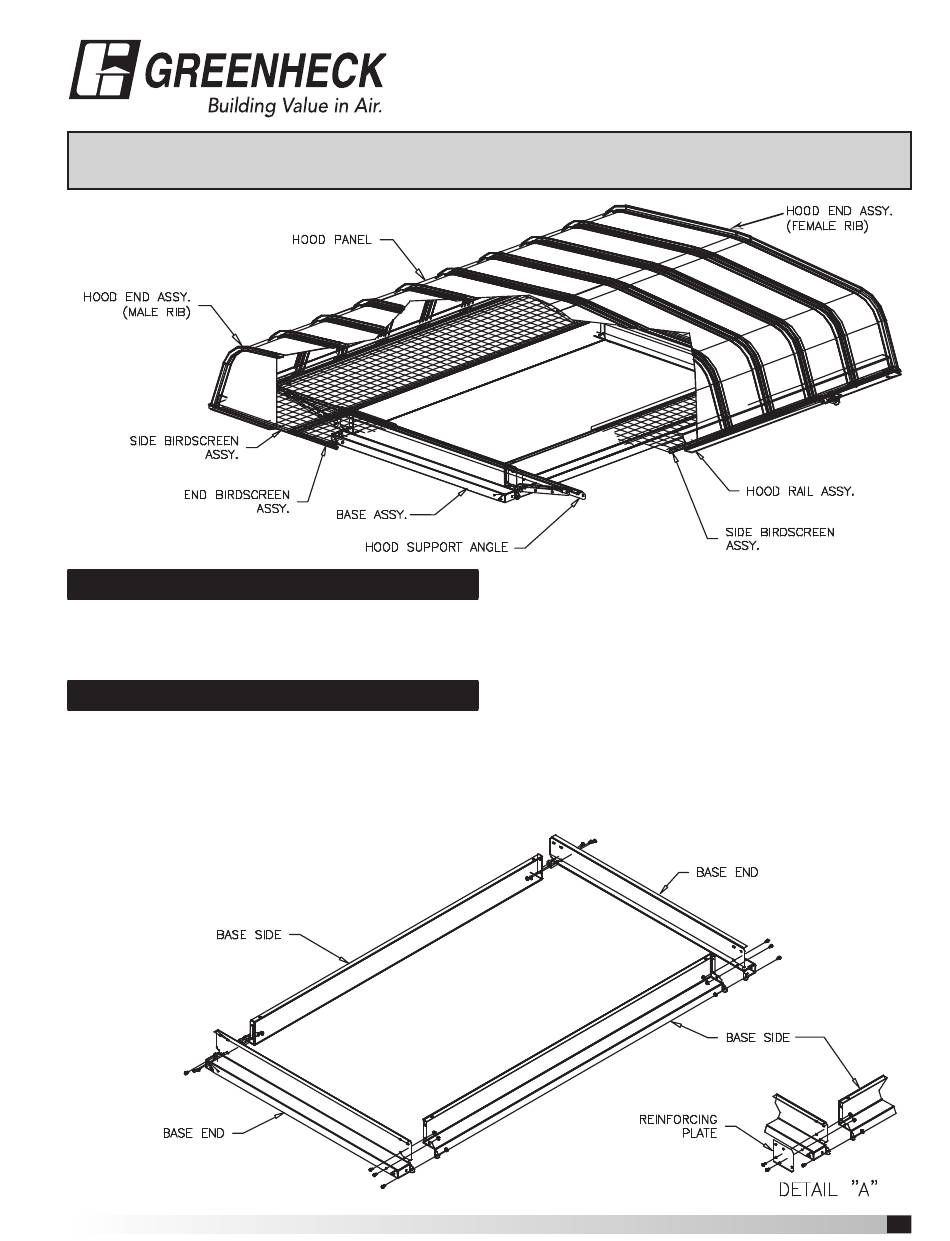

Figure 2 Fabra hood B #471321
Place the two BASE ENDS and the two BASE SIDES
in their approximate relationship to each other. (See
Figure 2) Fasten together using three (3)
per corner for 5 inch high base and four (4)
fasteners per corner for 12 inch high base.
Figure 2
Assembly Instructions
Step 1
Step 2
1 ⁄ -20 fasteners
4
⁄ -20
1
4
Throat length less than or equal to 72 inches
Note: Fasteners should be hand tightened only until
step 4. On some units where the difference between the
hood width and throat width is greater than 32 inches, a
REINFORCING PLATE is required in the corners of the
BASE. (See Figure 2, DETAIL "A")
Document #471321
Fabra Hood • Form B
Single Section with Birdscreen
Fabra Hood • Form B 1
