STAKS HA Benching
PEDESTAL PLACEMENT
ASSEMBLY INSTRUCTIONS
1.

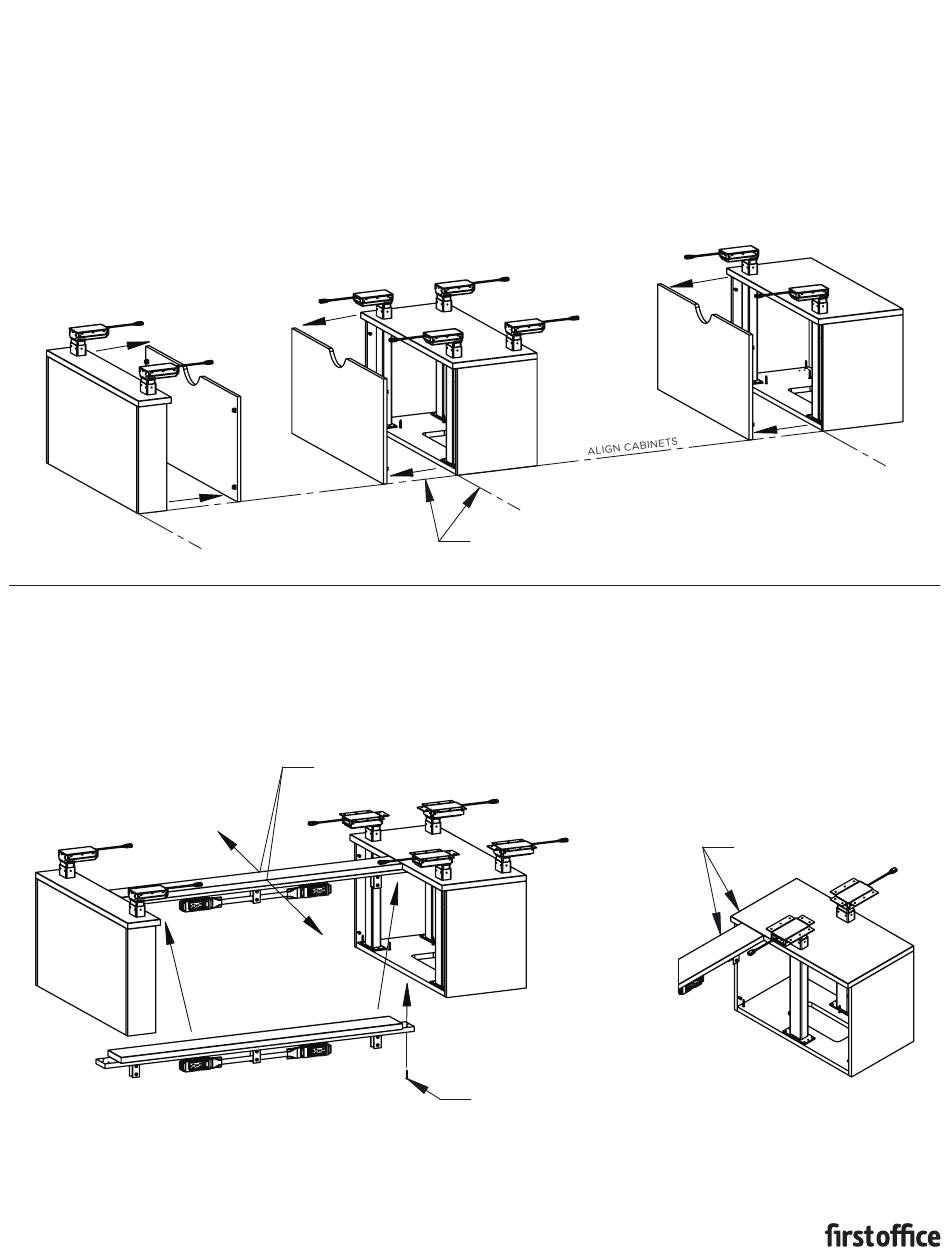

Place cabinets in final desired location. Check for alignment and make
sure cabinets are square. Cabinets should not be moved after assembly
is complete.
2.
Remove front panels from cabinets.
ATTACH CROSS BARS
ASSEMBLY INSTRUCTIONS
1.
Position cross bars and attach with #8 x 1
(HK-103). Cross bars should be centered on double sided configuration
and 3" from the back of single sided configuration.
/
" pan head screws
1
2
CENTERED
DOUBLE SIDED
90 DEGREES
#8 X 1
/
"
1
2
PAN HEAD
INSTRUCTION SHEET #1830828
PART #2584INS
INSET 3"
SINGLE SIDED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for First Office STAKS HA
Summary of Contents for First Office STAKS HA
- Page 1 STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS PEDESTAL PLACEMENT ASSEMBLY INSTRUCTIONS Place cabinets in final desired location. Check for alignment and make sure cabinets are square. Cabinets should not be moved after assembly is complete. Remove front panels from cabinets.
-
Page 2: Column Assembly
STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS COLUMN ASSEMBLY M6 X 12M SOCKET HEAD CAP SCREWS ASSEMBLY INSTRUCTIONS Attach L-Brackets to motor housings using (6) M6 x 12MM socket head cap screws. ATTACH CONTROL BOX #8 X 2" PAN HEAD SCREWS... -
Page 3: Install Work Surfaces
STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS INSTALL WORK SURFACES ASSEMBLY INSTRUCTIONS Place work surfaces on columns and align pre-drilled holes with holes on L-brackets. Use #12 x 1" truss head screws in all holes that are accessable to secure work surfaces. (HK-71) Remaining screws will be installed later. - Page 4 STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS RAISE WORK SURFACES ASSEMBLY INSTRUCTIONS Plug mains cable into 120V outlet to power up the system. Press the up arrow on the control panel and raise the work surface to top position.
- Page 5 STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS EDGE MODESTY INSTALLATION ASSEMBLY INSTRUCTIONS Assemble bracket by screwing cap to bracket using (2) 6-32 x " phillips flat head bolts. Slide brackets on to back edge of work surface. Center modesty panel on work surface end to end and secure by tightening set screws.
- Page 6 STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS RAIL MODESTY INSTALLATION ASSEMBLY INSTRUCTIONS Attach modesty pins to cross rail by inserting pin into pre-drilled hole and secure with (2) #8 x 1" flat head screws per pin. (HK-73) Align holes in bottom of modesty panel with pins and slide down until seated on rail.
- Page 7 STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS CABLE BASKET INSTALLATION ASSEMBLY INSTRUCTIONS Install cable basket by inserting bolt through hole in cable basket and through stand off. Thread bolt into insert nut on the bottom of the cross rail support and tighten.
- Page 8 STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS DIGITAL HANDSET OPERATION OPERATION INSTRUCTIONS 1. Panel 3 Button: Memory 3 • & : Parallel up and down • S Button: Store memory • 1 Button: Memory 1 • 2 Button: Memory 2 •...
- Page 9 STAKS HA Benching INSTRUCTION SHEET #1830828 PART #2584INS DIGITAL HANDSET OPERATION CONTINUED TROUBLESHOOTING A. The Desk Does Not Drive At All Check: Is the mains connected to the control box? Try/Solution: Try to connect a lamp or similar to the mains supply to check that the supply voltage is OK.
