Cozzia CZ357 Manual

How to replace footrest cables
Hide thumbs Also See for CZ357:

Advertisement

Quick Links

Download this manual
CZ357 - How to replace footrest cables

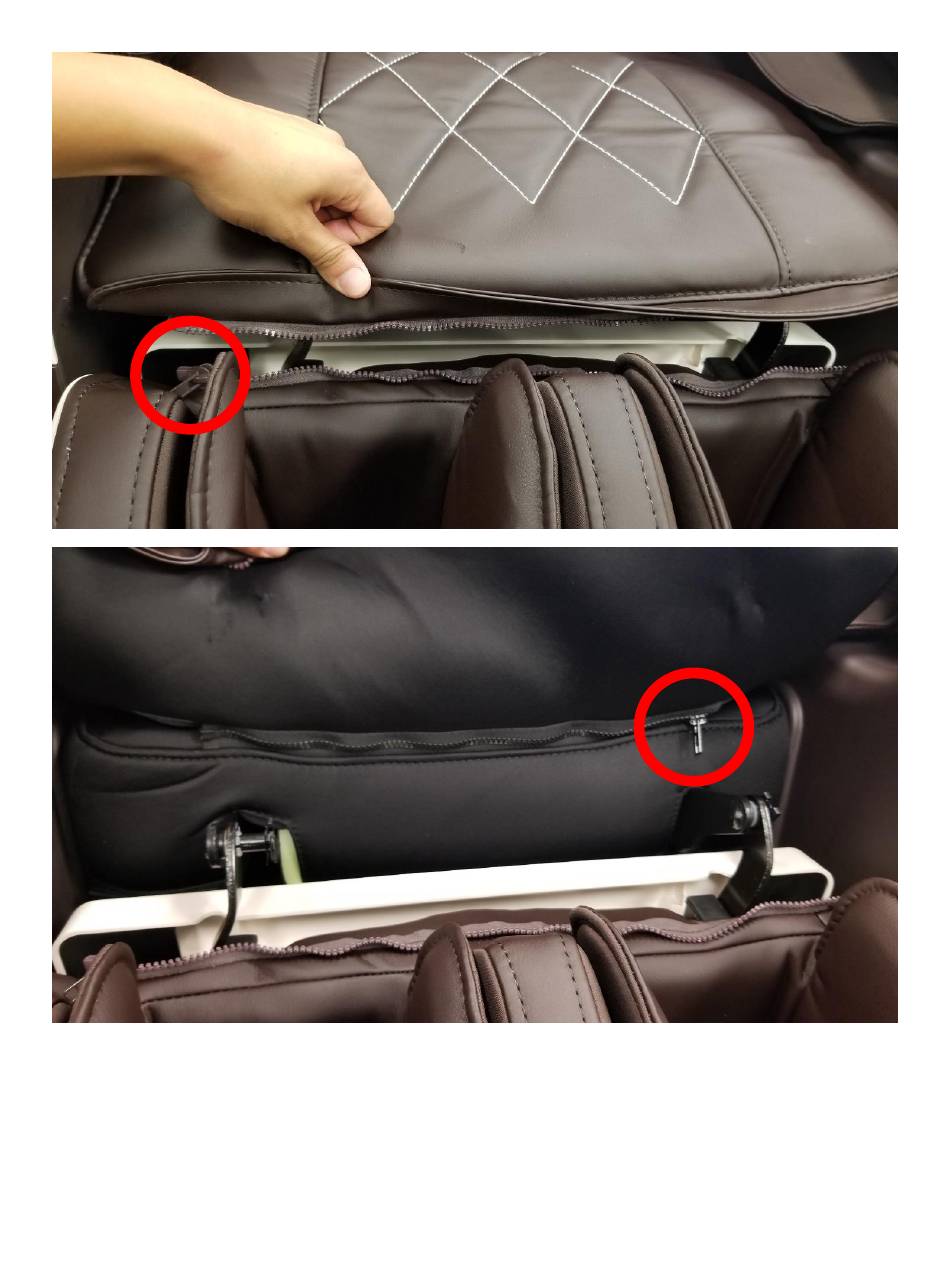

Undo seat pad zippers.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CZ357 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cozzia CZ357

Summary of Contents for Cozzia CZ357

  • Page 1 CZ357 - How to replace footrest cables Undo seat pad zippers.
  • Page 2 CZ357 - How to replace footrest cables Remove plugs/air tubing and footrest pins/clips. Remove footrest.
  • Page 3 CZ357 - How to replace footrest cables Unscrew backrest cover screws. If bottom ones are difficult to access, try reclining the chair for better angle. Remove back cover by pushing cover down to release from hinges...
  • Page 4 CZ357 - How to replace footrest cables View of back cover hinges once cover is removed...
  • Page 5 CZ357 - How to replace footrest cables Remove back pad. Unzip top and unplug heat wires...
  • Page 6 CZ357 - How to replace footrest cables Remove top 4 screws Use flathead screwdriver and something to prevent damaging cover to pop off panel clips.
  • Page 7 CZ357 - How to replace footrest cables Inside view of rear speaker panel cover. Remove LSS speaker panel cover by popping off clips.
  • Page 8 CZ357 - How to replace footrest cables Inside view of LSS speaker panel cover.
  • Page 9 CZ357 - How to replace footrest cables Remove screws/bolts circled above. Locate LSS shoulder airbag assembly screw and remove.
  • Page 10 CZ357 - How to replace footrest cables Detach LSS speaker panel. Set on top of backrest.
  • Page 11 CZ357 - How to replace footrest cables Recline chair to reveal side panel screw and remove.
  • Page 12 CZ357 - How to replace footrest cables Remove side panel. Hinge connection points circled. Lift side panel and slide forward. Disconnect air tube.
  • Page 13 CZ357 - How to replace footrest cables Locate and remove screws underneath and remove PCB tray cover. Cover removed and tray exposed.
  • Page 14 CZ357 - How to replace footrest cables Identify footrest cable (single wire that splits into 2 later down the wire route). Take photos of wire route to reference. Cut all associated zip ties.
  • Page 15 CZ357 - How to replace footrest cables Unplug footrest cable (black plug).
  • Page 16 CZ357 - How to replace footrest cables Remove wire clips underneath seat cover. Footrest cables can now be removed and ready to install new cables.
