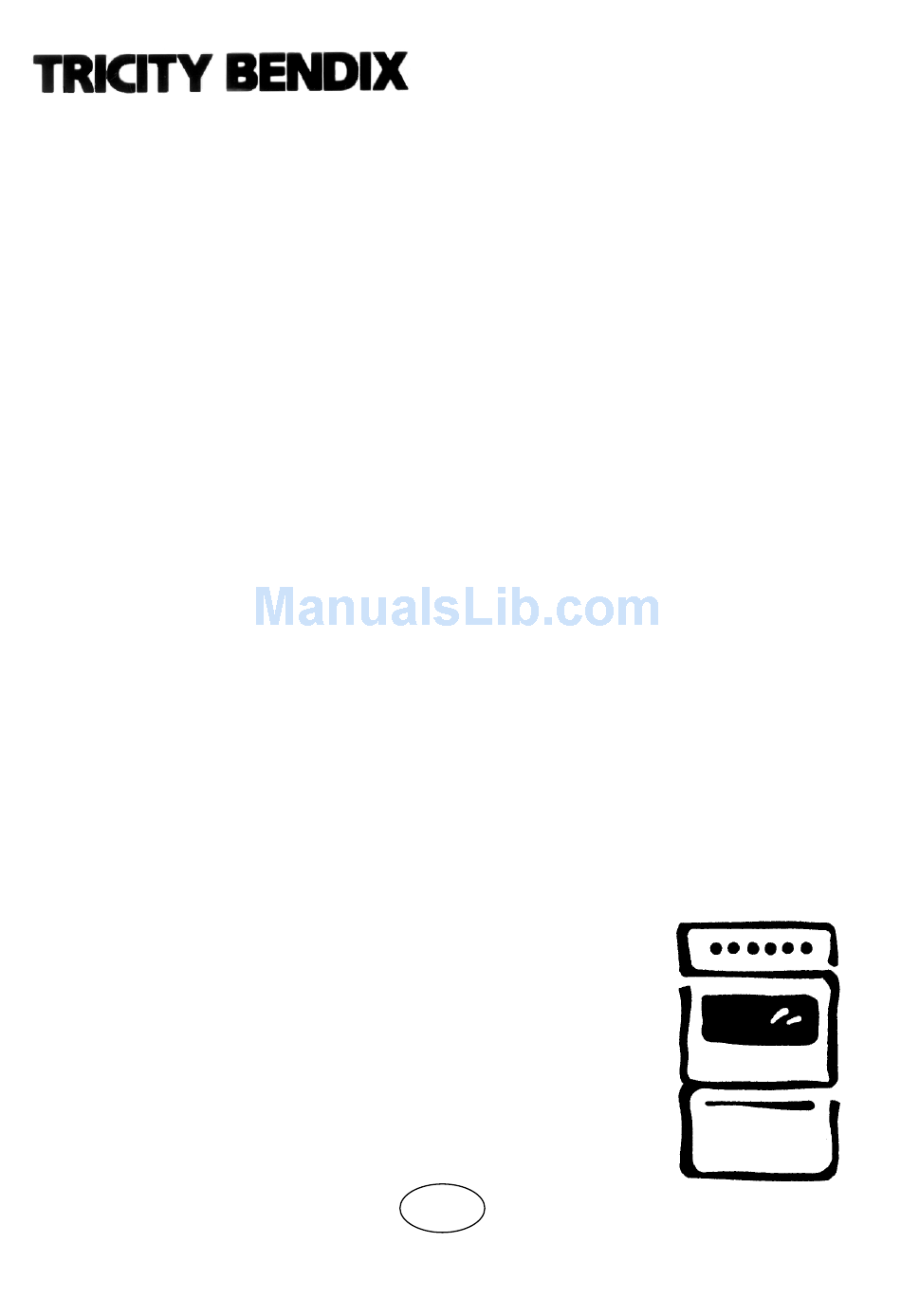

- Page 1 OPERATING & INSTALLATION INSTRUCTIONS GAS COOKER SIG 233/1...
-
Page 2: Table Of Contents
Instructions for the User Warnings Use and care Use of the appliance Using the Oven Using the Grill Using the Hob Hints and tips Maintenance and cleaning Oven bulb replacement Something Not Working Service and spare parts Guarantee Conditions The symbols below will guide you when reading CONTENTS Instructions for the Installer Technical Features... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. Installation • This cooker must be installed by qualified personnel, according to the manufacturer’s instructions and to the relevant British Standards. -
Page 4: Instructions For The User
INSTRUCTIONS FOR THE USER USE AND CARE Control panel 1. Back left burner control knob 2. Front left burner control knob 3. Front right burner control knob 4. Back right burner control knob 1. Back left burner (auxiliary) 2. Front left burner (rapid) Models: SIG 233/1W, SIG233/1B 5. -
Page 5: Before The First Use Of The Cooker
Before the First Use of the Cooker Remove all packaging both inside and outside of the cooker, before using it. Before first use, the oven should be heated without food. During this time, an unpleasant odour may be emitted. This is quite normal. 1. -
Page 6: Cooking In The Oven
Ignition Attention: when turning on the oven and grill burner the oven door has to be opened. • Open the oven door, push and turn the control knob to the left to position 8, keeping the control knob pressed. • At the same time, push the electronic ignition knob (see fig). -
Page 7: Using The Grill
Using the Grill When grilling, the accessible parts of the appliance are hot and the appliance should not be left unattended. Take care that children do not play near it. While the grill is operating leave the oven door half open and put the grill deflector “A”... - Page 8 Grilling meat When using the grill it has to be supervised, the oven door opened and the grill deflector “A” in its place. • Prepare the meat to be grilled, lightly brush it with oil on both sides. • Place it on the roasting grid. •...
-
Page 9: Cooking Chart
Tray type or Food dimension (dxwxh) cm Roasting meal - beef Roasting tray delivered with - lamb the cooker - pork and veal Poultry - chicken Roasting tray - turkey below 4.5 Kg delivered with - turkey over 4.5 Kg the cooker - duck Cakes... -
Page 10: Using The Hob
Using the Hob The Hob Burners The symbol on the control panel shows which burner is operated by the knob. panel). Maximum level Minimum level Use the maximum level for boiling and the minimum for simmering. Always choose positions between the minimum and maximum, never between maximum and off. - Page 11 The following diameter pans can be used: Power Diameter (mm) Burner (kW) min. Rapid 3,00 Semi-Rapid 2,00 Auxiliary 1,00 Accessories delivered with the appliance The following accessories are supplied with your appliance. • Grill Deflector To be used when the grill is operation. •...
-
Page 12: Hints And Tips
Condensation and steam When food is heated it produces steam in the same way as a boiling kettle. The oven vents allow some of this steam to escape. However, always stand back from the oven when opening the oven door to allow any build up of steam or heat to release. -
Page 13: Maintenance And Cleaning
MAINTENANCE AND CLEANING The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire. Before cleaning, ensure all control knobs are in the OFF position, and the appliance has cooled completely. Before any maintenance or cleaning carried out,... -
Page 14: Oven Bulb Replacement
DO NOT clean the oven door while the glass panels are warm. If this precaution is not observed the glass panel may shatter. If the door glass panel becomes chipped or has deep scratches, the glass will be weakened must replaced possibility of the panel shattering. -
Page 15: Something Not Working
SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 16: Service And Spare Parts
Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls. For general enquiries concerning your Tricity Bendix appliance and or for further information on our products, contact our Customer Care Department by letter or telephone as follows:... -
Page 17: Guarantee Conditions
Standard Guarantee Conditions We Tricity Bendix undertake that if, within 12 months of the date of the purchase, this Tricity Bendix appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that: •... -
Page 18: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER TECHNICAL FEATURES Free standing Pan support Front right burner Back right burner Front left burner Back left burner Hob ignition Oven Oven Oven burner power Grill Grill burner power Oven lamp Oven ignition Cleaning Cavity dimensions Height Width Depth... -
Page 19: Advice For Safety
Gas connections • Before installation ensure that the local distribution conditions (gas pressure) pre-setting appliance are consistent. • This appliance must be installed only in a room with good ventilation. • This appliance must not connected to a chimney. It has to be installed and connected in accordance with the rules in force. -
Page 20: Electrical Connections
Electrical connections Any electrical work required to install this cooker should be carried out by a qualified electrician or competent person, in accordance with the current regulations. THIS COOKER MUST BE EARTHED. The manufacturer declines any liability should these safety measures observed. -
Page 21: Location Of Appliance
Location of appliance The appliance must not be installed in a bed-sitting room of volume less than 20m shower room. It is essential that the appliance is positioned as in the enclosed figure i.e. shelves, wall cabinets and cooker hoods must be fitted a minimum of 690mm directly above the hob and 400mm above the hob when fitted in line with the outside of the appliance. -
Page 22: Gas Connection
Levelling The appliance is provided with adjustable small feet placed in the back and front corners of the base. By adjusting the small feet it is possible to change the height of the appliance so as to ensure a better levelling with other surfaces and a uniform distribution of the liquids contained in pans or pots. - Page 23 LPG flexible connections must be of a type suitable for LPG and capable of operation up to 50mbar and to carry a red strips, band or label. The appliance flexible connector should not be subjected to undue forces either in normal use or whilst connected or disconnected;...
-
Page 24: Gas Connections
Levelling The appliance is provided with adjustable small feet placed in the back and front corners of the base. By adjusting the small feet it is possible to change the height of the appliance so as to ensure a better levelling with other surfaces and a uniform distribution of the liquids contained in pans or pots. - Page 25 Replace the nozzles of the hob burners Before any modifications or conversion to a kind of different gas, you must DISCONNECT the cooker from the electricity supply and ensure that all control knobs are in the OFF position, and the appliance has cooled completely.
- Page 26 Replace the nozzles of the oven burners Oven burner To replace the gas oven nozzle, follow this procedure: • Check the table no.1 for diameter of nozzle; • Remove the oven removable base panel; • Remove the screw 1 on the oven burner •...
- Page 27 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this...
- Page 28 Customer Care Department Major Appliances Addington Way Luton Bedfordshire LU4 9QQ SIG233/1W-SIG233/1B – 342701435-B-16012007-02 From the Electrolux Group. The world’s No.1 choice The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
