OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SI 453
39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI 453 and is the answer not in the manual?

Questions and answers

Related Manuals for Tricity Bendix SI 453

Summary of Contents for Tricity Bendix SI 453

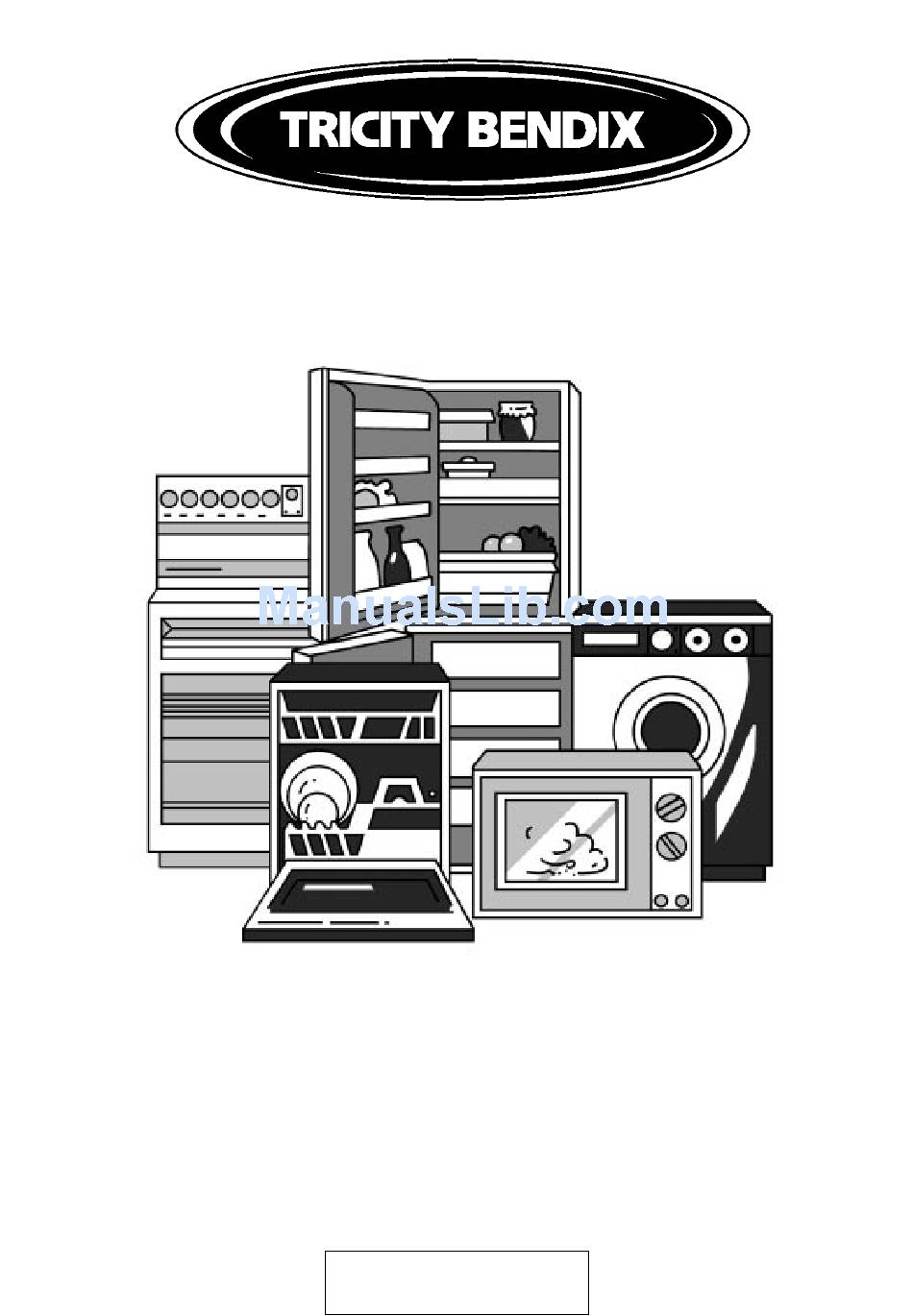

  • Page 1 OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. SI 453...

  • Page 2: Technical Details

    TECHNICAL DETAILS MODEL NO. SI 453 Voltage: 230/240 Volts AC 50Hz Wattage: 10.0/10.9kW Height: 900mm Width: 550mm Depth: 600mm Weight: 61kg This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC.

  • Page 3: Table Of Contents

    CONTENTS Technical Details ................. 2 Contents .
  • Page 4 CONTENTS Oven Cooking Chart ................21 Roasting Chart .

  • Page 5: Preface

    They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix appliance, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous appliance.

  • Page 6: Safety

    SAFETY THESE WARNINGS ARE INTERESTS ENSURE THAT YOU UNDERSTAND THEM ALL BEFORE INSTALLING OR USING THE APPLIANCE. PLEASE READ CAREFULLY BEFORE INSTALLATION This appliance is heavy and care must be taken when moving it. Ensure that all packaging, both inside and outside the appliance, has been removed before the appliance is used.

  • Page 7: After Use

    Take care recommendations given for tending the food when grilling. Always use oven gloves to remove and replace food in the oven. Ensure that you support the grill pan when it is in the withdrawn or partially withdrawn position. Ensure that unobstructed to ensure ventilation of the oven cavity.

  • Page 8: Introduction

    INTRODUCTION WARNING: THIS APPLIANCE MUST BE EARTHED RATING PLATE This is situated on the lower front frame of the appliance and can be seen upon opening the top cavity door. Alternatively the rating plate may also be found on the back or top of some models (Where applicable). The appliance must be protected by a suitably rated fuse or circuit breaker.

  • Page 9: Reversible Main Oven Door

    REVERSIBLE MAIN OVEN DOOR If you require the oven door to be hinged on the opposite side, you will need to contact a qualified Service Engineer. See page 30 for your nearest Service Force Centre. PLEASE NOTE that a charge will be made.

  • Page 10: Getting To Know Your Cooker

    GETTING TO KNOW YOUR COOKER THE CONTROL PANEL FEATURES The Timer Main Oven Temperature Control Top Oven Temperature Control Selector Control Hotplate Controls Main Oven Indicator Neon Top Oven Indicator Neon...

  • Page 11: The Timer

    THE TIMER Please note that this is a 24 hour clock, for example 2.00 pm is shown as 1400. In the following pages we explain how to set the controls. Read through them a few times until you are familiar with the procedure. If the oven is switched off on the wall, or there is a loss of power, the clock will stop and you will not be able to use the ovens.

  • Page 12: Setting The Controls For Automatic Use

    AUTOMATIC CONTROL The automatic control can be used to control either oven but you can only use the control for both ovens at the same time if the cooking time is the same. When you use the automatic controls for the first time it's probably best to choose a time when you are at home.

  • Page 13: The Ceramic Hob

    THE CERAMIC HOB CAUTION: DO NOT USE THE APPLIANCE IF THE CERAMIC GLASS IS DAMAGED. IF A FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE APPLIANCE IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT YOUR LOCAL SERVICE FORCE CENTRE. To operate the dual hotplate, turn the control knob clockwise for the full area or anti-clockwise for the centre section.

  • Page 14: Hot Hob Indicator

    To prolong the life of the hotplates:- Never use utensils with a skirt, e.g. a bucket Never use an asbestos mat Never leave the hotplates ON when not covered with a saucepan. Ensure that hob and saucepans are clean and dry before the start of cooking to reduce cleaning.

  • Page 15: The Dual Grill

    THE DUAL GRILL USES OF THE GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food.

  • Page 16: Hints And Tips

    HINTS AND TIPS In order to become acquainted with the performance of the Dual Grill it is advisable to check food regularly when grilling. Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

  • Page 17: The Top Oven

    THE TOP OVEN USES OF THE TOP OVEN The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking on one level and for smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche.

  • Page 18: Hints And Tips

    HINTS AND TIPS Most cooking should be carried out using an oven shelf positioned in one of the shelf runners. Larger roasts and casseroles should normally be cooked in the main oven. However, they may be cooked on a flat shelf from the main oven placed on the base of the top oven provided there is sufficient room for air circulation around the food.

  • Page 19: The Main Fan Oven

    THE MAIN FAN OVEN USES OF THE FAN OVEN PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating, however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g.

  • Page 20: Hints And Tips

    HINTS AND TIPS Arrange the shelves in the required positions before switching the oven ON. Shelves are numbered from the bottom upwards. When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf. This will allow the heat to circulate freely for the best cooking results.

  • Page 21: Oven Cooking Chart

    OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10° C to suit individual preferences and requirements. FOOD Biscuits Bread Bread rolls/buns Cakes: Small & Queen Sponges Victoria Sandwich Madeira...

  • Page 22: Roasting Chart

    ROASTING CHART ROASTING CHART INTERNAL TEMPERATURES - Rare : 50-60°C; Medium : 60-70°C; Well done:70-80°C MEAT Beef Beef, boned Mutton and Lamb Pork and Veal Chicken Turkey and Goose Duck Pheasant Rabbit Potatoes with meat Potatoes without meat The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat.

  • Page 23: Defrost Feature

    DEFROST FEATURE USES OF DEFROST FEATURE This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones etc.

  • Page 24: Care And Cleaning

    CARE AND CLEANING BEFORE CLEANING ALWAYS ALLOW THE COOLING FAN TO COOL THE APPLIANCE DOWN BEFORE SWITCHING OFF AT THE ELECTRICITY SUPPLY. CLEANING MATERIALS Before using any cleaning materials on your cooker, check that they are suitable and that their use is recommended by the manufacturer.

  • Page 25: Cleaning The Outside Of The Cooker

    HINTS AND TIPS TO REDUCE HOB SOILAGE: Make sure the bottom of the saucepan and the cooking area are clean and dry before cooking begins. Ensure saucepans accommodate food to avoid boil overs. If possible, wipe up spills and splatters as they occur, but take care to avoid steam burns.

  • Page 26: Cleaning Inside The Grill/Oven Compartments

    CLEANING INSIDE THE GRILL/OVEN COMPARTMENTS The sides, top and back of the grill/top oven and main oven are coated with a special Stayclean coating. The Stayclean coating should not be cleaned manually. The vitreous enamel fan oven base and grill compartment base, can be cleaned using normal oven cleaners or aerosol oven cleaners with care.

  • Page 27: To Replace The Outer Glass

    4. Using both hands, gently tilt the top of the door glass towards you. Lift slightly to disengage the locators from the two bottom brackets. 5. Clean the outer and inner glass using hot soapy water or Hob Brite may be used with care. DO NOT use Hob Brite on the Stainless Steel or painted finishes.

  • Page 28: Something Not Working

    SOMETHING NOT WORKING? We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one, which you can solve yourself without the expense of a service call. If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the appliance is under guarantee.

  • Page 29: Service And Spare Parts

    Dublin 12 Telephone: 01 4090752 CUSTOMER CARE DEPARTMENT For general enquiries concerning your Tricity Bendix appliance, or further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows: Customer Care Department...

  • Page 30: Customer Service Centres

    To contact your local Service Force Centre telephone CHANNEL ISLANDS Guernsey Electricity PO Box 4 Vale , Guernsey Channel Islands GY1 3AD Jersey Electricity Company Haut de L'orme Rue De Haut De L'orme ORKNEY Trinity Jersey Channel Islands JE3 5FG PERTH SCOTLAND (OWN SALES)
  • Page 31 08705 929 929 To contact your local Service Force Centre telephone MIDLANDS LONDON & EAST ANGLIA SOUTH EAST TONBRIDGE Unit 30 Deacon Trading Estate Morley Road & 4 Tonbridge TN9 1RA SOUTH WEST &...

  • Page 32: Guarantee Conditions

    Standard guarantee conditions We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
  • Page 33 N O T E S...
  • Page 34 N O T E S SI 453 - 311395512...
  • Page 35 N O T E S...

  • Page 36: Important Notice

    In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice. This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed. TRICITY BENDIX 55 - 77 HIGH STREET, SLOUGH, BERKSHIRE,...
