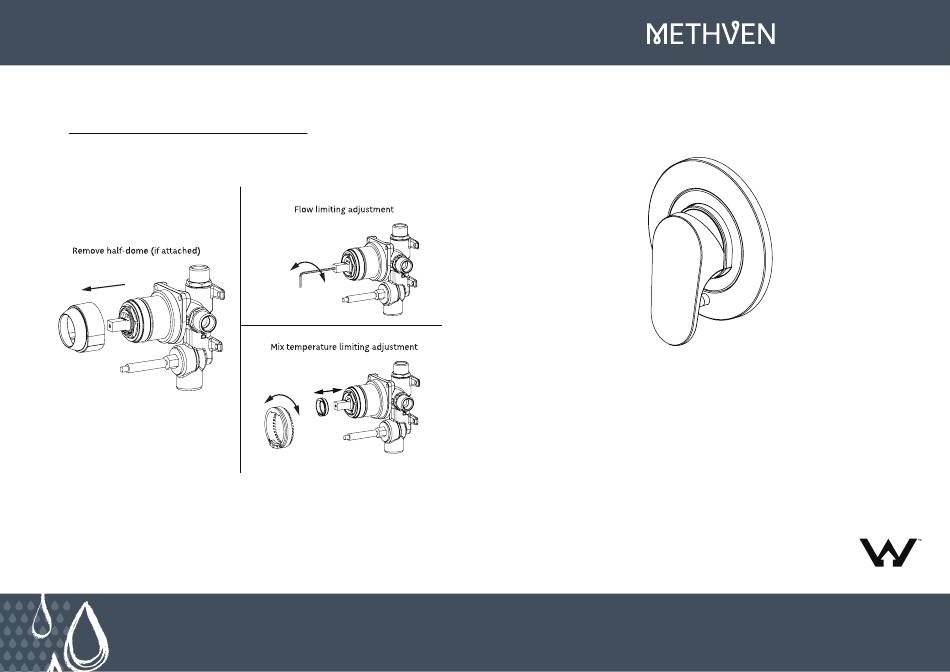

Ceramic Cartridge Adjustment
Do not remove the ceramic cartridge from the body assembly while carrying out the
following adjustments. Note, the cartridge is factory set for maximum temperature.
"In situ" testing
Do not hydrostatic test the installation with this mixer installed. Damage to the
ceramic cartridge may occur.
JULY 2011
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
-
+
1.5mm Hex key
-
+
MA017157

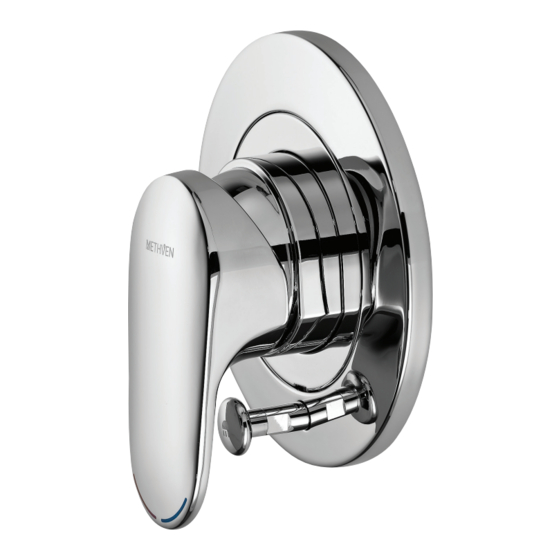

Kaha Shower Mixer with Diverter
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent
foreign particles damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
Methven recommends a licensed plumber carry out all installations in compliance
with the requirements of AS/NZS 3500. This product complies with AS/NZS 3718
regulations.
www.methven.com
01-7157
WMKA21005
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for METHVEN Kaha 01-7157
Summary of Contents for METHVEN Kaha 01-7157
- Page 1 Do not hydrostatic test the installation with this mixer installed. Damage to the ceramic cartridge may occur. Methven recommends a licensed plumber carry out all installations in compliance with the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
- Page 2 Technical Specifications Remove Cover until Step 4 Ø Inlet Connections: All 1/2" BSP Operating Pressure: 150kPa - 500kPa Operating Temperatures: Recommended hot water supply 50°C, maximum 70°C. AS 3500 requires all hot water supplies to any sanitary fitting to be 75 ±...
