Page 7

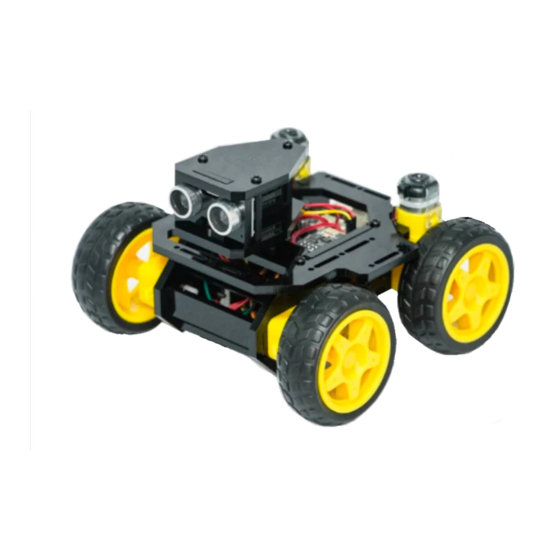

Car Assembly. Take out the car acr ylic plates, peel off the films. Take out the plates we will use. Peel off the protective film on the two sides of the plates.
Page 8
Motor Part assembly. Take out two sets of motors (four motors one set), pay attention not to break the wire connected to the motor, handle gently. First we take out the materials we need according to the picture on the left: 1x set of motors 1x A01 acr ylic plate 4x silver M3*30 screw...
Page 9
Next pass two M3*30 screws through the other motor. Note: The M3*30 screw cap is on the protruding face. Use the cross wrench to fix two M3 nuts to two M3*30 screws.Note that the screw cannot be tightened too much. On the left is an installation drawings of one assembled set of motor.
Page 10
Tracking Module assembly. Materials needed to assemble the tracking module: 1x A02 acr ylic plate 1x 3-CH Tracking Module 2x black M2*10 screws 2x black M2 nut 1x 5Pin wire Attach the 3-CH Tracking Module to A02 as shown in the figure. Note that the direction of the 5Pin wire interface is to the right.
Page 11
Ws2812 RGB LED Assembly. Materials needed to assemble the WS2812 RGB LED: 1x A03 acr ylic plate 1x 3CH WS2812 RGB LED 2x black M2*10 screws 2x black M2 nut 1x 3Pin wire Attach the WS2812 to the acr ylic plate. Pass two black M2*10 screws through the acr ylic plate and the WS2812 module, and screw two black M2 nuts into the...
Page 12
Pay attention to the position of the copper standoffs. If the copper standoffs are mounted on the other side of the acr ylic plate, the subsequent installation of Adeept Smar t Hub will fail. Materials needed to assemble the batter y holder :...
Page 13
Materials needed to assemble the Adeept Smart Hub: 1x Adeept Smart Hub 2x silver M2.5 nut 2x M2.5*6+6 copper standoff Fix the copper standoff in these two positioning holes.
Page 14
1x A04 acr ylic plate 2x silver M2.5 nut 2x silver M2.5*8 screws 1x Adeept Smart Hub Pass the M2.5*8 screw through the A04 acr ylic plate. Use the small screws to screw two M2.5 screws to two M2.5*6+6 copper standoffs.
Page 15
Motor And Tracking Module Assembly. Materials needed to assemble the motor and tracking module: 1x A01 acr ylic plate 1x black M3*12 screw 1x black M3 nut 1x A02 acr ylic plate Use the small screwdriver to place the black M3 nut into the position as shown.
Page 16
Fix The Base. Materials needed to fix the base: 1x A01 and A02 acr ylic plate A 0 4 a c r y l i c p l a t e b l a c k M 3 * 1 2 s c r e w 2x black M3 nut Use the small screwdriver to place the two black M3...
Page 17
Car Base Assembly. Materials needed to assemble the car base: 1x A01 and A04 base 1x A02 acr ylic plate 1x A05 acr ylic plate 1x A06 acr ylic plate 1x A01 acr ylic plate Place the A06 acr ylic plate on the A01 acr ylic plate as shown.
Page 18
Use the small screwdriver to place the two black M3 nuts in the position as shown. Fix the A01 acr ylic plate to the car base. Pass two black M3*12 screws through the A01 acr ylic plate and tighten the M3*12 screws with the large screwdriver.
Page 19
A07 acr ylic plate and screw it in again. Connect the 4Pin wire with ultrasonic module. Materials needed to assemble the ser vo module: 1x Adeept AD002 Ser vo 2x black M2*10 screw 2x black M2 nut 1x A08 acr ylic plate...
Page 20
Screw two black M2 nuts onto the two M2*10 screws and tighten the M2*10 screws with the small screwdriver. Materials needed to assemble the head of the car : 1x A09 acr ylic plate 1x ultrasonic module 1x Ad002 ser vo module 6x black M3*12 screw 3x black M3*25 nylon column Screw three black M3*12 screws through...
Page 21
As shown in the figure, pass three black M3*12 screws through the A09 acr ylic plate and tighten them with them large screwdriver. Materials needed to assemble the upper part of the car: 1x A10 acr ylic plate 1x ser vo with rocker and screw 1x ultrasonic car head Attach the short rocker arm to the ser vo at any angle and then...
Page 22
Take out the long rocker arm and 2 silver self-tapping screws in the ser vo package and put 2 silver self-tapping screws into the hole of A10 acr ylic as shown. Attach the rocker arm to the other side of the A10 acr ylic plate and s crew 2 self-tapping screws into the rocker arm with the small screwdriver.
Page 23
Install the ser vo on A10 acr ylic plate at the angle as shown. Use the small screwdriver to screw the silver M2.5*4 screw into the ser vo. On the right is the effect diagram after assembling. Connect the motor wires to motor A and motor B as shown.
Page 24
Connect the wire of the tracking module to the "tracking" interface of the control board as shown. Connect the wire of the 18650 batter y holder to the "Vin" interface of the control board. Connect the ser vo wire to the “PWM6|D12” interface on the control board as shown.
Page 25
Connect the Trig pin of the ultrasonic module to the D10 interface on the control board as shown. Connect the Echo pin of the ultrasonic module to the D11 interface on the control board as shown. Connect the ESP8266 to the ESP8266 interface on the control board.
Page 26
Install the A10 acr ylic plate on the car and use the large screwdriver to screw the four black M3*12 screws into the A10 acr ylic plate. On the right is the effect diagram of screwing in. We can check if the car head is installed correctly, as shown in the figure below, it can be rotated to the following angle.
Page 27
Arduino and Processing Environment Installation Let's take the Windows 64-bit system as an example (the Arduino IDE also supports MAC and Linux). First open the browser and enter the URL https://www.arduino.cc/en/Main/Software and you will see the following interface. Click"JUST DOWNLOAD" Run the downloaded file.
Page 28
Then enter the installation process, please wait. If the option pops up during the installation process, please select "Install". When the installation is complete, click "Close". After the installation is complete, you can see the icon of the Arduino IDE on your computer desktop. Click to run Arduino, the following interface will appear.
Page 29
Next we need to install the driver program of the Adeept Smart Hub. We provide driver programs for 4 systems, Windows, Android, Linux and Mac in the package. We need to select the corresponding driver installation according to the system.
Page 30
We first install the Adafruit_NeoPixel.ZIP file, open the Arduino IDE, click on "Sketch"->" Include Librar y"->"Add.ZIP Librar y" In the pop-up dialog box, find out the Adafruit_NeoPixel file we provided, click "Open" The Arduino IDE will prompt for this information after a successful installation.
Page 31
“Upload” button on the Adeept Smart Hub to "0". C l i c k " To o l s " - > " B oa rd : A rd u i n o / Genuino Uno"->"Arduino/Genuino Uno"...
Page 32
Click the "Upload" button on the Arduino IDE. After the program is successfully uploaded, switch the “ Upload” button on the Adeept Smart Hub to “ 1”. Unplug the USB cable, then install two 18650 batteries, switch on, and wait for the WS2812 indicator light to fully illuminate and then off.
Page 33
Download address of Android App: https://play.google.com/store/apps/details?id=com.adeept.lenovo001.smartcar Or search for "Adeept Remote Control" on Google play. After installing the app switch on the car remember to switch to 1 on the control board Wait for the car Wi Fi to start...
Page 34
Commands of the remote control buttons: Press button 1, the app sends out “ for wardStart” . Release button 1, the app sends out “ for wardStop”. Press button 2, the app sends out “ leftStart” . Release button 2, the app sends out “ leftStop” . Press button 3, the app sends out “...
Page 35
Note: When we use Processing to control the car, we need our computer to have WIFI function. The computer WiFi directly connect to the car WiFi to communicate, which does not pass through the router.
Page 36
After this interface appears, we need to open the Processing code we provided in the Processing IDE. In this interface, we need to turn on the computer WiFi function to connect to the car WiFi.
Page 37
Click the "run" button of the Processing IDE. If an error occurs, it should be that the Processing is missing the corresponding librar y file. Then follow the prompts to install it online. Control the button Control the working of the car direction. mode of the car.
