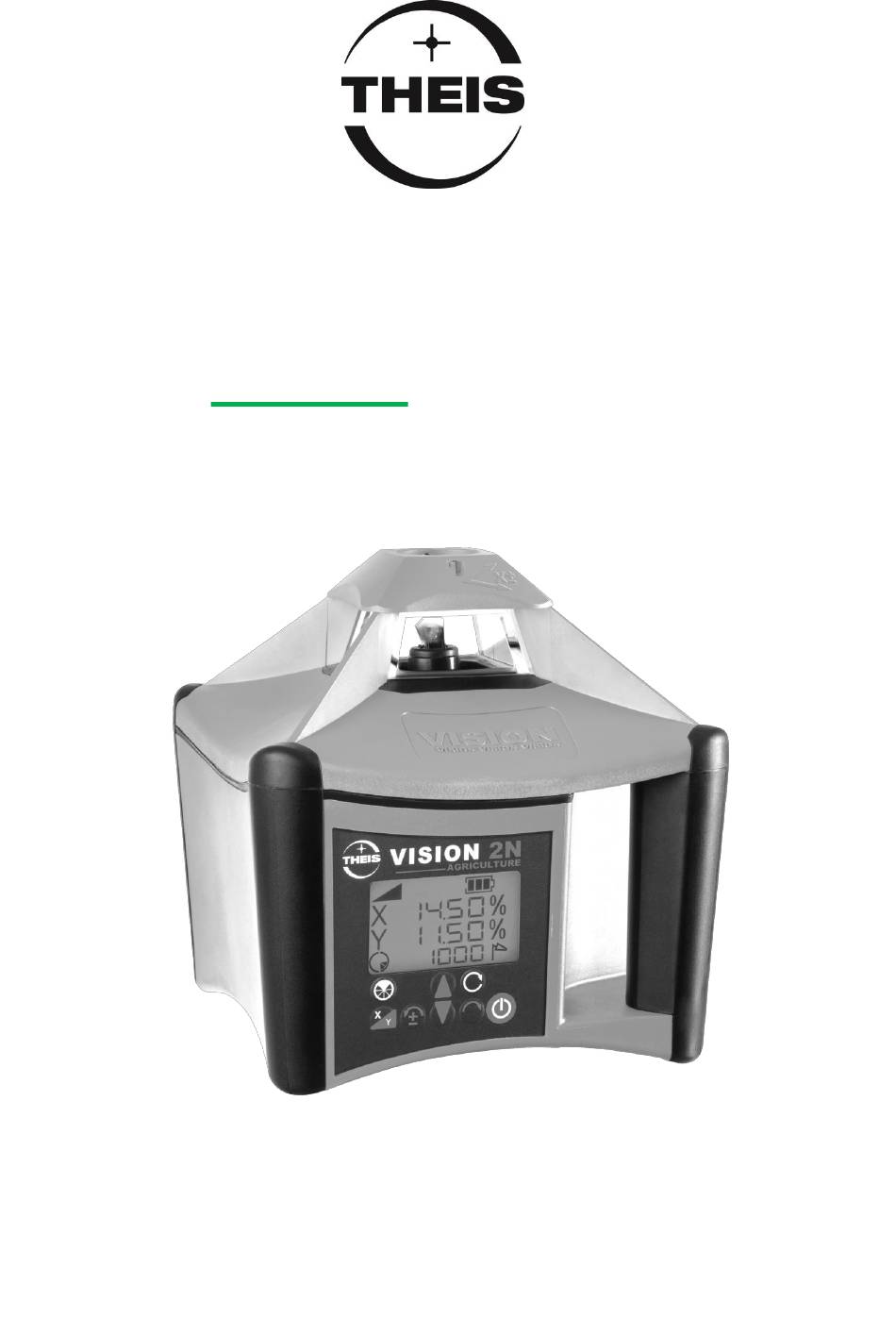

- Page 1 VISION AGRICULTURE Instruction manual...
-
Page 2: Table Of Contents
Contents 1. Keyboard /Display ..............4 2. Horizontal Operation ..............5 3. Rotation speed ................5 4. Slope ..................5 5. Mask Mode .................7 6. TILT Function ................7 7. Setting of re-adjustment in levelling-and grade mode (Windy) ...7 8. Power Supply of Laser ...............8 9. - Page 3 Introduction VISION AGRICULTURE ... for the construction professional. The rotation laser THEIS VISION 2N AGRICULTURE sets new standards in the area of fully automated professional lasers. It is the result of many years of experience and innovative technology. The high-quality construction laser is distinguished by its rugged- ness and high precision –...
-
Page 4: Keyboard /Display
Keyboard /Display Laser exit rotation Productinformation Battery compartment Via QR-Code on re- verse, e.g. Instruction Charging socket manual Levelling End stop, Battery Slope display Position change display X/Y axis slope Mask Disturbance Speed mode Counter clockwise Clockwise Slope Slope On/Off rotation step mode, rotation step mode, X/Y axis... -
Page 5: Horizontal Operation
Horizontal Operation Align the tripod and screw the VISION tight using the tripod screw. The precision of alignment affects the size of the slope range. Use the On/Off switch to switch on the device. The levelling indicator flashes on the lit display. If the tripod head is sloping by more than 5°, this is indicated by the laser beam flashing quickly and the alarm symbol being displayed. - Page 6 1st key press: Slope is activated. The stored slope settings of the last use are displayed and the automatically approached. 2nd key press: X, slope symbol and one digit flashes on the display. Use the arrow keys to set the slope. The blinking digit can be changed.
-
Page 7: Mask Mode
If you press the slope key again, you can start grading again, the device carries out levelling again and approaches the stored slope settings again. Important: The laser's mounting position and possibly also the elevation and direction may, however, have changed. This means that to be on the safe side you should switch the device off and back on again and adjust it. -
Page 8: Power Supply Of Laser
When the battery is fully charged, all the bars are shown. Charge the battery at room temperature using only the THEIS standard mains unit connected to the charger socket below the laser. Charging at temperatures below +5°C can lead to defects in the battery. -
Page 9: Radio Remote Control Fb-V (Option)
Radio Remote Control FB-V (Option) The wireless remote control is designed on a bidirectional basis. All the information that is shown on the laser's display can also be seen on the lit-up display of the remote control. The key symbols on the operator panel correspond to the keys on the laser keypad. -
Page 10: Calibration Check
is exceeded. Power is supplied by two alkaline micro AAA batteries. The service life is approximately 60 hours. The battery symbol shows the status of the FB - V's batteries. To change the batteries, open the cover on the back and replace the batteries. - Page 11 Select channel CH 1 – 16. (AUTO: Reserved for auto- matic selection) Wireless off: OFF Save and next menu item % / ‰ - setting % setting (% setting is default) ‰ - setting Save and next menu item Select start rotation speed Select 0, 300, 600 or 1000 rpm Save and next menu item Lcdb...
- Page 12 Information and settings FB – V Press buttons 144522 Serialnumber e.g. Next menu item Program Version build 089 Next menu item CH5 EU Automatic channel selection or select manual. e.g. Select channel 1 - 16 and confirm (Channel CH Auto is for automatic selection.) Save and next menu item 2.52 Battery voltage FB - V...
-
Page 13: Delivery Contents
1 year) from the date of sale (date of invoice). You must return the device or its affected components for repair or replacement to THEIS immediately after you establish the defect. No guarantee claim or claim free elimination of faults due to incorrect handling or storage can be accepted;... -
Page 14: Brief Instructions
Brief Instructions Switch on/off Manual mode (press for 5 sec.) Speed On/ Off 5 steps: 0 - 1000 Traversing the laser beam (step mode) Slope Display of last input Input X Input Y Confirmation Change sign and digits Mask mode Activation of 90 to 270°: Deactivation Positioning the mask area... -
Page 15: Technical Data
Technical Data Laser Laser Class / High Power Wavelength 635 -660nm Output Power / High Power < 5mW Range Up to 1000 m Self-levelling range ± 5° Levelling precision ± 1,5 mm / 30 m 3,4,5 Grade accuracy 0,025 % to 5% Grade Slope X,Y ±... -
Page 16: Supplier Declaration/Safety Information
There are no parts to maintain or adjust inside the device. Servicing may only be carried out by authorized persons. Safety regulations for THEIS Class 3R HIGH-POWER LASER DEVICES Users must observe BGVB2 (Accident Prevention Regulations for Laser Radiation in Germany). - Page 17 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 18: Disposal
EU countries only: In accordance with Directive 2006/66EC, non-serviceable THEIS laser devices or spent rechargeable batteries must be recycled or can be returned directly to: THEIS FEINWERKTECHNIK GMBH... - Page 20 Laser warning label for VISION High Power Subject to changes THEIS FEINWERKTECHNIK GMBH 35236 Breidenbach-Wolzhausen· Germany...
